6.Maintenance and Check
(1) After installation, repair or disassembly, connect compressed air and conduct tests
to confirm appropriate function and leakage.
Do not use the positioner when noise from the bleeder sounds louder compared with the
initial state, or when it does not operate normally. If these occur, check immediately if
assembled and mounted correctly.
(1) Check if supply air is clean or not. Inspect compressed air cleaning system periodically and
keep condition to be able to always get clean air so that dust, oil and humidity which cause
malfunction and failure wouldn't include into the equipment.
(2) If handled improperly, compressed air can be dangerous. Maintenance and replacement of
unit parts should be performed only by trained and experienced personnel for instrumentation
equipment as well as following the product specifications.
(3)
Perform an annual inspection of the positioner.
Zero point and span may have deviated. During regular maintenance, check for the following
and replace any components as necessary.
When an excessively worn diaphragm, O-ring or other packing is found, or any unit has
been damaged, replace with new ones. Treatment at an early stage is especially
important if the positioner is used in a place of severe environments.
(4) Before removing the positioner for maintenance or replacing unit parts after installation, make
sure the supply pressure is shut off and all residual air pressure is released from piping.
(5) When the fixed orifice is clogged with carbon particles or others, remove the pilot valve
Auto/Manual changeover screw (built-in restrictor) and clean it by inserting a ø0.2 wire into
the aperture.
(6) It is recommended to replace the pilot valve unit every 3 years.
(7)
Check air leak from piping which compressed air flows. Air leak from air piping could
deteriorate characteristics.
Air is normally discharged from a bleed port, but this is a necessary air consumption based
on the construction of the positioner, and is not an abnormality if the air consumption is
within the specified range.
(8) When checking, remove the transmission lever and
apply grease.
If the sliding parts are worn out or damaged, replace
the parts.
Puroduct No. : 21050-219
Puroduct Name. : Grease pack
Warning
!
Caution
!
- 18 -

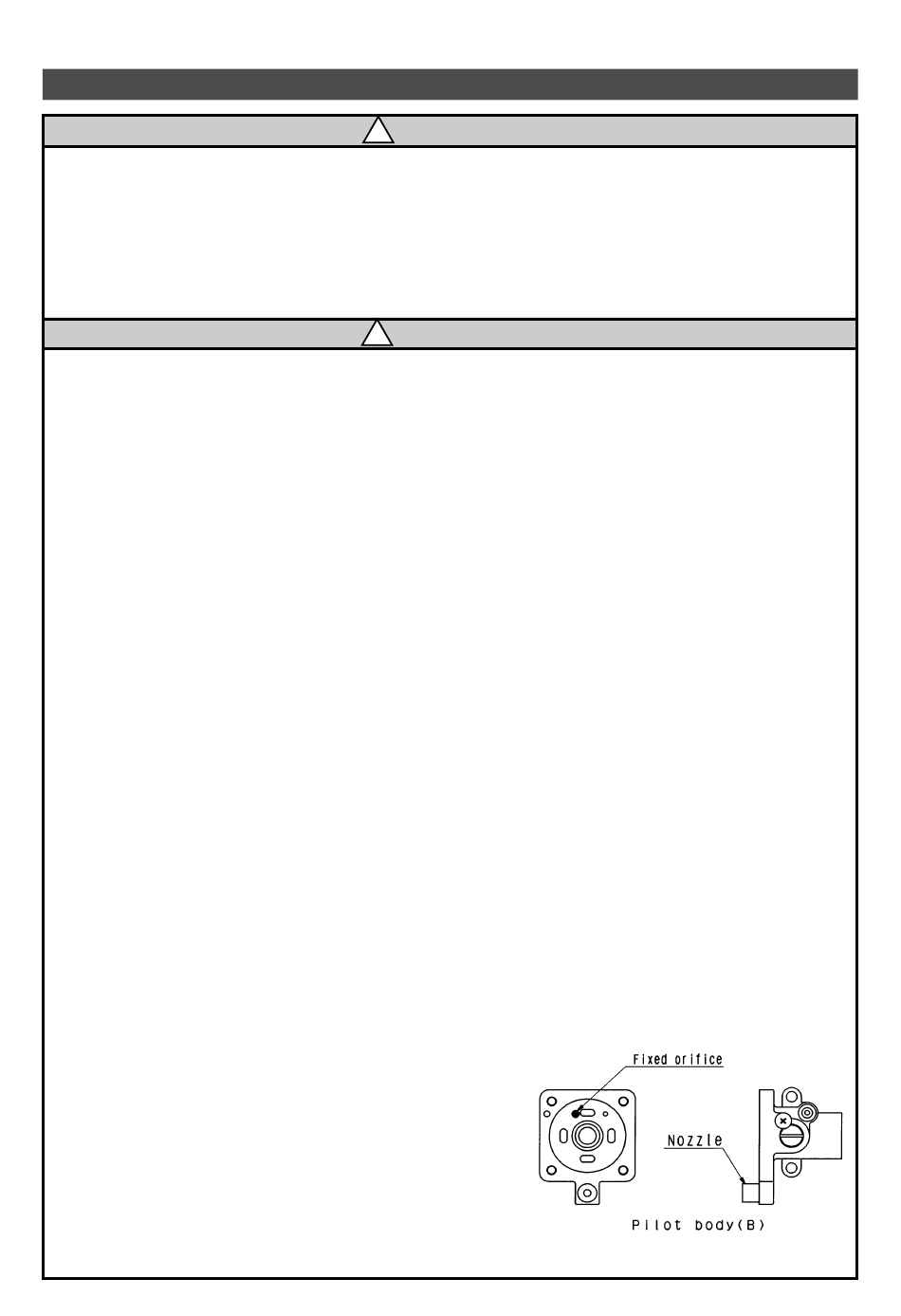

Fig.20 Fixed orifice position
