3 – 2 - 2 Feedback shaft connecting

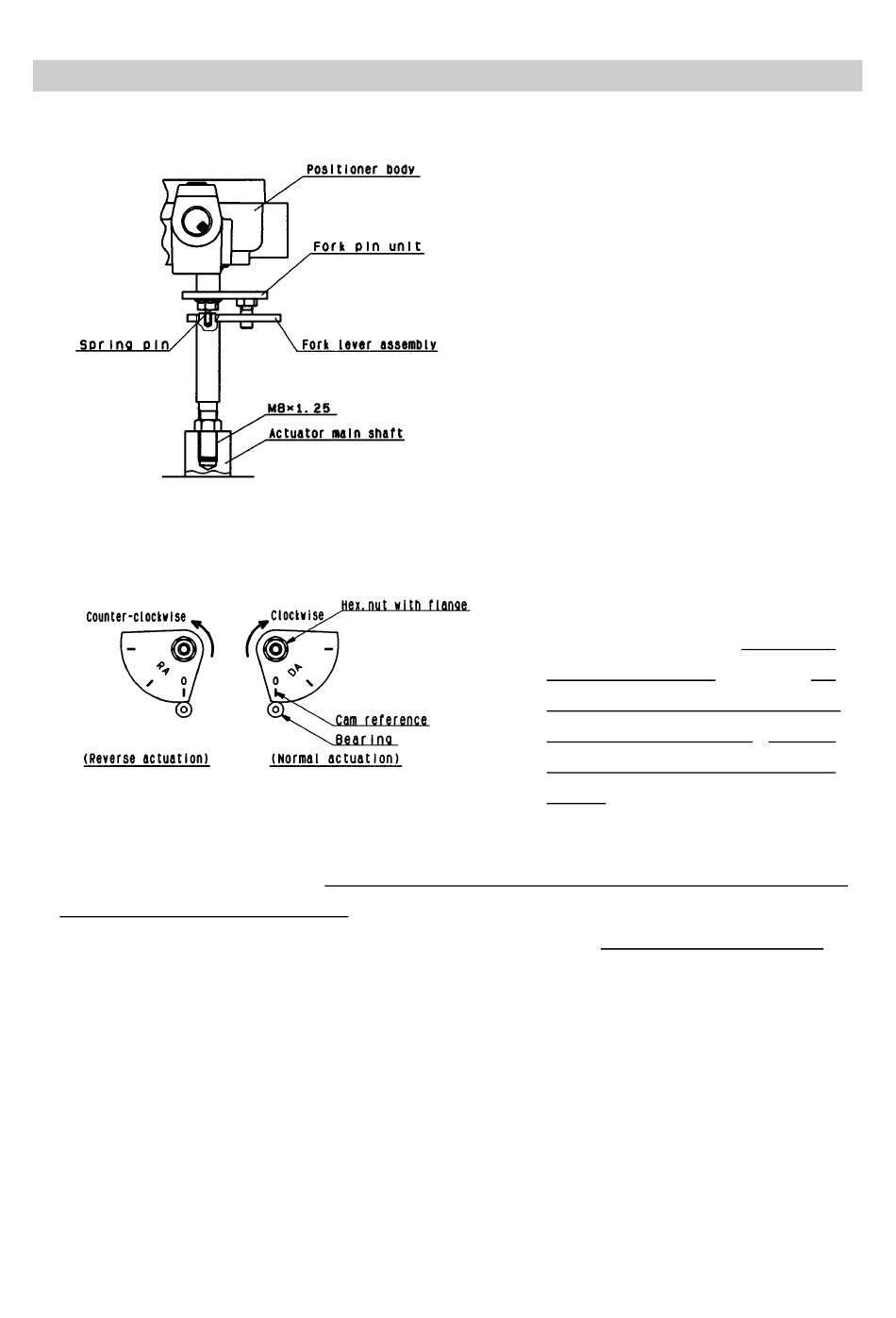

Fig.15 Example of attaching using fork lever type joint
3 - 2 - 3 Cam attaching procedure
Fig.16 Mounting of cam
(2) After loosening hexagonal nut with flange, set the actuator in starting condition. Afterwards,
mount the cam making sure that the connecting point of cam and the bearing of feedback arm unit
meet the zero-point of cam properly.
(3) Since mounting of cam is dangerous, this must be performed without supplying pressure.
(4) Cam is tightened to the shaft temporarily when it is shipped from SMC. When it is operated,
rock it firmly with lock nut.
(Tightening torque 3.6 to 4.1Nm)
(1) Install positioner feedback shaft and
rotary actuator mian axis so that
they are concentric. ( so that spring
pin of feedback shaft end can enter
the end of fork lever assembly axis.)
(2) Product for IP310 serration type is
able to be supplied as a special
order.
(1) See actuator from the side of
positioner front cover when input
pressure
actuator main axis rounds clockwise,
use DA surface of cam. When it
rounds counterclockwise, use RA
surface. Mount the cam properly to
feedback shaft centering location.
- 12 -
increases. When the
B
