3-1-2 Connection with external feed back lever
3 - 2 Type IP5100
For positioner and rotary actuator, brackets should be manufactured according to the
installation method. The unit should be attached using bolts firmly fixed through mouting holes
on the side or back of the positioner.
For side installation, "E" mark mounting screw is interchangeable for IP610 and IP8100. Fork
lever assembly M type is usable since it is interchangeable for serration fitting.
3-2-1 Installing actuator

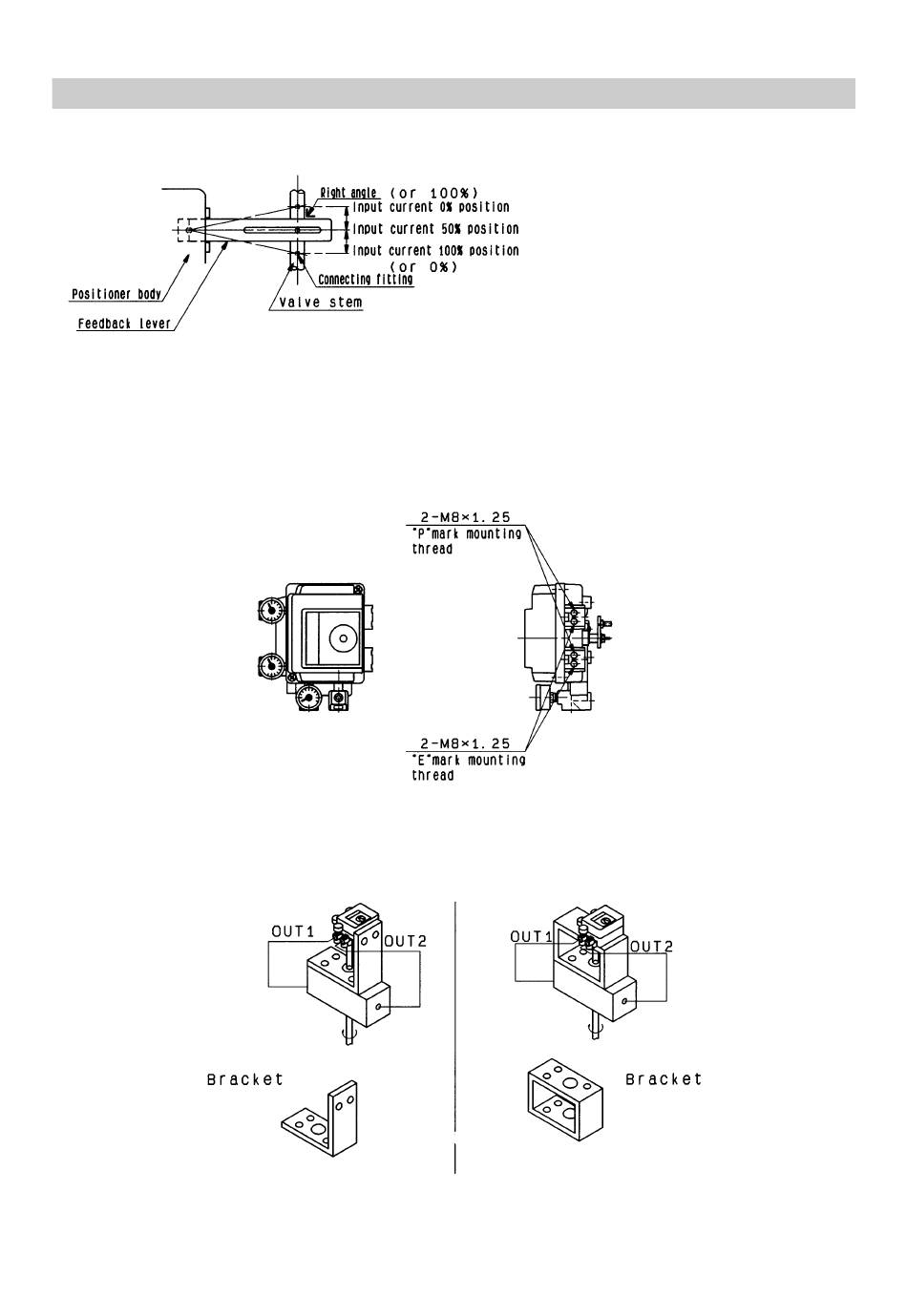

Fig.13 Mounting by positioner side screw
Install using screw hole of a side of
positioner and the screw hole at actuator.
Fig.11
Fig.12 Mounting position of "P" mark & "E" mark
(1) Install the valve stem and
feedback lever so that they cross at
right angle when input signal is
50%.
(2) Fullscalse should be at least 10%
Fig.14 Mounting by positioner back screw
Install using screw hole at the positioner
back and the screw hole at actuator top.
- 11 -
and at most 30%
B
