3 - 2 - 4 Mounting procedure of opening degree indication plate
(1) Lock the cam and then adjust the zero-point and span (refer to Chapter 5).Then, fix the opening
degree indication plate to the shaft using the M3 screw. At that moment, the end of the arrow of
opening degree indication plate is to be pointing the center of the bearing as the figure 17. Please
refer (Ⅰ) and (Ⅱ) in table 2. ( for starting at the 0 position in the opening degree indication window)

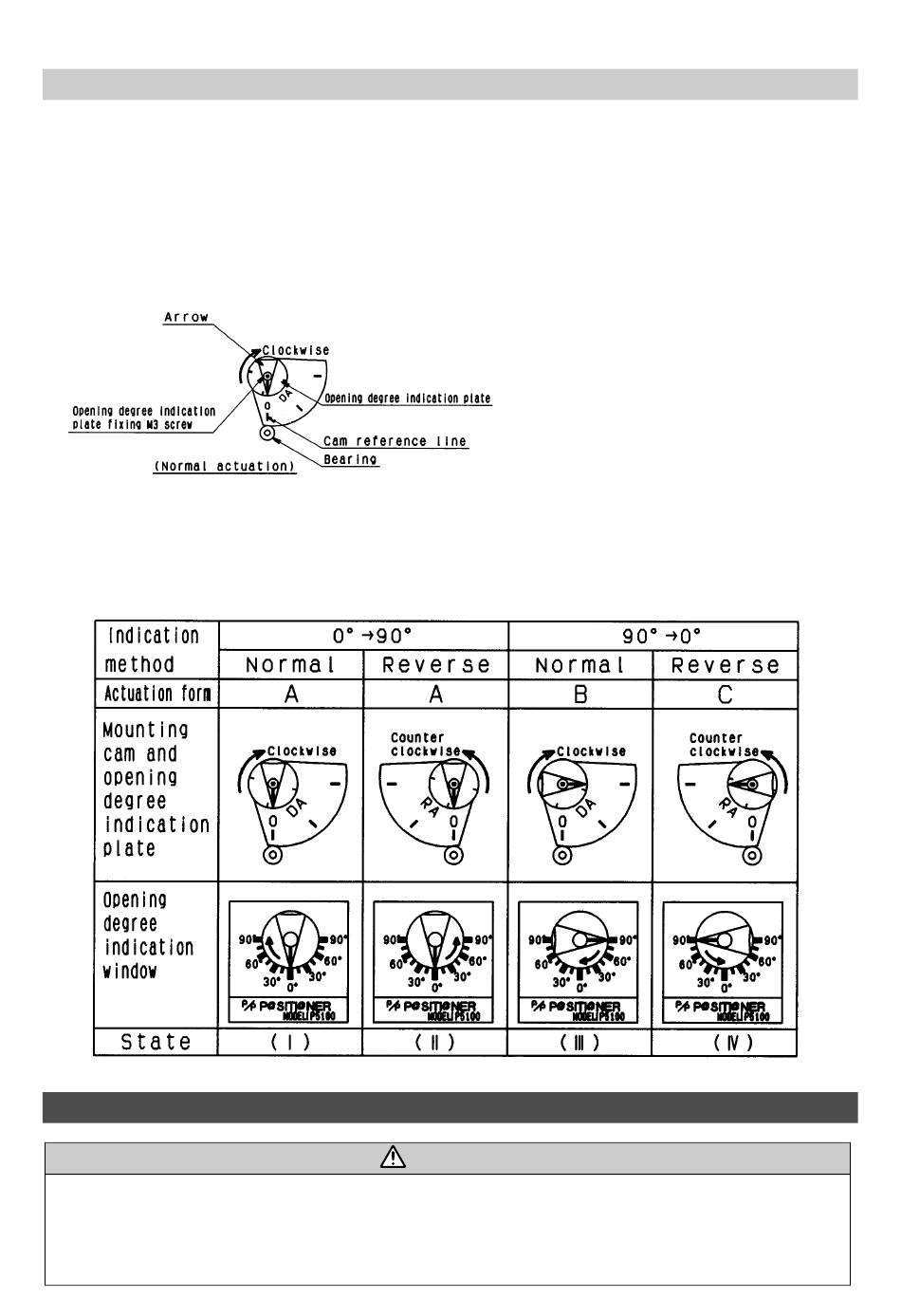

Fig.17 Installing example of opening degree indication plate

4.Piping and Attaching of Internal Feed Back Unit

Prior to piping, flush enough and remove chip, cutting oil and dust in tube so that obstruction
wouldn't intrude into positioner.
Table 2 Attaching of opening degree indication plate
(2) Mounting conditions of panel are
shown in (Ⅲ) and (Ⅳ) in table 2,
when the panel is displayed in
contrary way to (1).( for starting at the
go degree position in the opening
degree indication window)
panel should be used as a measure
of valve lift.
Caution
- 13 -
This
