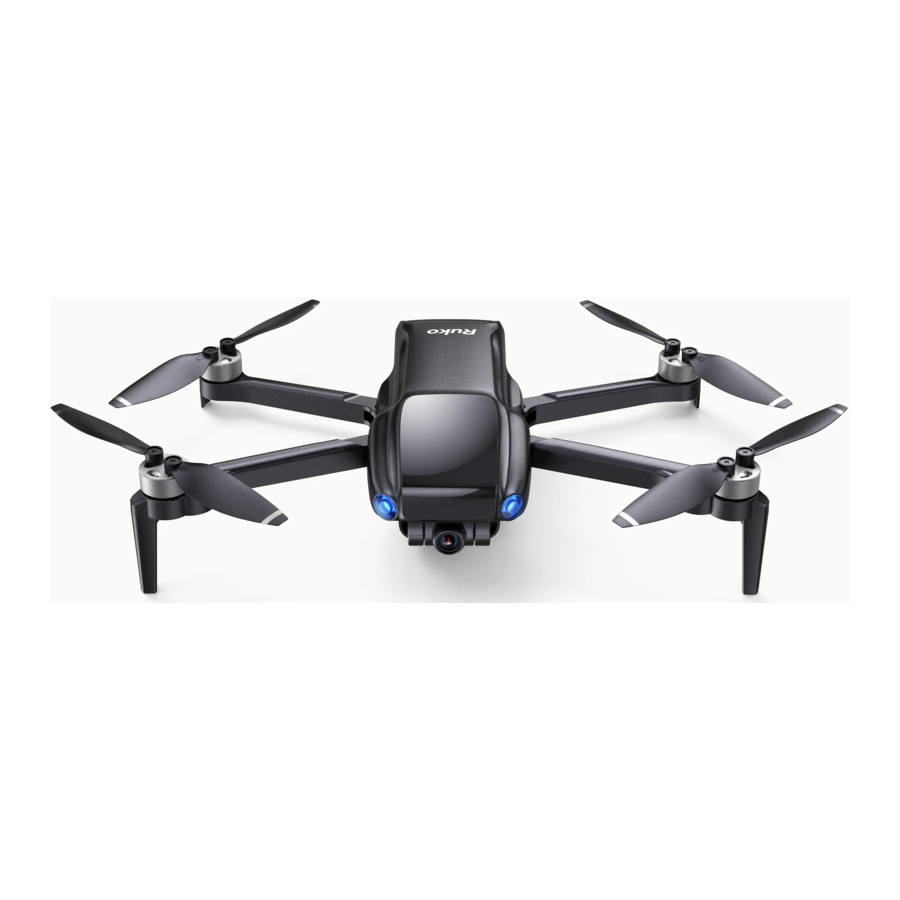

Ruko U11MINI - Drone Quick Guide

Download App

Ruko Mini

Charge the Batteries

Unfold the 4 Arms of the Aircraft

Unfold the Remote Controller

Select an Open Flying Area

Suggest to fly higher than the surrounding objects.

Pair the Remote Controller with the Aircraft

1. Short press and then long press the button until the aircraft plays start-up sound.

2. Press to power on the remote controller, the indicator light will flash.

3. Push up the left joystick and the remote controller makes a "beep" sound.

4. Push down the left joystick and the remote controller makes a "beep" sound again.


Once successfully paired, the remote controller's indicator light will stay on.

Connect to Wi-Fi

Connect the mobile phone to the aircraft's Wi-Fi.

Enter the app operation interface, and tap the "Control" icon.

Calibrate the Compass

• Rotate the aircraft horizontally 360° until you hear a "beep" sound. No fixed direction of rotation required ( About 3 turns )

• Rotate the aircraft vertically 360° until you hear a "beep" sound. No fixed direction of rotation required ( About 3 turns )


Please keep the aircraft flat when rotating horizontally, otherwise it will take more turns to complete the calibration.

Calibrate the Gyroscope

• Click in the app.


Start the Motors

• Push up the left joystick.


Take off

• Push up the left joystick or press the "Auto Takeoff" button.


Landing

NEW TO FLYING DRONES?

Check the Flight Guide in the App

Search "Ruko F11 GIM 2 Quick Start" on YouTube for First Flight

Scan QR Code for More Tech and Video Support

Common Problems and Solutions

Safety at a Glance

The Ruko F11MINI is NOT a toy and is NOT suitable for people under the age of 14.

Legend

• The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:

  Recommend

  Warning

  Hints & Tips

  Reference

• This product is NOT a toy and is NOT suitable for people under the age of 14. Keep the aircraft out of the reach of children and exercise caution when operating this aircraft in the presence of children.
• This product is a flying camera that offers easy flight when in good working order as set forth below. Read the materials associated with the product before using for the first time. These documents are included in the product package.
• Inappropriate use of the product could result in personal injury or property damage.
• The information in this document affects your safety and your legal rights and responsibilities. Read this entire document carefully to ensure proper configuration before use. Fail to read and follow the instructions and warnings in this document may result in product loss, serious injury to you, or damage to your aircraft.
• By using this product, you hereby signify that you have read this disclaimer carefully and that you understand and agree to abide by the terms and conditions herein. Please be sure to strictly abide by the specification requirements and safety guidelines stated in this document.
• You agree to use this product only for purposes that are proper and in accordance with local regulations, terms and all applicable polices and guidelines Ruko may make available.
• Any personal injury property damage, legal disputes and all other adverse events caused by the violation of the safety instructions or due to any other factor, WILL NOT be Ruko's Responsibility.
• Ruko reserves the right to update this disclaimer and safety guide.

Intelligent Flight Battery Safety Guide

Charging Precautions

• It is recommended to use USB 5V/2A or 5V/3A wall chargers. Do not use charger with more than 5V/3A, otherwise the battery may be damaged, reduce performance or cause a fire.damaged, reduce performance and cause a fire.
• It is forbidden to overcharge the Intelligent Flight Battery, please remove charging cable in time after fully charged to avoid damage due to overcharge.
• It is strictly forbidden to use batteries or charging cables that are not officially provided by Ruko. We are not responsible for any damage caused by charging cables that are not from Ruko.
• DO NOT charge the Intelligent Flight Battery immediately after the flight as the temperature may be too high. Wait until it cools down to room temperature before charging again, Due to the battery current output, slight heating is normal while flying.


Battery Safety and Maintenance Precautions

• Keep the product in a cool environment, avoid high temperature, exposure to the sun, water suction, pressing and descent from high altitude. Do not place the model in a high temperature, humid and direct sunlight environment.

• It is recommended to charge and discharge the battery once a month, do not store it fully charged, keep 50%-60% of the electricity, and stored in a dry and cool environment.

• Remove the USB charger after the battery is fully charged.
• Fully charge the battery at least once per month to keep it healthy. It is forbidden to disassemble or pierce the battery with sharp objects in any way, otherwise, battery leakage will cause fire or even explosion.
• Do not touch the electrolyte in the damaged battery, otherwise it might harm your skin or eyes.
• Be sure to keep away from fire before discharging.
• Store the battery in a dry and ventilated place.
• Keep the battery out of the reach of children and animals.

Flight Environment Requirements

• Do not fly the aircraft in bad weather.
• Only fly in a mild weather condition where the temperature is between 10° and 40°C (50°F and 104°F).
• United States: Only fly in authorized areas. To learn more about aircraft requirements, please visit the Federal Aviation Administration's aircraft page:https://www.faa.gov/

Flight Operation Guidelines

Pre-Flight Checklist

• Ensure that the Intelligent Flight Battery, remote controller, and mobile phone are fully charged.
• Make sure that the battery compartment cover is fastened firmly and the Intelligent Flight Battery is installed firmly.
• Ensure that the arms of the aircraft are fully extended.
• Ensure that the camera cover was moved before turning on the aircraft.
• Please make sure that nothing obstructs the motors.
• Please make sure the camera lens and sensor are clean and without stains.
• Ensure that the propeller is free from damage, aging, deformation, no foreign matter entanglement, and firm installation.
• Make sure to complete the pre-flight checklist before flying.
• Know well the flight mode you select and all safety features and warnings.

Operation Safety Guidelines

1. Please unfold the arms of the aircraft and turn on the power before flight.
2. Please pay attention to the direction of the aircraft when flying. The camera direction is the forward of the aircraft.
3. Do not answer calls, text messages, or do anything that may distract you from operating your mobile phone to control the aircraft during the flight.
4. Make sure that you are not under the influence of alcohol, drugs or anesthesia, nor are you experiencing dizziness, fatigue, nausea, or any other conditions, which may impair your ability to operate the aircraft safely.
5. It is important to set an appropriate RTH altitude before each flight. Make sure your phone has permission to access the Wi-Fi "Ruko_F11_Mini_5G_******"and connect successfully.
6. Make sure to fly outdoors in an environment with strong GPS signals.
7. Please do not long-press the button on the remote controller when flying, otherwise GPS Mode will be turned off.

8. After turning off the GPS, the aircraft cannot realize one-botton return to home, low power return, or out of control.
9. After turning off the GPS, GPS follow, surround mode, route planning, and aircraft finding functions cannot be realized.
10. Do the compass and gyroscope calibration each time before flying, or it maybe can't work normally.
11. Pay attention to control the aircraft at all times during flight. Don't just rely on Ruko Mini APP.
12. GPS flight assistance features and app are meant to assist the pilot, not replace their control of the aircraft. When returning, pay attention to the flight, operate the aircraft carefully to avoid hitting obstacles.

Problems You May Encounter

Wi-Fi Guidelines

• The operating system required for the phone must be iOS 9.0 or higher/Android 5.0 or above. The aircraft will be compatible with WLAN-capable phones that broadcast dual-band Wi-Fi (2.4GHz and 5.8GHz).

For iOS System:

• Connect the Wi-Fi " Ruko_F11_Mini_5G_******" to your mobile phone.


For Android System:

• Please wait about 10-30 seconds after connecting the aircraft's Wi-Fi "Ruko_F11_Mini_5G_******".Please pay attention to whether there is an internet settings to pop up, please keep connected, otherwise there will be no pictures after entering the app.
• Please turn on airplane mode on your phone, and open the Wi-Fi list to reconnect if you can't find the Wi-Fi.

Turn off the VPN because it will affect Wi-Fi connection.

Remote Controller Guidelines

• After fully charged, if the app shows that the transmitter battery is low, please try to pair the remote controller with the aircraft again, then connect to Wi-Fi and open the app to check it.
• Please charge the remote controller in time when the battery is low to avoid automatic shutdown of the remote controller during flight.
• Please turn off the remote controller in time when it is not in use to avoid running out of battery power.

Camera Guidelines

• Do not place the aircraft on rough ground, please place it horizontally and make sure there is enough clearance under the camera, therwise the camera will be stuck.
• Please take off the camera cover before flight.
