Quick start
1，Connect a 7-28V or AC 100-240V power supply or
Battery/Power Bank to the input port on the back of the
M6AC.
2，The display shows the boot logo and stays for 2
seconds.
3，A welcome sound (voice pack dependent) is played
simultaneously.

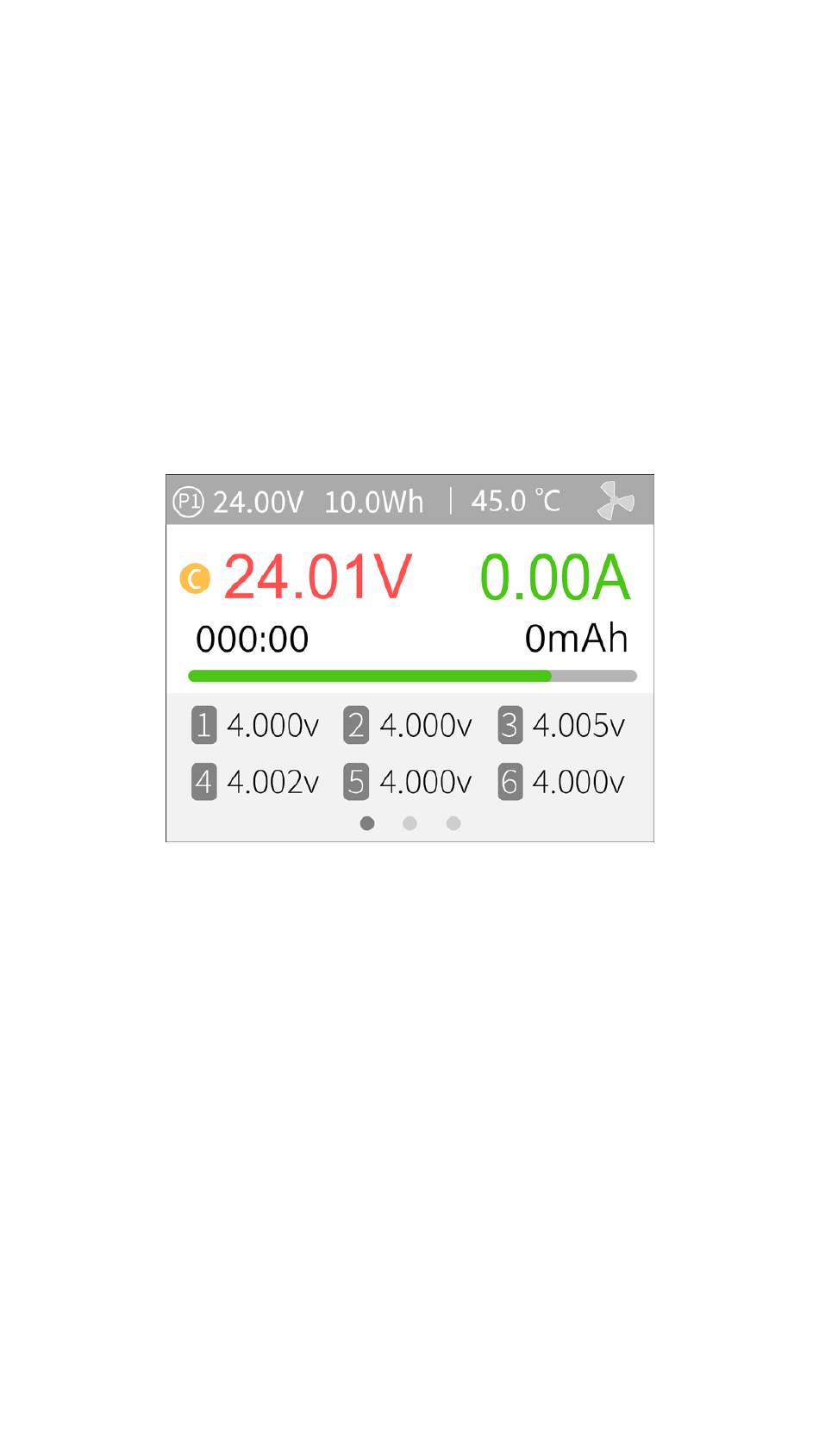

4，After booting up, the screen enters the main
interface as shown below:
5，Press and hold [ button] can enter into the
■
Multi-function interface.
6，Press [ button] to switch between pages.
▲▼
●
7，When the charger idle, short press [ button] to set
●
the charging parameters. Press [ button] during the
charging process to adjust the amperage or stop the
charge process.
●
8，When the charger idle, Press and hold [ button] to
enter the system setting interface.
9，Short press [■button] or return to the previous
interface.
