Summary of Contents for ToolKitRC C3
- Page 1 Manual V1.0 2022.12 www.toolkitrc.com ToolkitRC Technology (Shenzhen) Co. Ltd @ToolkitRC 2022...
-
Page 2: Introduction
Introduction Thank you for purchasing the C3 balance charger, please read this manual carefully before use. Key Points Tips Important Information Further information To ensure you have the best experience with this product, please to stay up to date with news, information and firmware updates for your charger;... -
Page 3: Safety
Safety 1. C3 allows input voltage of AC 100-240V. Ensure the charger is only connected to a suitable AC power outlet. 2. Do not use this product in hot, humid, flammable or explosive environments. 3. Please do not use this charger without supervision. -
Page 4: Table Of Contents

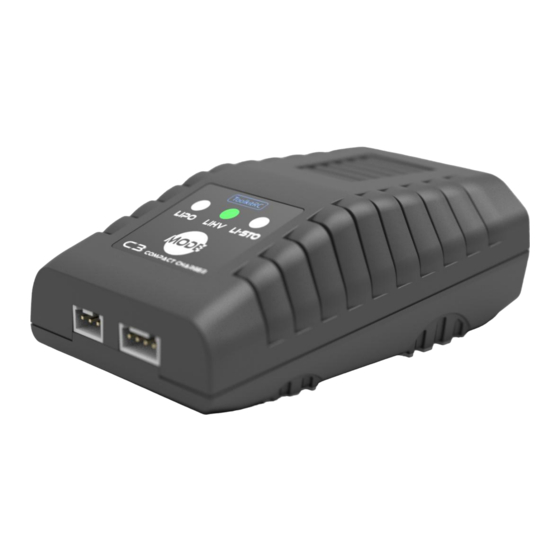

Contents Introduction ............2 Key Points ............. 2 Further information ..........2 Safety ..............3 Contents ............... 4 C3 Layout ............. 6 Quick start ............7 Charging settings ..........8 Specification ............10 @ToolkitRC 2022... - Page 5 Product description The C3 is a compact balance charger; despite the small size, the C3 has a maximum output of 25W! Featuring an intuitive user interface and a LED display, the C3 is a capable, bring-anywhere charger! Charge and balance management of LiPo, LiHV, ...
-
Page 6: C3 Layout

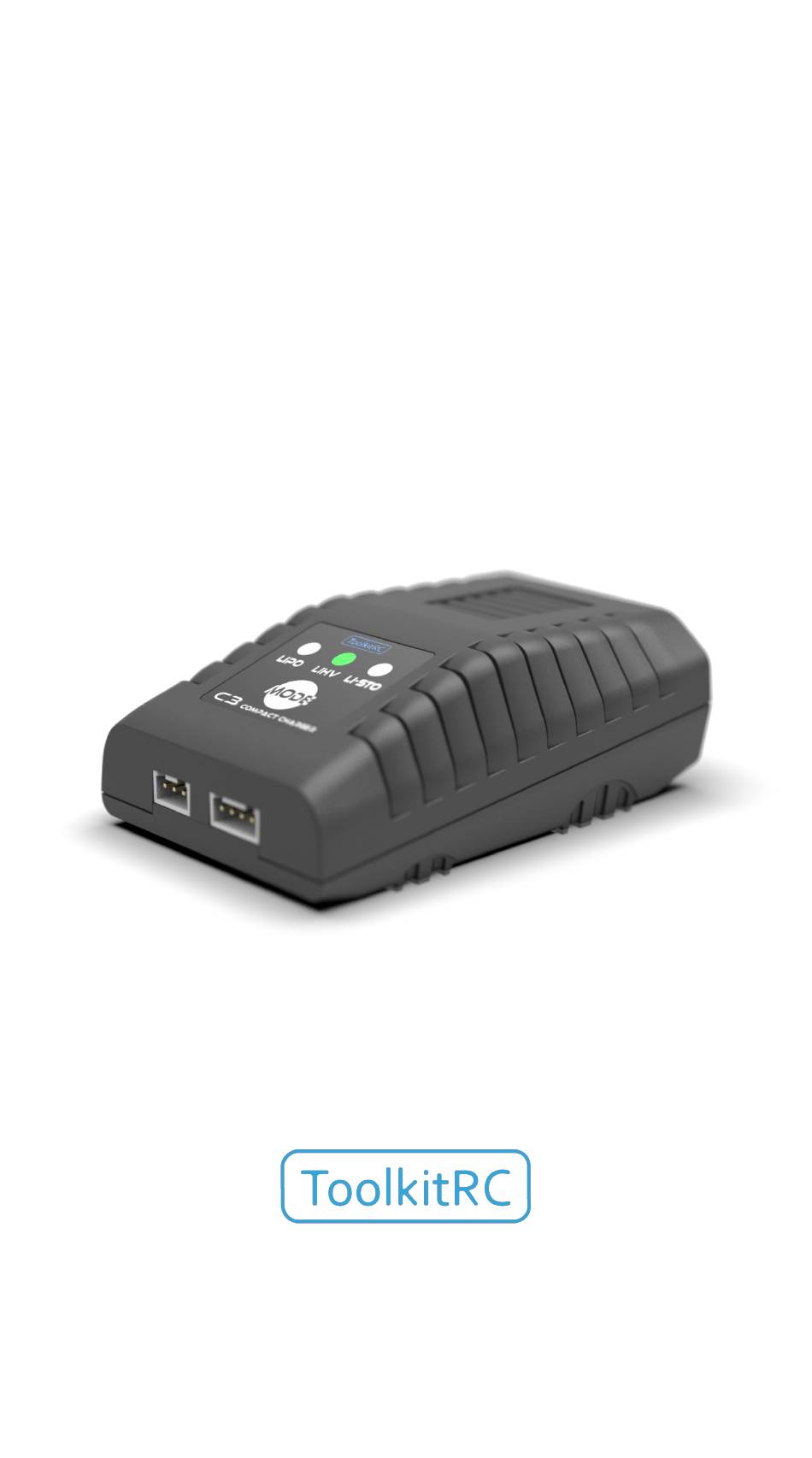

C3 Layout Mode Key Heat dissipation vents Charge port Front Heat dissipation vents AC Input Back @ToolkitRC 2022... -
Page 7: Quick Start
Quick start 1，Connect the C3 to a suitable AC 100-240V to power outlet. 2，After booting up, the LED shown below: 3，Short press [MODE] key to select the battery type. 4，Connect battery to balance port, when voltage match, the C3 will automatically start charging. -
Page 8: Charging Settings
1, Ensure the correct battery type has been selected prior to charging. An incorrect choice may damage the battery and/or become a fire hazard. Please use caution. 2, Do not use this product to charge non-compatible battery chemistries. =================================== @ToolkitRC 2022... - Page 9 2, LiHV: Often referred to as a high-voltage lithium battery, a battery with a nominal voltage of 3.85V and 4.35V when fully charged. 3, Li-Storage: It is often called storage charging, and the battery voltage remains at 3.85V after charging and discharging =================================== @ToolkitRC 2022...
-
Page 10: Specification
AC 100-240V MAX 25W type LiPo LiHv LipoStorage 2-3S Charging 2.2A@2S 1.5A@3S power Charge Balance MAX 200mA @4.20V current Charging <0.01V @4.20V accuracy Display Green:Stanby/Full RED:Charging Size 91*58*30mm Product Weight 100g Individu Size 95*64*58 mm Weight 160g packing @ToolkitRC 2022...
