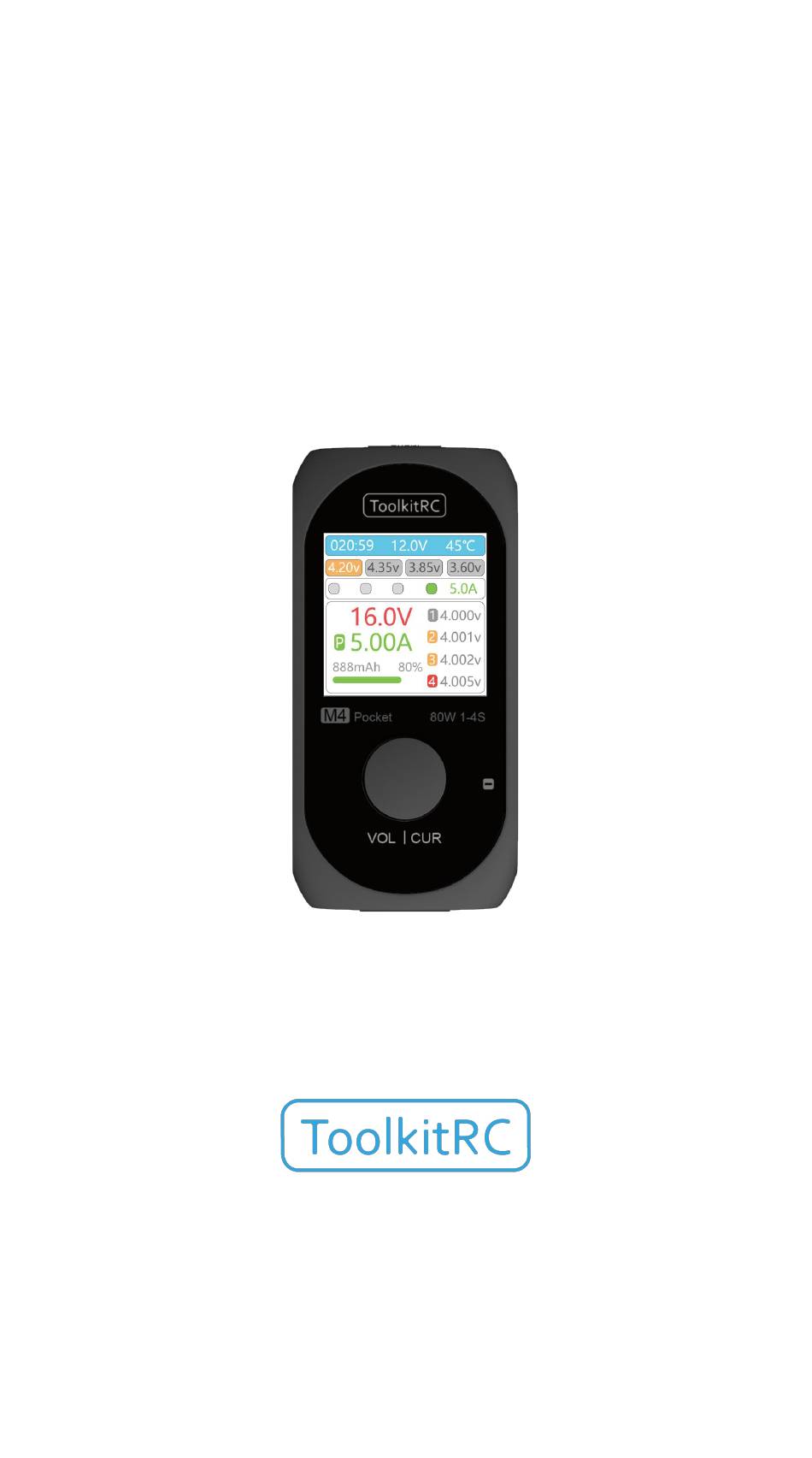

M4
Pocket
Manual V1.0
2021.11
www.toolkitrc.com
ToolkitRC Technology (Shenzhen) Co.. Ltd
1
@ToolkitRC 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M4 Pocket and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ToolKitRC M4 Pocket

  • Page 1 Pocket Manual V1.0 2021.11 www.toolkitrc.com ToolkitRC Technology (Shenzhen) Co.. Ltd @ToolkitRC 2021...
  • Page 2: Introduction

    Introduction Thank you for purchasing the M4 Pocket balance charger, please read this manual carefully before use. Key Points Tips Important Information Further information To ensure you have the best experience with this product, please scan the QR code below to stay up to date with news, information and firmware updates for your charger;...
  • Page 3: Safety

    Safety 1. M4 Pocket allows input voltage of DC 7.0-25.0V. Ensure the charger is only connected to a suitable AC power outlet. 2. Do not use this product in hot, humid, flammable or explosive environments. 3. Please do not use this charger without supervision.
  • Page 4: Table Of Contents

    Safety ..............3 Contents..............4 Layout ............6 Quick start ............. 7 Charge settings ............ 9 ......... 9 1, Battery type setting ..........11 2, Current setting Start charging.............12 Terminal voltage setting and manual calibration............14 DEFAULT............. 14 Specification ............15 @ToolkitRC 2021...
  • Page 5 M4 pocket has a maximum output of 80W! Featuring an intuitive user interface and a color IPS full viewing angle display, the M4 Pocket is a capable, bring-anywhere charger! Charge and balance management of LiPo, LiHV, ...
  • Page 6: M4 Ac Layout

    M4 Pocket Layout Voltage/Current key Display screen Heat dissipation vents XT60/XT30 Output ports Front Balance port Input port XT60/USB-C Back @ToolkitRC 2021...
  • Page 7: Quick Start

    Quick start 1,Connect the M4 Pocket to a suitable DC 7.0-25.0V to power outlet. 2,The display shows the boot logo for 2 seconds. 3,After booting up, the screen enters the main interface as shown below: 4,Short press [Voltage/Current] key to unlock the system and start adjusting parameters.
  • Page 8 ================================= Tips: Every time you turn on the charger, you need to press the button once to unlock the system. This is a safety feature designed to prevent incorrect selection of battery type and current. ================================= @ToolkitRC 2021...
  • Page 9: Charge Settings

    1,Battery type setting Long press [Voltage/Current] key to select battery cut-off voltage (battery type), displayed as follows. Different battery chemistries have different cutoff voltages. Please refer to the following table as reference, @ToolkitRC 2021...
  • Page 10 3, LiFe: Often referred to as an iron-lithium battery, a battery with a nominal voltage of 3.30V and 3.60V when fully charged. 4, Lion: Often called a lithium-ion battery, a battery with a nominal voltage of 3.60V and 4.10V when fully charged. =================================== @ToolkitRC 2021...
  • Page 11: 2,Current Setting

    1C-2C. For example: 1000mAh battery, use 1.0A-2.0A for charging; This effectively improves the cycle life of the battery. Always check the battery manufacturers guidelines and charging instructions before charging. =================================== @ToolkitRC 2021...
  • Page 12: Start Charging

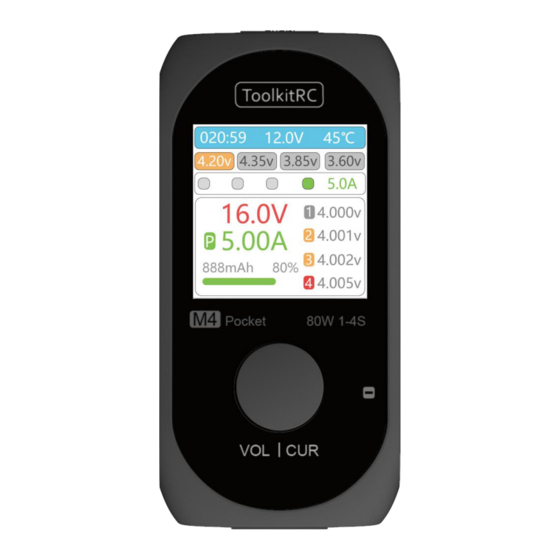

    4.20v:The selected cell type cutoff voltage 4.35v 3.85v 3.60v : Other cell cutoff voltages (not selected). 16.0V:Current battery voltage. 5.00A:Current charging current. C:Current limit sign. P:Power current limit, T:temperature limit, F:The battery or one of the cells is @ToolkitRC 2021...
  • Page 13 4.005V: The fourth cell voltage, this cell is quickly balancing =================================== Tips: When charging a 1S battery, the battery voltage needs to be provided to the balance port at the same time, so that the charger can recognize and start charging. =================================== @ToolkitRC 2021...
  • Page 14: Terminal Voltage Setting And Manual Calibration

    Calibration voltage: Battery calibration voltage, if the cell voltage readings appear to be incorrect, use a high-quality voltage meter to measure the actual voltage, then set this value to be the same as the meter. DEFAULT: Restore to factory default. @ToolkitRC 2021...
  • Page 15: Specification

    LiPo LiHv LiFe LipoStorage type 1-4S Charging 1.0-5.0A @ 80W power Charge Balance MAX 400mA @4.20V current Charging <0.005V @4.20V accuracy USB-C 1.0A@5.0V Output Display IPS 1.54” 240*240 Pixels Size 80*40*30mm Product Weight Individu Size 82*42*32 mm Weight packing @ToolkitRC 2021...
