ToolKitRC M6AC Manual page 12

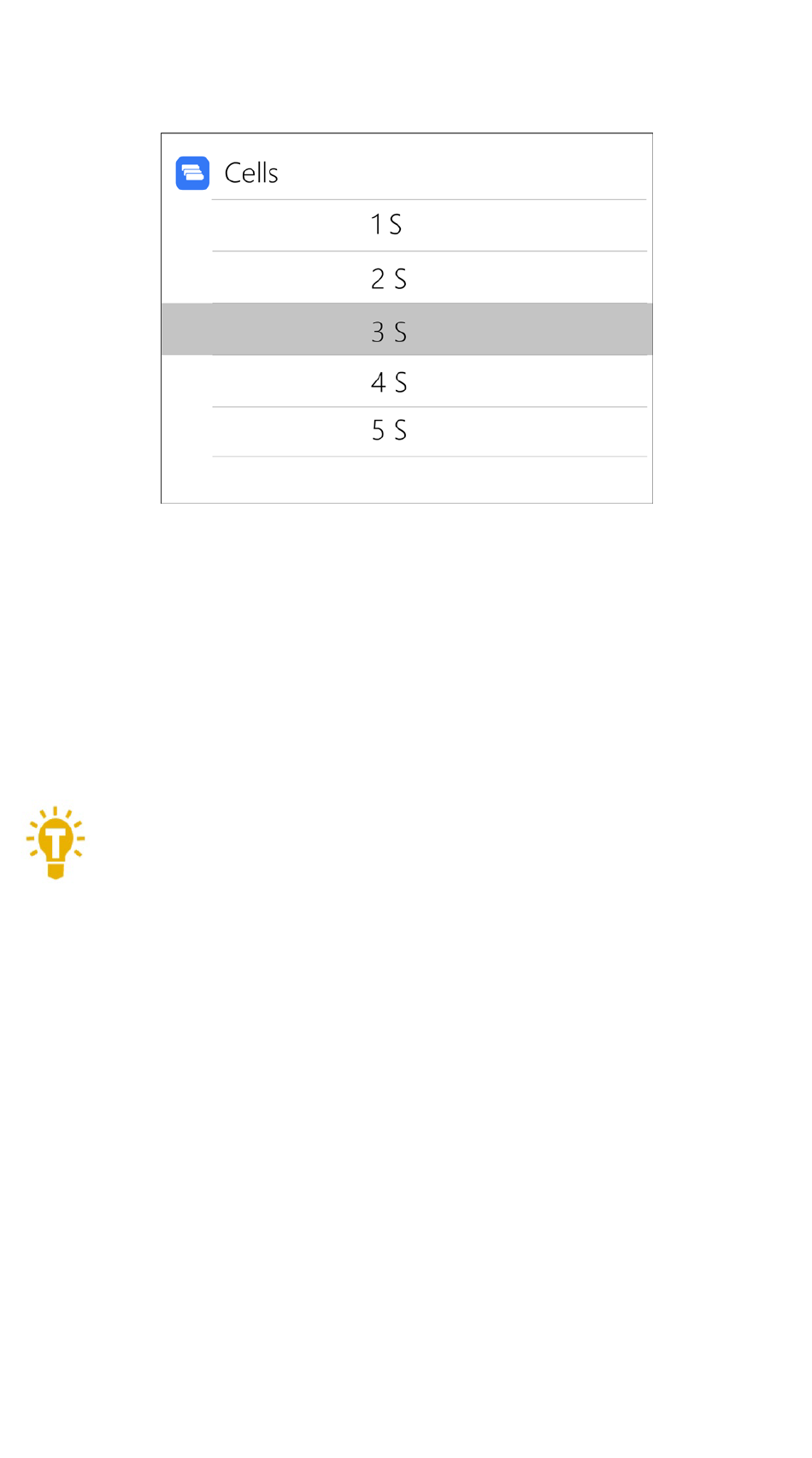

button] to modify the number of cells. The display is as
follows:
Press the [▲▼button] to adjust the value. When set
to [Auto], the charger will automatically identify the
number of cells by checking the total voltage against the
balance port data. Short press [●button] and [■button]
to take effect and return to the previous interface.
===================================
Tips:
1. If the connected battery is over-discharged
or over-charged, this may cause an incorrect
cell-count, in which case the cell number needs to
be adjusted normally.
2. If the cell count is set incorrectly, it may lead to
overcharging, which can present itself as a fire risk.
3. The cell count can be more accurately
determined if the balance port is connected.
=================================
3. Work Mode
Move the cursor to [Mode] and press [●button] to
12
