- Page 1 M6DAC Manual V1.0 2021.05 www.toolkitrc.com ToolkitRC Technology (Shenzhen) Co.. Ltd @ ToolkitRC 2021...
-
Page 2: Introduction
Introduction Thank you for purchasing the ToolkitRC M6DAC dual balance charger, please read this manual carefully before use. Key Points Tips Important Information Further information To ensure you have the best experience with this product please scan the QR code below to stay up to date with news, information and firmware updates for your charger. -
Page 3: Safety
Safety 1，M6DAC allows input voltage of 7-28V or AC 100-240V. Please ensure that the power supply voltage is in line with this range. Pay attention to the positive and negative polarities of the power supply when connecting. 2，Do not use this product in a hot area or near a heat source. -
Page 4: Table Of Contents
Contents Introduction ............2 Key Points ............. 2 Further information..........2 Safety ..............3 Contents..............4 M6DAC Layout ............. 8 Charge and discharge settings ....... 11 1，Battery type ........... 11 2，Number of cells ........... 13 3，Mode............. 15 4，Discharge mode.......... 15 5，Input MaxVoltage........17 6，End voltage（TVC）... - Page 5 10，Power mode setting........22 11，Smart battery ..........24 Charge and discharge work ......26 System settings..........30 Other functions..........34 Specification............36 @ ToolkitRC 2021...

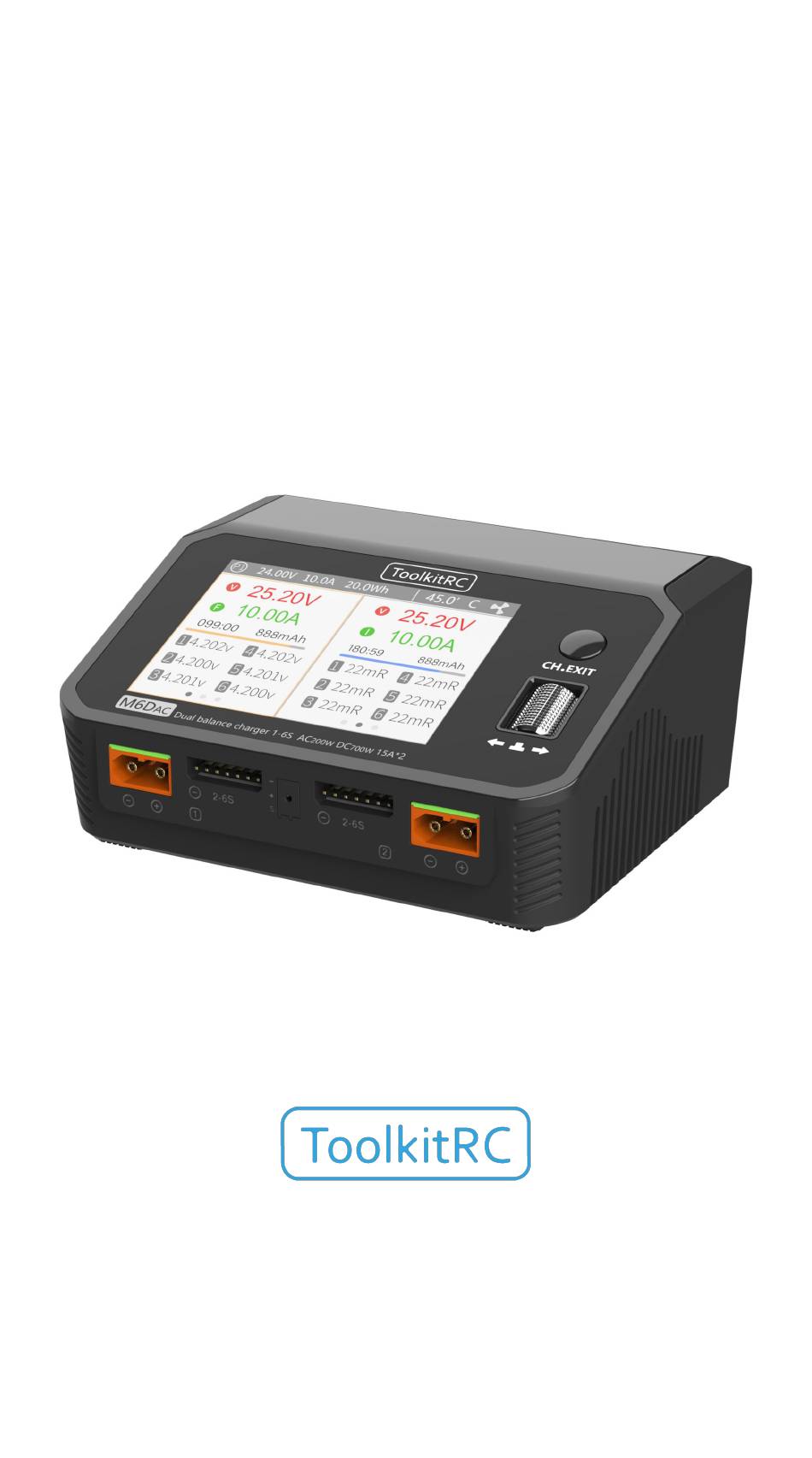

- Page 6 Product description M6DAC is a dual-channel balanced charger product. Small size, high power density, innovative design, charging accuracy can be as low as 5mV. Built-in 200W AC power supply. Charge, discharge and balance management of LiPo, LiHV, LiFe Lion 1-6S, NiMh 1-16S, PB 1-10S batteries.
- Page 7 automatically activated and charged. Multi-language system, can arbitrarily upgrade the required language. The device connects to PC like a USB drive for easy firmware upgrades. Simply copy and paste new firmware files to update. @ ToolkitRC 2021...
-
Page 8: M6Dac Layout
M6DAC Layout Scroll wheel Display Turn: left or right Press: OK Exit/CH Key Balance port*2 Temp. Sensor Port States LED*2 Main port*2 Front USBC output &upgrade DC input Cooling fan AC input Back @ ToolkitRC 2021... - Page 9 6，Press and hold [Exit/CH] to start testing the internal resistance of the corresponding channel. After the test, the internal resistance will be displayed. 7，Scroll [Scroll Wheel] to switch the pages in the corresponding channel. @ ToolkitRC 2021...
- Page 10 1，Short press [Scroll Wheel] once， to confirm the key function 2，Press and hold [Scroll Wheel] for 2 seconds， to delete the key function 3，If any key is operated successfully, there will be a di-di prompt tone. ================================= @ ToolkitRC 2021...
-
Page 11: Charge And Discharge Settings
Short press [OK] on the main interface to enter the charging function, the following interface is displayed. 1，Battery type Scroll [Scroll Wheel], move the cursor, select the stored battery type, or create a new battery, press [Enter] to enter the battery setting interface. @ ToolkitRC 2021... - Page 12 2，Do not use this product to charge batteries that do not indicate the battery type. ================================= Glossary of battery terms explanation 1, Lipo: often referred to as a lithium polymer @ ToolkitRC 2021...
-
Page 13: 2，Number Of Cells
6, PB: often called lead-acid battery, nominal voltage 2.00V. ================================= 2，Number of cells Move the cursor to the position of [Battery cell Number] and press [OK] to modify the number of battery cells. The display is as follows. @ ToolkitRC 2021... - Page 14 2，If the cell number is set incorrectly, it may not be fully charged, or the battery may be damaged by overcharging. Please set it carefully. 3，After Lixx battery is connected to the balance @ ToolkitRC 2021...
-
Page 15: 3，Mode
Short press [OK] and [Exit] to take effect and return to the previous interface. 4，Discharge mode When the working mode selects discharge, storage, and cycle mode, the battery setting interface will increase the discharge mode. As shown below. @ ToolkitRC 2021... - Page 16 Move the cursor to [Discharge Mode] and press [OK] to modify the discharge mode, as shown below. M6DAC supports two discharge modes. 1. Inter (Internal) Mode, discharge through internal heat consumption, maximum support 3.0A@12W discharge. 2. Recycle mode, when the input is a suitable...
-
Page 17: 5，Input Maxvoltage
Please set the input cut-off voltage withing the safe voltage range of the power supply battery. After the voltage is reached, the charger will automatically stop recycling and discharging. Setting a high over-voltage may damage the input power battery. ================================= @ ToolkitRC 2021... -
Page 18: 6，End Voltage（Tvc
2 ， If not familiar with battery characteristics, please do not modify the cut-off voltage. 3，The charging cut-off voltage can be set to a range of plus or minus 50mV of full voltage. 4, Glossary explanation: TVC: English abbreviation for terminal voltage control ================================= @ ToolkitRC 2021... -
Page 19: 7，Current Setting
For example: For a battery with a capacity of 2000mAh, please set the charging current to 2.0-4.0A as appropriate. 2. Charging and discharging current are only valid in the corresponding working mode 3. For the setting of discharge mode, please refer to @ ToolkitRC 2021... -
Page 20: 8，Nimh Setting (Peakv)
1，Only NiMh battery can set negative battery voltage. 2，Glossary explanation: PeakV: When the nickel-metal hydride battery is fully charged, the voltage drop of each piece peaks. ================================= 9，Cycle setting When the battery type is NiMh, and the work @ ToolkitRC 2021... - Page 21 As shown below. Move the cursor to [Cycle times] and press [OK] to set the cycle times to 2-12. The charger will follow the pattern cycle discharging-> charging-> discharging-> charging ... "Discharge-> Charge" is 2 times. @ ToolkitRC 2021...
-
Page 22: 10，Power Mode Setting
The range is 2 to 10 minutes. As shown below. 10，Power mode setting When the battery type is power, the battery setting interface only has two options: output voltage and maximum current. As shown below. @ ToolkitRC 2021... - Page 23 The voltage range is 1V to 28V. Move the cursor to [Max Current] and press [OK] to modify the maximum current, which is the maximum current of the output power supply. The range is 0.5A to 15A. @ ToolkitRC 2021...
-
Page 24: 11，Smart Battery
Move the cursor to [Drone model] and press [OK] to select different drone models. As shown below. Move the cursor to [Max Current] and press [OK] to set the charging current. The range is 0.5A to 15A. @ ToolkitRC 2021... - Page 25 12. Synchronous mode In the settings menu, when the synchronization function is turned on. The M6DAC will allow two channels to charge the same battery with a total current of 25A. Connect as shown below. @ ToolkitRC 2021...
-
Page 26: Charge And Discharge Work
Rotate the [Scroll wheel] on this interface to switch the bottom status information and internal resistance voltage value. Short press [OK] to dynamically set the working current or stop working. As shown below. @ ToolkitRC 2021... - Page 27 25.21V：First channel main port voltage. 20.00A：First channel main port current. 099:00：First channel working time. 888mAh：Cumulative capacity of the first channel. 1 4.205V：1st battery voltage ..4.200V：4th battery voltage(this cell is in balance management) -.--V ：No battery connected @ ToolkitRC 2021...
- Page 28 As shown below. 1 8mΩ：Internal resistance of the first battery ..Scroll [Scroll Wheel] to switch to the third column of the second channel, which is the information bar. As shown below. @ ToolkitRC 2021...
- Page 29 When set to automatically detect the number of battery cells, please pay attention to whether the detected number of cells is consistent with the actual battery. ================================= @ ToolkitRC 2021...
-
Page 30: System Settings
Input power settings: Enter the relevant settings of the power supply. After long-pressing, can select power supply 1, power supply 2, and power supply 3. Short press to expand settings. As shown below. @ ToolkitRC 2021... - Page 31 Max power: the maximum power absorbed from the input port when charging. Max current: the maximum current drawn from the input port during charging. Voltage range: the allowable input voltage range. Charging security Set.: Short press to expand settings. As shown below. @ ToolkitRC 2021...
- Page 32 Support more power. Continuous work: When selected the charger will automatically continue the same charging settings on the next connected battery. Ensure the next connected battery requires the same settings as the previous @ ToolkitRC 2021...
- Page 33 1 to 10 levels Buzzer: The tone of the buzzer can be set to off. Language: The system display language. English, Chinese, etc. can be selected. Default : Restore all settings to factory defaults. @ ToolkitRC 2021...
-
Page 34: Other Functions
Other functions 1，Firmware upgrade After connecting the M6DAC to the computer with the USB cable in the box, the computer will recognize a USB disk named Toolkit, download the upgrade file app.upg on the official website Copy and Paste the new file to overwrite the previous files in the USB disk, and the firmware can be upgraded. - Page 35 Just log out or shut down 6，Fully charged When the lithium battery is charged, it prompts "Fast charging has ended". If the battery is not removed, constant voltage trickle charging will be performed automatically to make the battery more fully charged. @ ToolkitRC 2021...
-
Page 36: Specification
0.1-3A@15W*2 Normal Mode USB-C 65W@20V@3.25A upgrade Protocol PD,QC,AFC,FCP ,SCP ,PE,SFCP ,VOC Battery 1.0V-5.0V @1-6S Voltage Battery Internal 1-100mR @1-6S Resistance Display IPS 3.5 inch 480*320 resolution Size 127mm*106mm*57mm Product Weight 520g Size 158mm*134mm*63mm Individual packing Weight 700g @ ToolkitRC 2021...
