- Page 1 Manual V1.0 2023.07 www.toolkitrc.com ToolkitRC Technology (Shenzhen) Co. Ltd @ToolkitRC 2023...
-
Page 2: Introduction
Introduction Thank you for purchasing the C6 balance charger, please read this manual carefully before use. Key Points Tips Important Information Further information To ensure you have the best experience with this product, please to stay up to date with news, information and firmware updates for your charger;... -
Page 3: Safety
Safety 1. C6 allows input voltage of AC 100-240V. Ensure the charger is connected to a suitable AC power outlet. 2. Do not use this product in hot, humid, flammable or explosive environments. 3. Please do not use this charger without supervision. -
Page 4: Table Of Contents

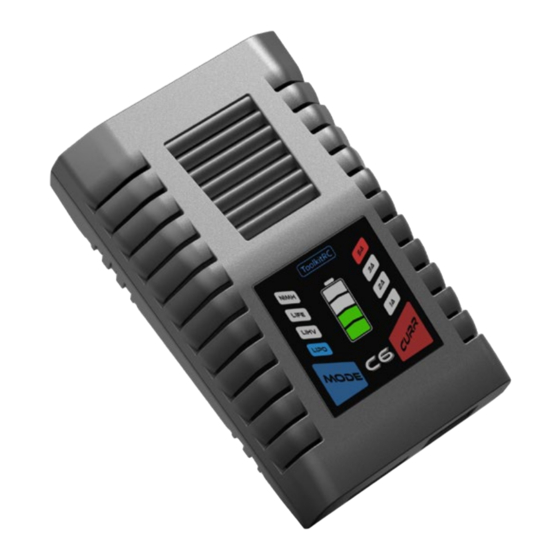

Contents Introduction ............2 Key Points ............. 2 Further information ..........2 Safety ..............3 Contents ............... 4 C6 Layout ............. 6 Quick start ............7 Charging settings ..........8 Specification ............10 @ToolkitRC 2023... - Page 5 Product description The C6 is a compact balance charger; despite the small size, the C6 has a maximum output of 50W! Featuring an intuitive user interface and a LED display, the C6 is a capable, bring-anywhere charger! Charge and balance management of LiPo, LiHV, ...
-
Page 6: C6 Layout
C6 Layout Capacity indication MODE Key CURR Key Balance port XT60 port Heat dissipation vents Front Heat dissipation vents AC Input Back @ToolkitRC 2023... -
Page 7: Quick Start
Quick start 1，Connect the C6 to a suitable AC 100-240V to power outlet. 2，After the unit boots up, the initial LED status is shown below: 3，Short press [MODE] key to select the battery type. 4，Short press [CURR] key to select the current. -
Page 8: Charging Settings
=================================== Important: 1, Ensure the correct battery type has been selected prior to charging. An incorrect choice may damage the battery and/or become a fire hazard. Please use caution. 2, Do not use this product to charge non-compatible @ToolkitRC 2023... - Page 9 2, LiHV: Often referred to as a high-voltage lithium battery, a battery with a nominal voltage of 3.85V and 4.35V when fully charged. 3, LiFe: Often referred to as an iron-lithium battery, a battery with a nominal voltage of 3.30V and 3.60V when fully charged. =================================== @ToolkitRC 2023...
-
Page 10: Specification
AC 100-240V MAX 55W Battery LiPo LiHv LiFe 1-6S NiMh5-12S Charging MAX 50W 5.0A power Charge Balance MAX 400mA @4.20V current Charging <0.01V @4.20V accuracy Display 25%，50%，75%，100% Size 106*64*35mm Product Weight 185g Individu Size 115*70*58mm Weight 240g packing @ToolkitRC 2023...
