- Page 1 Q6AC Manual V1.0 2023.10 www.toolkitrc.com ToolkitRC Technology (Shenzhen) Co., Ltd @ToolkitRC 2023...
-
Page 2: Introduction
Introduction Thank you for purchasing the Q6AC balance charger, please read this manual carefully before use. Key Points Tips Important Information Further information To ensure you have the best experience with this product please scan the QR code below to stay up to date with news, information and firmware updates for your charger. -
Page 3: Safety
Safety Q6AC allows an input voltage of AC 100V-240V or DC 7-30V. To ensure that the power supply voltage is consistent, pay attention to the positive and negative polarity of the power supply before use. Do not use this product in hot or humid environments. -
Page 4: Table Of Contents

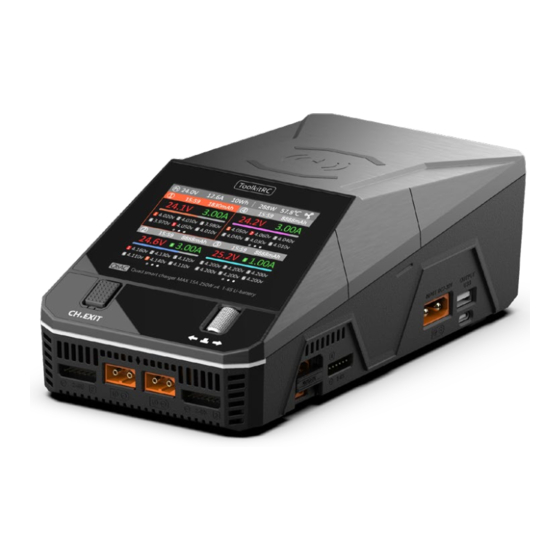

Introduction ..................1 Key Points ..................2 Further information ................2 Safety ....................3 Contents ..................... 4 Q6AC Layout ..................7 Quick start ..................8 Charging settings ................9 1，Battery type .................. 9 2，Number of cells ................. 12 3，Work mode ................13 4，End voltage（TVC）... - Page 5 Product description The Q6AC is a four-channel balance charger with IPS display and wheel menu navigation, which is easy and convenient to operate. Charge, discharge and balance management of LiPo, LiHV, LiFe, Lion LTO 1-65S, NiMh 1-16S, PB 1-10S batteries.
-
Page 6: Q6Ac Layout
Q6AC Layout Wireless charge CH/ Exit Display Scroll wheel AC Input Slider Main port*4 Balance port*4 Front DC input XT90 USB A/C output Cooling fan Back @ToolkitRC 2023... -
Page 7: Quick Start
You can adjust and end the charge when the channel is in progress. 8，Long press [Scroll Wheel] to enter the system setting interface when all four channels are free. 9，Press [CH/Exit] to end the modification or return to @ToolkitRC 2023... - Page 8 1. Short press [Scroll Wheel] once to confirm the function. 2. Long press [Scroll Wheel] for 2 seconds, it is the delete key function. 3. If any key is successfully operated, there will be a didi sound. ================================= @ToolkitRC 2023...
-
Page 9: Charging Settings
1，Battery type Scroll [Scroll Wheel], move the cursor, select the battery that has been set, or create a new battery, short press [Scroll Wheel] to enter the battery setting interface of this group, the display is as follows: @ToolkitRC 2023... - Page 10 [Scroll Wheel] to modify the battery type, the display is as follows: The charger supports Lipo, LiHV, LiFe, Lion, NiMh, PB chemistry batteries. After choosing the correct battery type, Short press [OK] and [CH/Exit] to take effect, and return to the previous interface. @ToolkitRC 2023...
- Page 11 5, LTO: often referred to as a lithium-ion battery with a nominal voltage of 2.40V and a fully charged battery of 2.70V. 6, NiMh: often referred to as nickel-hydrogen battery, nominal voltage 1.20V. 7, PB：often called lead-acid battery, nominal voltage 2.00V. ================================================== @ToolkitRC 2023...
-
Page 12: 2，Number Of Cells
2, If the cell number is set incorrectly, it may be insufficient to charge, or overcharge may damage the battery, please set it carefully. 3, After Lixx batteries are connected to the balance port, the number of battery strings can be more accurately identified. ================================================== @ToolkitRC 2023... -
Page 13: 4，End Voltage（Tvc
50mV of the full voltage. When the working mode is discharge, it is the discharge cut-off voltage. Scroll [Scroll Wheel] to adjust the value, step 0.01V. @ToolkitRC 2023... -
Page 14: 5，Charging Current
Move the cursor to the Charging Current” position and short press [Scroll Wheel] to modify the current. Scroll [Scroll Wheel] to adjust the value, step by 0.1A. Scroll [Scroll Wheel] quickly to increase or decrease quickly. The charger supports up to 15A. @ToolkitRC 2023... -
Page 15: 6，Nimh Setting（Peakv
Check the guidelines of your battery’s manufacturer for correct charging instructions. ================================================== 6，NiMh setting (PeakV) When the battery type is NiMh, the negative pressure value when the battery is fully charged can be set, and the setting range is 3mV-15mV, as shown below: @ToolkitRC 2023... - Page 16 ================================= Tips 1, Only NiMh battery can set the battery negative pressure value. 2, Vocabulary explanation: PeakV: When the NiMH battery is fully charged, the peak voltage of each cell drops. ================================= @ToolkitRC 2023...
- Page 17 Scroll [Scroll Wheel] on this interface to switch the display of the internal resistance voltage value of the corresponding channel. Short press [Scroll Wheel] to dynamically set the working current or stop working. As shown below: @ToolkitRC 2023...
- Page 18 57.8℃: The internal temperature of the charger. 24.00V: The main port voltage of the first channel. 15.00A: The main port current of the first channel. 15:59: Working time of the first channel. 888mAh: The cumulative capacity of the first channel. @ToolkitRC 2023...
- Page 19 -.--V: No battery connected. Use Scroll [Scroll Wheel] to switch to the second column of the second channel, which is the internal resistance information. As shown below: 1 1mΩ: Internal resistance of the first battery @ToolkitRC 2023...
- Page 20 When setting to automatically detect the battery string number, please pay attention to whether the detected cell number matches the actual number. ================================= @ToolkitRC 2023...
-
Page 21: System Settings
Input settings: Input power related settings, short press to expand the settings. As shown below. Power selection: When the AC power supply is @ToolkitRC 2023... - Page 22 Safe time: the maximum time of continuous charging, it will stop charging if it exceeds this. Safe capacity: the maximum capacity for continuous charging, and it will stop working if exceeded. Continuous work: after charging, whether to continue @ToolkitRC 2023...
- Page 23 Buzzer: the tone of the buzzer, which can be set to off. Language: system display language. You can choose English, Chinese, etc. Theme style: two styles of Light and Dark can be selected. Default: restore all settings to factory values. ID: the unique ID of the device factory settings. @ToolkitRC 2023...
-
Page 24: Other Functions
5, USB fast charging Q6AC built-in USB fast charging protocol, up to C port up to 65W charging power, A port can support up to 30W. Supported protocols are PD, QC, AFC, FCP , SCP , PE, SFCP , VOC. - Page 25 Just exit or shut down. 7, Fully charged When the lithium battery is fully charged, it will prompt "Fast charging has ended". If the battery is not removed, the constant voltage trickle charge will be performed automatically to keep the battery full. @ToolkitRC 2023...
-
Page 26: Specification
Discharge 0.1-15.0A@250W*4 Recycle Power 0.1-3A@12W*4 Normal USB-A 30W@ upgrade USB-C 20V@65W PD,QC,AFC,FCP,SCP,PE,SFCP,VOC Battery 1.0V-5.0V @1-6S Voltage Battery Internal 1-100mR @1-6S Resistance Display IPS 3.5 寸 480*320 Pixel Size 220mm*113mm*82mm Product Weight 1120g Size 260mm*220mm*120mm Individual Packing Weight 1600g @ToolkitRC 2023...
