- Page 1 Manual V1.0 2023.06 www.toolkitrc.com ToolkitRC Technology (Shenzhen) Co. Ltd @ToolkitRC 2023...
-
Page 2: Introduction
Introduction Thank you for purchasing the C4 balance charger, please read this manual carefully before use. Key Points Tips Important Information Further information To ensure you have the best experience with this product, please to stay up to date with news, information and firmware updates for your charger;... -
Page 3: Safety
Safety 1. C4 allows input voltage of AC 100-240V. Ensure the charger is connected to a suitable AC power outlet. 2. Do not use this product in hot, humid, flammable or explosive environments. 3. Please do not use this charger without supervision. -
Page 4: Table Of Contents

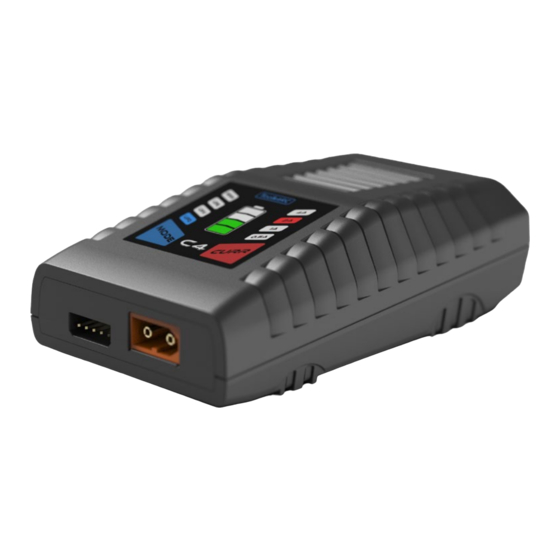

Contents Introduction ............2 Key Points ............. 2 Further information ..........2 Safety ..............3 Contents ............... 4 C4 Layout ............. 6 Quick start ............7 Charging settings ..........8 Specification ............10 @ToolkitRC 2023... - Page 5 Product description The C4 is a compact balance charger; despite the small size, the C4 has a maximum output of 50W! Featuring an intuitive user interface and a LED display, the C4 is a capable, bring-anywhere charger! Charge and balance management of LiPo, LiHV, ...
-
Page 6: C4 Layout
C4 Layout Capacity indication MODE Key CURR Key Charge port Heat dissipation vents Front Heat dissipation vents AC Input Back @ToolkitRC 2023... -
Page 7: Quick Start
Quick start 1，Connect the C4 to a suitable AC 100-240V to power outlet. 2，After the unit boots up, the initial LED status is shown below: 3，Short press [MODE] key to select the battery type. 4，Short press [CURR] key to select the current. -
Page 8: Charging Settings
=================================== Important: 1, Ensure the correct battery type has been selected prior to charging. An incorrect choice may damage the battery and/or become a fire hazard. Please use caution. 2, Do not use this product to charge non-compatible @ToolkitRC 2023... - Page 9 2, LiHV: Often referred to as a high-voltage lithium battery, a battery with a nominal voltage of 3.85V and 4.35V when fully charged. 3, LiFe: Often referred to as an iron-lithium battery, a battery with a nominal voltage of 3.30V and 3.60V when fully charged. =================================== @ToolkitRC 2023...
-
Page 10: Specification
AC 100-240V MAX 55W type LiPo LiHv LiFe 2-4S NiMh5-8S Charging MAX 50W 4.0A power Charge Balance MAX 400mA @4.20V current Charging <0.01V @4.20V accuracy Display 25%，50%，75%，100% Size 106*64*35mm Product Weight 165g Individu Size 115*70*58mm Weight 220g packing @ToolkitRC 2023...
