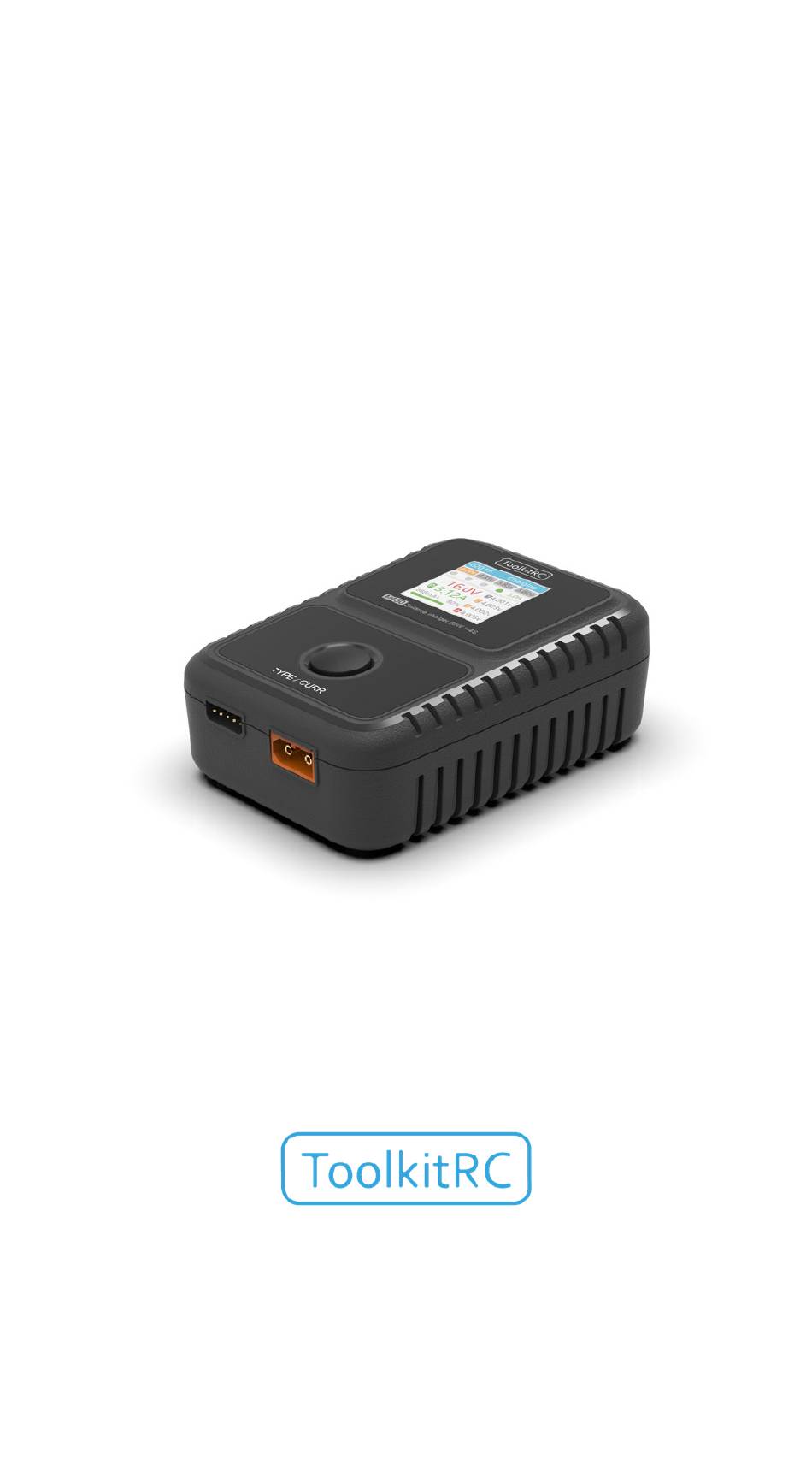

- Page 1 Manual V1.0 2024.07 www.toolkitrc.com ToolkitRC Technology (Shenzhen) Co.. Ltd @ToolkitRC 2024...
-
Page 2: Introduction
Tips Important Information Further information To ensure you have the best experience with this product please scan the QR code below to stay up to date with news, information and firmware updates for your charger. Or visit www.toolkitrc.com. @ToolkitRC 2024... -
Page 3: Safety
5. When using the charging function, please set a current that matches the battery. Do not set an excessive current for charging to avoid damage to the battery. Check the guidelines of your battery’s manufacturer for correct charging instructions. @ToolkitRC 2024... -
Page 4: Table Of Contents
Introduction ............2 Key Points ............. 2 Further information ..........2 Safety ..............3 Contents ............... 4 M450 Layout ............6 Quick start ............7 Charging settings ..........9 1，Battery type setting ........9 2，Current setting ..........11 Start charging ............ 12 Terminal voltage setting and manual calibration ............ -
Page 5: Product Description
Battery voltage can be manually calibrated. Charging accuracy: <0.005V. Balance current: 200mA. 1.54 inch, IPS full viewing angle display. High resolution 240*240 pixels. *To charge 1S batteries, you need to purchase the following adapter charging cable as below: @ToolkitRC 2024... -
Page 6: M450 Layout
Layout Type/Current (Press and hold: Type display screen Short press: Current) output main port balance port Heat dissipation vents Front heat dissipation vents AC input port Back @ToolkitRC 2024... -
Page 7: Quick Start
5，Press and hold [Type/Current] key to select the cut-off voltage to be charged. 6，Short press [Type/Current] key to select the current to be charged. 7，When the output main port and the balance port voltage match, it will automatically start charging. @ToolkitRC 2024... - Page 8 ================================= Tips: Every time you turn on the charger, need to short press the button once to unlock. This safety feature is to prevent incorrect selection of battery type and current. =================================== @ToolkitRC 2024...
-
Page 9: Charging Settings
After the power is turned connected and the charger unlocked, the screen will display the following. 1，Battery type setting Long press [Type/Current] key to select battery cut-off voltage (battery type), the display is as follows. Different cut-off voltages correspond to different battery types. The following table: @ToolkitRC 2024... - Page 10 3, LiFe: Often referred to as an iron-lithium battery, a battery with a nominal voltage of 3.30V and 3.60V when fully charged. 4, Lion: Often called a lithium-ion battery, a battery with a nominal voltage of 3.60V and 4.10V when fully charged. =========================================== @ToolkitRC 2024...
-
Page 11: 2，Current Setting
1C-2C. For example: 1000mAh battery, it is recommended to use 1.0A-2.0A for charging, which will effectively improve the cycle life of the battery. Always check the battery manufacturers guidelines and charging instructions before charging. =================================== @ToolkitRC 2024... -
Page 12: Start Charging
4.20v：The selected rechargeable battery type. 4.35v 3.85v 3.60v： Other types of rechargeable batteries. 16.0V：Current rechargeable battery voltage. 1.56A：Current charging current. P:Current limit sign. P:Power current limit, T:High temperature current limit, F:The battery or one of the cells is full. @ToolkitRC 2024... - Page 13 4.005V: The fourth battery voltage, this cell is quickly balancing ================================= Tips: When charging a 1S battery, the battery voltage needs to be provided to the balance port at the same time, so that the charger can recognize and start charging. ================================= @ToolkitRC 2024...
-
Page 14: Terminal Voltage Setting And Manual Calibration
Calibration voltage: Battery calibration voltage, if the cell voltage readings appear to be incorrect, use a high-quality voltage meter to measure the actual voltage, and then set this value to be the same as the meter. To achieve voltage calibration. DEFAULT: Restore to factory default. @ToolkitRC 2024... -
Page 15: Specification
Battery LiPo LiHv LiFe LipoStorage type 2-4S Charging 1.0-5.0A @ 50W Charging power Balance MAX 200mA @2-4S current Charging <0.005V accuracy Display IPS 1.54 inch 240*240 resolution Size 109mm*79mm*42mm Product Weight 230g Size 110mm*80mm*65mm Individual packing Weight 310g @ToolkitRC 2024...
