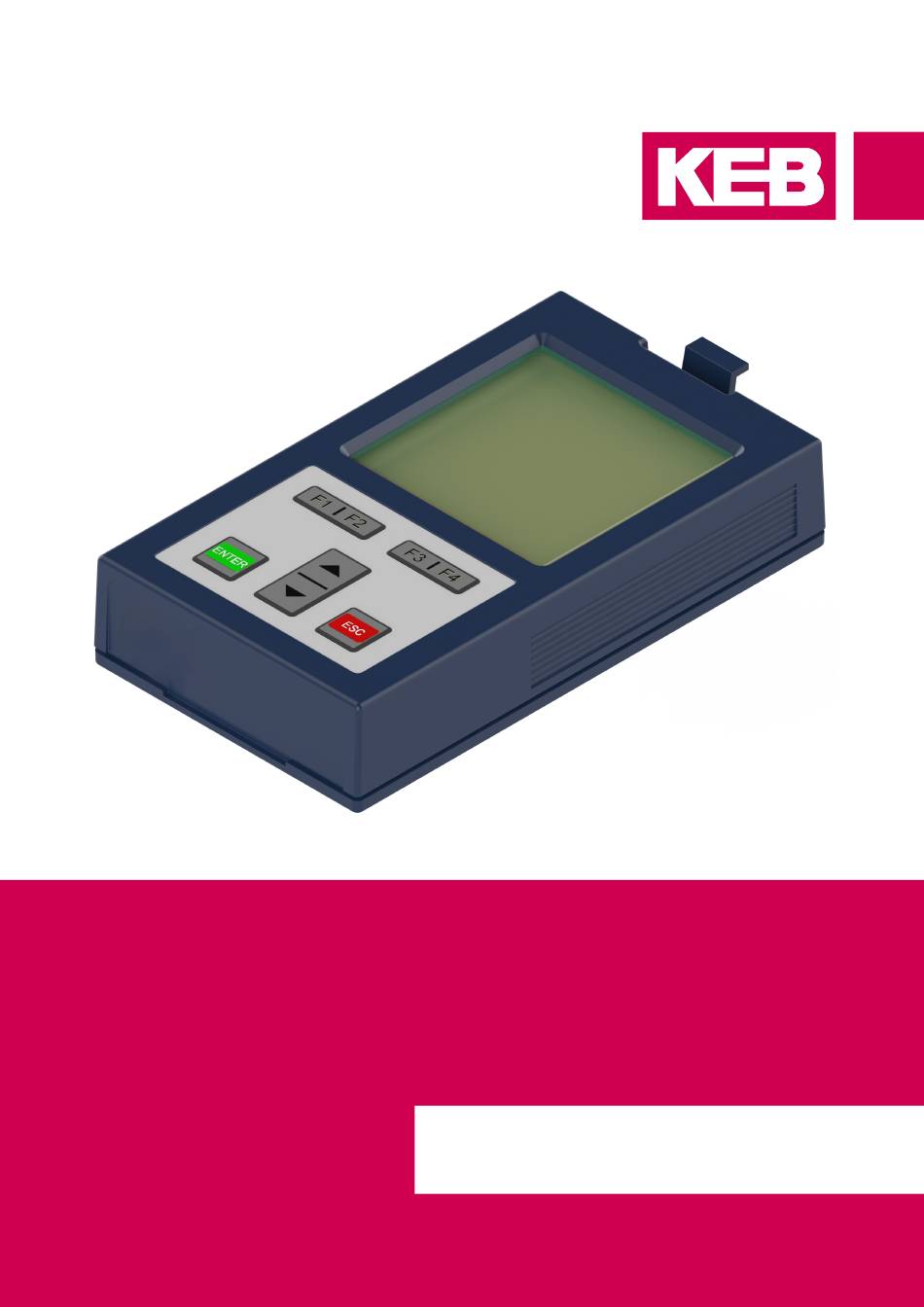

  • Page 1 Instruction for use COMBIVERT F6 Accesories Operator 2.0 Translation of the original manual Document 20375480 EN 00...
  • Page 2 Imprint KEB Automation KG Suedstraße 38, D-32683 Barntrup Germany Tel: +49 5263 401-0 • Fax: +49 5263 401-116 E-Mail: info@keb.de • URL: https://www.keb-automation.com ma_dr_f6-operator-2-inst-20375480_en Version 00 • Edition 10/12/2024...

  • Page 3: Table Of Contents

    Table of contents Table of contents Introduction ..............................Markings..............................1.1.1 Warnings..........................1.1.2 Information notes ........................1.1.3 Symbols and markers ......................Laws and guidelines..........................Warranty and liability..........................Support..............................Copyright............................... Validity of this manual ........................... Target group............................General Safety Instructions.......................... Product description ............................Order data .............................
  • Page 4 Table of contents KEB Automation KG Parameter saving ..........................7.10 Upload/download of parameters ......................7.11 Work list ..............................7.12 File operations............................7.13 FTP local mode ............................. 7.14 FTP bridge mode ..........................7.15 Function test of keyboard and display....................Software .................................

  • Page 5: List Of Figures

    List of figures List of figures Fig. 1 Overview ..............................Fig. 2 Control card block incl. operator (front panel) ..................Fig. 3 Operator interface X6A .......................... Fig. 4 USB interface X6B ..........................Fig. 5 Ethernet interface X6C........................... Fig. 6 Remove the blind cover ......................... Fig.

  • Page 6: List Of Tables

    List of tables KEB Automation KG List of tables Tab. 1 Order data .............................. Tab. 2 Revision states............................Tab. 3 Control elements ............................ Tab. 4 Main menu ............................. Tab. 5 Operator files............................Tab. 6 Numeric input ............................Tab. 7 Abbreviations in the function toolbar ......................

  • Page 7: Introduction | 1

    Introduction | 1 1 Introduction The described devices, accessories, hardware and/or software are products of KEB Automation KG. The enclosed documents correspond to conditions valid at printing. Misprint, mistakes and technical changes reserved. 1.1 Markings 1.1.1 Warnings Certain operations can cause hazards during the installation, operation or there- after.

  • Page 8: Symbols And Markers

    This also applies to any violation of industrial property rights of a third- party. Selection of KEB units in view of their suitability for the intended use must be done by the user. Tests can only be carried out within the scope of the intended end use of the product (Application) by the Customer.

  • Page 9: Validity Of This Manual

    Introduction | 1 1.6 Validity of this manual These instructions for use are valid for the accessories listed in the product de- scription. These instructions for use • contains only supplementary safety instructions. • is only valid in conjunction with the device suitable for the accessory and its in- structions for use.

  • Page 10: General Safety Instructions

    2 | General Safety Instructions KEB Automation KG 2 General Safety Instructions The products are developed and built according to the state of the art and recog- nized safety rules. Nevertheless, their use may create dangers to life and limb of the user or third parties or damage to the machine and other material property.

  • Page 11: Product Description | 3

    • Providing the diagnostic interfaces (USB and Ethernet) The operators can not perform the following tasks: • Providing of interfaces for permanent installation (fieldbuses / IO / etc.) F6-A control boards (► https://data.keb.de/fileadmin/media/Manuals/dr/ma_dr_f6- cu-a-inst-20118593_en.pdf) F6-K control boards (► https://data.keb.de/fileadmin/media/Manuals/dr/ma_dr_f6- cu-k-inst-20144795_en.pdf) F6-P control boards (►...

  • Page 12: Description Of The Operator

    4 | Description of the operator KEB Automation KG 4 Description of the operator ① ④ ② ⑤ ③ ⑥ ⑦ Fig. 1: Overview 1 Locking lever 2 LC display 160 x 160 pixel, 32 levels of grey 3 Control panel 4 Interface to the drive controller...

  • Page 13: Control Card Block Incl. Operator

    4.1 Control card block incl. operator Fig. 2: Control card block incl. operator (front panel) 4.2 Operating conditions The operating conditions correspond to those of the used COMBIVERT F6 drive controller and can be found in the corresponding instructions for use. Avoidance of faulty shutdowns...

  • Page 14: Interfaces

    5 | Interfaces KEB Automation KG 5 Interfaces 5.1 Operator interface X6A The interface fulfills the following functions: • Communication with the F6 device (protocol DIN 66019II / KebFTP) • Voltage supply of the operator A combined RS485 interface is used as interface, which is provided as 9-pole D- Sub plug connector.

  • Page 15: Ethernet Interface X6C

    Interfaces | 5 5.2.2 Ethernet interface X6C Fig. 5: Ethernet interface X6C The USB interface emulates the diagnostic interface on the F6 device. DIN66019II is used as protocol via TCP or UDP on port 8000 and KebFtp on UDP port 8002. Additionally it can be accessed to parameters / objects of the operator. The oper- ator responds to the found node address(es) of the drive controller (see operator parameter OS05).

  • Page 16: Assembly Of The Operator

    6 | Assembly of the operator KEB Automation KG 6 Assembly of the operator Exemplary assembly on a COMBIVERT F6 housing 2. ü Remove the blind cover. a) Loosen the blind cover by pressing the locking lever and remove it. Fig. 6: Remove the blind cover...

  • Page 17: Fig. 7 Attach The Operator

    Assembly of the operator | 6 ü Inserting the operator a) Attach the F6 operator at the lower edge and tilt it into the cutout. b) Engage the locking lever. Fig. 7: Attach the operator ma_dr_f6-operator-2-inst-20375480_en...

  • Page 18: Operation Of The Operator

    7 | Operation of the operator KEB Automation KG 7 Operation of the operator 7.1 Control elements Operator control panel Name Function ① Menue bar ② Function bar Inverter parameter Function key 1 ① Operator parameter Operator parameters Function key 2 Parameter saving...

  • Page 19: Required Files

    The information required for correct operation is normally read out automatically from the drive controller by the operator. If any of the files listed are missing for any reason, please contact KEB. For independent installation of the files (≡► FTP local mode [} 34]).

  • Page 20: Non-Changeable Parameters

    7 | Operation of the operator KEB Automation KG 7.4 Non-changeable parameters The parameter groups are dependent on the drive controller type. ENTER ENTER With non-changeable parameters: Only ESC possible! → Parameter non- changeable! ENTER Changeable parameters Fig. 8: Non-changeable parameters (≡►...

  • Page 21: Changeable Parameters

    Operation of the operator | 7 7.5 Changeable parameters 7.5.1 Changing with "Up“ and "Down“ ENTER Save parameter value ENTER ENTER Inrease or decrease Numeric parameter value with "Up“ input and "Down“ Fig. 9: Changeable parameters (≡► Numeric input [} 23]) ma_dr_f6-operator-2-inst-20375480_en...

  • Page 22: Selection Of Subindices

    7 | Operation of the operator KEB Automation KG 7.5.2 Selection of subindices Selection of a parameter with subindices Recognisable by the [C] (C = Count) Opening the subindices Closing the subindices Fig. 10: Selection of subindicies ma_dr_f6-operator-2-inst-20375480_en...

  • Page 23: Numeric Input

    Operation of the operator | 7 7.5.3 Numeric input ENTER Round up to the next valid value and write to the device The sign is changed Removes the digit with the A point and a further digit Adds a digit at the end. The smallest value.

  • Page 24: Inverter Parameters

    7 | Operation of the operator KEB Automation KG 7.7 Inverter parameters The menu item inverter parameter includes all available drive controller parameters on the con- Inverter parameter trol board. They are function-related divided into Operator parameter groups. They are displayed on the operator via Parameter saving the internal bus.

  • Page 25: Operator Parameters

    Operation of the operator | 7 7.8 Operator parameters The operator parameters display the parameter groups of the operator. Inverter parameter Operator parameter Parameter saving Select the operator parameters with the keys ▲ Up/Download and ▼ and confirm with ENTER. Work list File operations Ftp local mode Ftp bridge mode...

  • Page 26: Operator System (Os)

    7 | Operation of the operator KEB Automation KG 7.8.1 Operator system (OS) Only the meanings of the parameter values are described in the following. Value ranges, data length and data type; Access mode and the default val- ues can be taken from COMBIVIS.

  • Page 27: Settings (Se)

    Operation of the operator | 7 7.8.2 Settings (Se) Se01 Contrast Parameter address 0x2381 Value Meaning -50…50 Sets the contrast of the LCD display. Press ENTER to change into the input mode in order to change the parameter value. Use the keys ▲ and ▼ to adjust the contrast in a range of -50…50. Se02 Font size Parameter address...
  • Page 28 7 | Operation of the operator KEB Automation KG Se05 Illumination mode Parameter address 0x2385 Value Meaning 0…2 The menu item determines the behavior of the backlight of the LC display. Press ENTER to change into the input mode in order to change the parameter value. Use the keys ▲ and ▼ to choose one of the following settings: 0: off →...

  • Page 29: Fieldbus (Fb)

    Operation of the operator | 7 7.8.3 Fieldbus (Fb) Fb00 MAC address Parameter address 0x2280 Value Meaning The MAC address (Media Access Control) is formed of 6 byte. Only the lowest 4 bytes are displayed here "FAxxxxxx“. This address is assigned by the manufacturer and cannot be changed.

  • Page 30: Flash File System (Fi)

    7 | Operation of the operator KEB Automation KG Fb10 DHCP server Parameter address 0x228A Value Meaning 0…1 Serves for switching off and on of the DHCP server functionality. BootP and DHCP requests are answered delayed in activated state. The following restrictions...

  • Page 31: Debugging Parameters (Db)

    Operation of the operator | 7 FI04 Deleted bytes Parameter address 0x2484 Value Meaning Displays the number of the deleted bytes. FI05 Deleted files Parameter address 0x2485 Value Meaning Displays the number of the deleted files. FI06 Free bytes Parameter address 0x2486 Value Meaning...

  • Page 32: Parameter Saving

    7 | Operation of the operator KEB Automation KG 7.9 Parameter saving ENTER opens the submenu for parameter sav- ing. Inverter parameters Operator parameters Save parameter (Upload) = F3 Parameter saving All inverter and operator parameters are read Up/Download out and saved in the flash memory. Every new...

  • Page 33: Work List

    Operation of the operator | 7 7.11 Work list ENTER opens the submenu for the worklist. Inverter parameter Operator parameter The selection of a work list of the flash memory Parameter saving occurs in this menu item. Up/Download Work list File operations Parameter lists, created with COMBIVIS in .wr5 Ftp local mode format can be transmitted via ftp to the operator.

  • Page 34: Ftp Local Mode

    In this mode, the interface to the drive controller is also in KebFTP mode, so the inverter parameters cannot be accessed via Ethernet. One of the PC programs "KEB FTP" or "COMBIVIS“ is required to install missing files. Each file can be protected with an access level ((≡►...

  • Page 35: Software | 8

    Software | 8 8 Software Files can be copied to the operator's flash memory with the programs "KEB FTP" and "COMBIVIS". The installation files for the required programs can be downloaded from the download area of (► www.keb-automation.com) under the search terms "(►...

  • Page 36: Revision History

    9 | Revision history KEB Automation KG 9 Revision history Version Date Description 2024-02 Prototype based on the manual "F6 Operator 20106497“ ma_dr_f6-operator-2-inst-20375480_en...

  • Page 37: Glossary

    Glossary Glossary Application The application is the intended use of the KEB product. COMBIVERT Proper name for a KEB Drive Controller. Customer The customer has purchased a product from KEB and integrates the KEB product into his product (customer product) or resells the KEB product (re- seller).

  • Page 38: Index

    Index KEB Automation KG Index ma_dr_f6-operator-2-inst-20375480_en...
