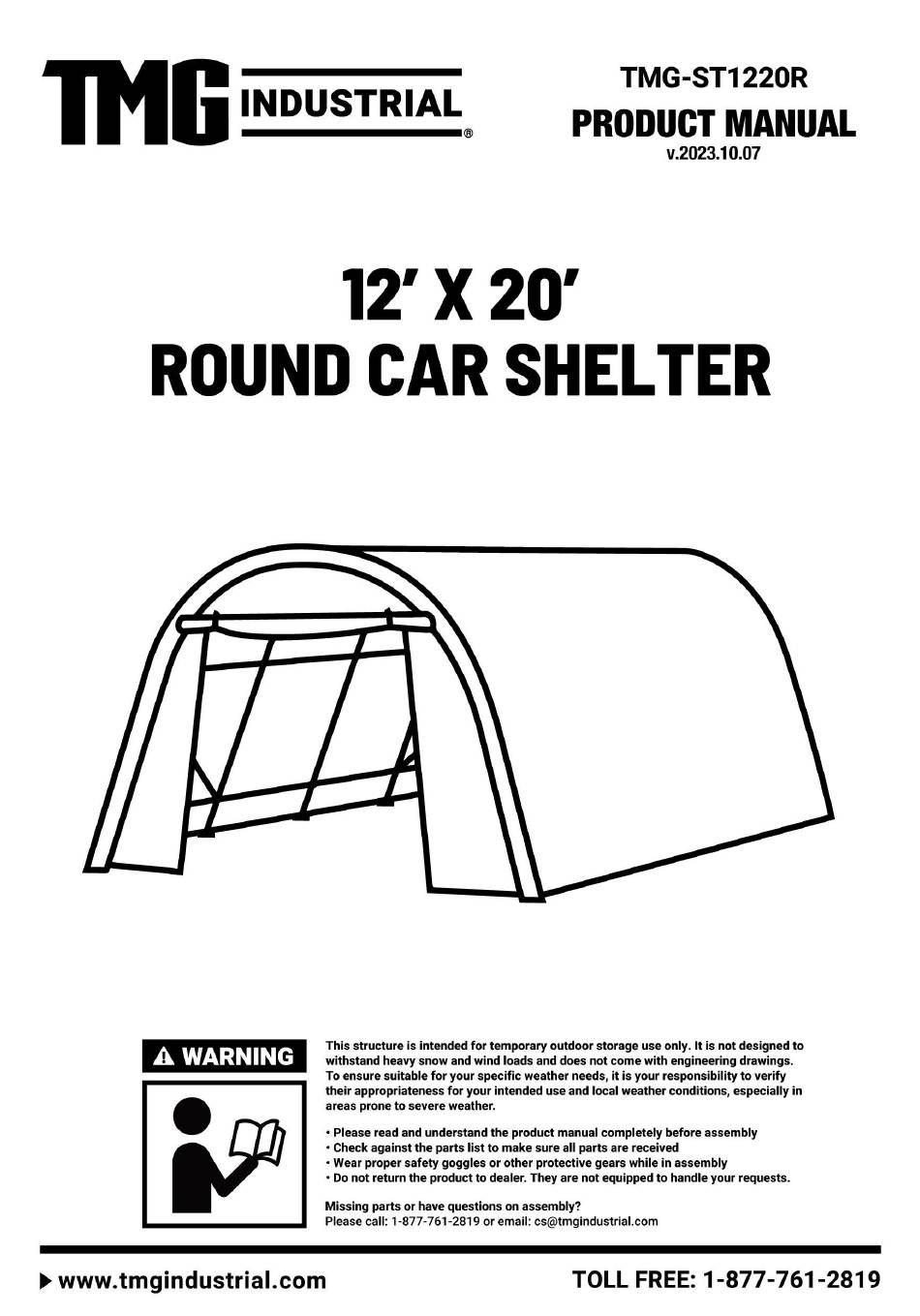

- Page 1 www.tmgindustrial.com 0/14 TOLL FREE:1-877-761-2819...
-
Page 2: Main Specifications
MAIN SPECIFICATIONS : Overall assembled size : W3.66 x L6 x H2.44 (m) / 12 x 19.7 x 8(ft) Front roll-up door : Height clearance : 75 inch Width clearance : 79 inch (top)-100 inch (bottom) CONCRETE FOUNDATION SIZE SEE BELOW FIGURE. The layout of foundation (one). - Page 3 The layout of foundation(two). Note: the ground anchor is installed on the cement block. www.tmgindustrial.com 2/14 TOLL FREE:1-877-761-2819...
- Page 4 Baseplate layout. PRIOR TO ASSEMBLY Please read the instructions carefully before installation. It is important to follow your local safety regulations and industry standards during installation. Regulations may include but are not limited to: Safety helmets, protective eyewear, and clothing ...
- Page 5 TMG-ST1220R PART LIST PARTS GRAPHIAL DESCRIPTION LENGTH CODE Peak arch tube φ42xL1133mm Middle arch tube φ42xL1339mm φ42xL1443mm Lower straight tube Purlins φ42xL1540mm Diagonal bracing bar φ42xL1890mm W120xL280mm Corner baseplate Middle baseplate Tube clamp φ42 Expansion bolt φ10x100mm Half round head bolt...
- Page 6 STEP 1 : BASEPLATE POSITIONING AND INSTALLATION. The diagonal X and Y must be equal. Installation diagram of expansion bolt. PART www.tmgindustrial.com 5/14 TOLL FREE:1-877-761-2819...
- Page 7 STEP 2 : ASSEMBLE ALL TRUSSES. PART www.tmgindustrial.com 6/14 TOLL FREE:1-877-761-2819...
- Page 8 STEP 3 : WRAP (#15) AROUND THE SHARP POINTS OF THE JOINT TO AVOID FRICTION BETWEEN THE FABRIC AND THE INTERFACE. PART www.tmgindustrial.com 7/14 TOLL FREE:1-877-761-2819...
- Page 9 STEP 4 : PUT UP ALL TRUSSES. Put up all 5 trusses, use hex bolt (#11) to secure the truss to the baseplates. PART www.tmgindustrial.com 8/14 TOLL FREE:1-877-761-2819...
- Page 10 STEP 5 : INSTALL ALL 5 PURLINS (#4) ON EACH SECTION, AND THE TWO DIAGONAL BRACING BARS (#5) ON THE FIRST AND LAST SECTION. PART www.tmgindustrial.com 9/14 TOLL FREE:1-877-761-2819...
- Page 11 STEP 6 : INSTALL THE FRONT COVER PLATE. The zipper of the front cover must be closed before installation. Use rope (#14) to lift up the cover (#13) from the center grommet and tie it firm to the truss tube and spread toward both sides through each grommet along the tube.
- Page 12 STEP 7: INSTALL THE REAR COVER PLATE. Use rope (#14) to lift up the cover (#13A) from the center grommet and tie it firm to the truss tube and spread toward both sides through each grommet along the tube. PART www.tmgindustrial.com 11/14...
- Page 13 STEP 8 : INSTALL ROOF COVER. DO NOT INSTALL THE COVER DURING WINDY WEATHER! Unpack the top cover and place it along one of the long sides of the structure. Pull the cover over the top of the structure from both ends, to have one person standing inside to push ...
- Page 14 STEP 9 : STRETCH AND TIGHTEN TOP COVER. The roof cover must be stretched and tied to the front and rear truss by rope going through the flap grommets on the cover. Start from the top center and go toward both sides on each end. Add or cut the rope as needed.
-
Page 15: After The Installation
AFTER THE INSTALLATION. Walk around and inspect the shelter periodically to make sure all components are still firmly secured and the whole shelter is well supported. Check all bolts and nuts as well as all connection points to make sure they are all in a good position.
