TMG -ST4081E Product Manual

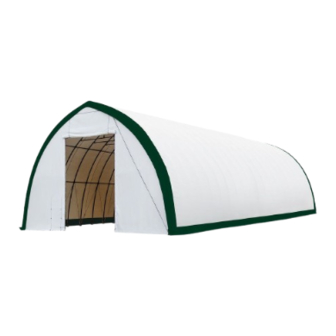

40' x 80' ft peak ceiling storage shelter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
WARNINGS-SAFE USAGE
► www.tmgindustrial.com
0/19
TOLL FREE:1-877-761-2819

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TMG-ST4081E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TMG TMG-ST4081E

Summary of Contents for TMG TMG-ST4081E

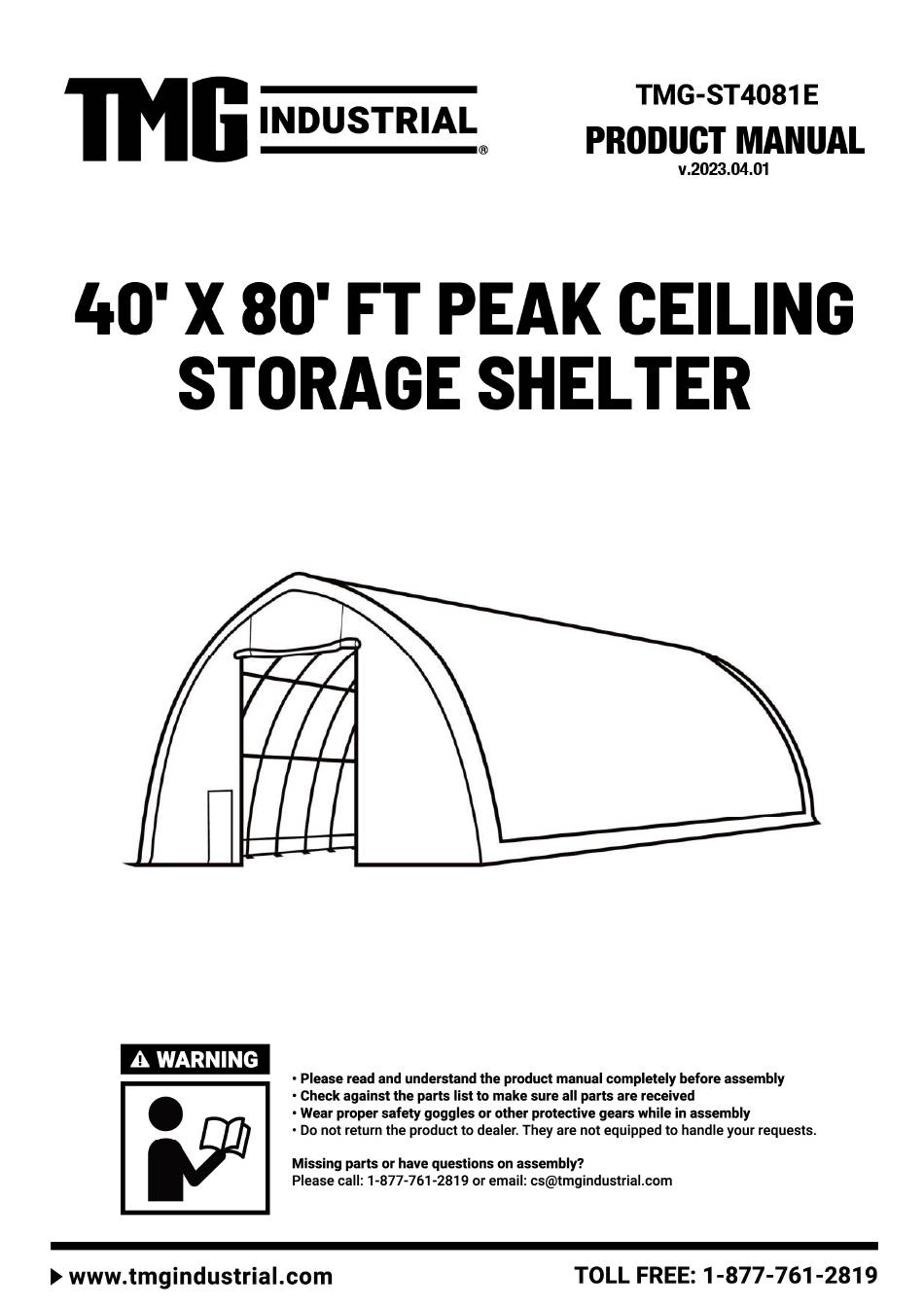

  • Page 1 WARNINGS-SAFE USAGE ► www.tmgindustrial.com 0/19 TOLL FREE:1-877-761-2819...

  • Page 2: Main Specifications

    MAIN SPECIFICATIONS: - Overall assembled size : W12 x L24 x H6.7(m) / 39.4 x 78.7 x 22(ft) - Front and back roll up door : W4.08 x H4.87(m) / 13.4 x 16(ft) CONCRETE FOUNDATION SIZE SEE BELOW FIGURE. PRIOR TO ASSEMBLY Please read the instructions carefully before installation.
  • Page 3 TMG-ST4081E PART LIST PARTS GRAPHICAL DESCRIPTION LENGTH CODE Peak arch tube φ58x1935mm Upper rafter tube φ58x2672mm (middle truss) Upper rafter tube φ58x2672mm (front and rear truss) Sidewall tube φ58x3100mm (middle truss) Sidewall tube φ58x3100mm (front and rear truss) Lower rafter tube φ58x2067mm...
  • Page 4 Door frame centre upper tube φ58x2060mm (front and rear truss) Rope pulley 30x35x130mm Rope pulley 30x35x80mm Front and rear door crossing beam φ58x2089mm (right) Front and rear door crossing φ58x2037mm beam(right) Door center vertical supporting rod φ42x1143mm for cross beam Front and rear door upper crossing tubes φ42x1760mm...

  • Page 5: Installation Steps

    Steel tension cables W30xL800mm (for #7A and front and rear arches) Water plug φ30mm Braided rope φ8x300m bundle Expansion bolt (not included) φ16x150mm φ32x1993mm Door dropping tube groups φ32x2200mm Top cover tension tube φ32x1993mm (for both bottom sides) Top cover tension tube φ32x700mm (for both bottom sides) Top cover...
  • Page 6 have about 3 ft clearance around the building have about 3 ft clearance around the building ,Diagonal line X must be equal to Y. • Draw a rectangular square base line showing all positions of base plates and front and rear doors. Draw a rectangular square base line showing all positions of base plates and front and rear doors.
  • Page 7 STEP 2 : ASSEMBLE ALL TRUSSES. • The building includes 21 trusses : (1) : (1) Front truss (1st truss), (1) rear truss (21rd truss), and (1 , and (19) middle trusses. The front and rear trusses are installed with the front and rear trusses are installed with the fabric panel (#29).
  • Page 8 • The (19) middle trusses include the following parts. Connect all tubes with include the following parts. Connect all tubes with bolt (#19). PART PART PART 1x19 2x19 2x19 12x19 2x19 2x19 2x19 2x19 1x19 ► www.tmgindustrial.com www.tmgindustrial.com 7/19 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 9 • Lay down all (21) trusses on the ground as figure 4 when the assembly is all completed and before moving to next step. PART ► www.tmgindustrial.com 8/19 TOLL FREE:1-877-761-2819...
  • Page 10 STEP 3 : PUT UP THE FRONT (1 ) TRUSS. ) TRUSS. • Use of a crane or forklift is recommended, Use of a crane or forklift is recommended, otherwise a team can use ropes to lift the trusses, but you have to make otherwise a team can use ropes to lift the trusses, but you have to make sure it is safe, and have enough manpower.
  • Page 11 STEP 4 : PUT UP THE REST TRUSSES. • Refer to Step 3 to put up the rest trusses, connect all Refer to Step 3 to put up the rest trusses, connect all 7 purlins (#5) with bolt (#18) and secure all bolts firmly on each and secure all bolts firmly on each span before going to next truss, include the following parts .
  • Page 12 STEP 5 : TENSION CABLE INSTALLATION. STEP 5 : TENSION CABLE INSTALLATION. • Tension cable installation : All cables are diagonally installed on each side of the interval, total Tension cable installation : All cables are diagonally installed on each side of the interval, total Tension cable installation : All cables are diagonally installed on each side of the interval, total 40 cables.
  • Page 13 STEP 6 : INSTALL THE REMAINING PARTS ON THE FRONT AND REAR TRUSS. STEP 6 : INSTALL THE REMAINING PARTS ON THE FRONT AND REAR TRUSS. PART PART PART 18x2 ► www.tmgindustrial.com www.tmgindustrial.com 12/19 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 14 STEP 7 : INSTALL FRONT AND REAR COVER PANEL. STEP 7 : INSTALL FRONT AND REAR COVER PANEL. • The door cover must be zipped. Use rope (# rope (#24) to lift up the front cover (#29) from the center grommet and tie it from the center grommet and tie it firm to the truss tube and spread toward both sides through each grommet along the tube.
  • Page 15 • The rope coming out from pulley 11B must go through the upper wheel of pully 11A, then pull both ropes together slowly and start to lift the door cover. • Tie both ropes to the corner base plate. Now the door cover is up. When you drop down the door cover, do not let go too quick, otherwise it might get stuck and damage the fabric.

  • Page 16: Step 8 : Install The Top Cover

    STEP 8 : INSTALL THE TOP COVER. Do not install the cover during windy weather! Do not install the cover during windy weather! • Unpack the top cover and place it along one of the long sides of the Unpack the top cover and place it along one of the long sides of the structure. Use 3 to 5 ropes to top cover (#28) pull the cover over the top of the structure, 2 or 3 people standing inside on pull the cover over the top of the structure, 2 or 3 people standing inside on pull the cover over the top of the structure, 2 or 3 people standing inside on...
  • Page 17 STEP 9 : STRETCH AND TIGHTEN TOP COVER. STEP 9 : STRETCH AND TIGHTEN TOP COVER. • The roof cover must be stretched and tied to the front and rear truss by rope The roof cover must be stretched and tied to the front and rear truss by rope going through the flap grommets on the going through the flap grommets on the cover.
  • Page 18 STEP 10 : TENSION THE COVER ON THE STRUCTURE FROM BOTH SIDES. STEP 10 : TENSION THE COVER ON THE STRUCTURE FROM BOTH SIDES. • Insert tension tubes (#27) slowly into the bottom groove pocket on slowly into the bottom groove pocket on both long sides. Add the both long sides.
  • Page 19 STEP 11 : INSTALL RATCHET STRAPS. STEP 11 : INSTALL RATCHET STRAPS. • Stretch and adjust the cover from left and right, back and forth, to make sure Stretch and adjust the cover from left and right, back and forth, to make sure it is square and centered. Cut the groove it is square and centered.

  • Page 20: After The Installation

    AFTER THE INSTALLATION Walk around and inspect the shelter periodically to make sure all components are still firmly secured and the whole shelter is well supported. Check all bolts and nuts as well as all connection points to make sure they are all in good position.
