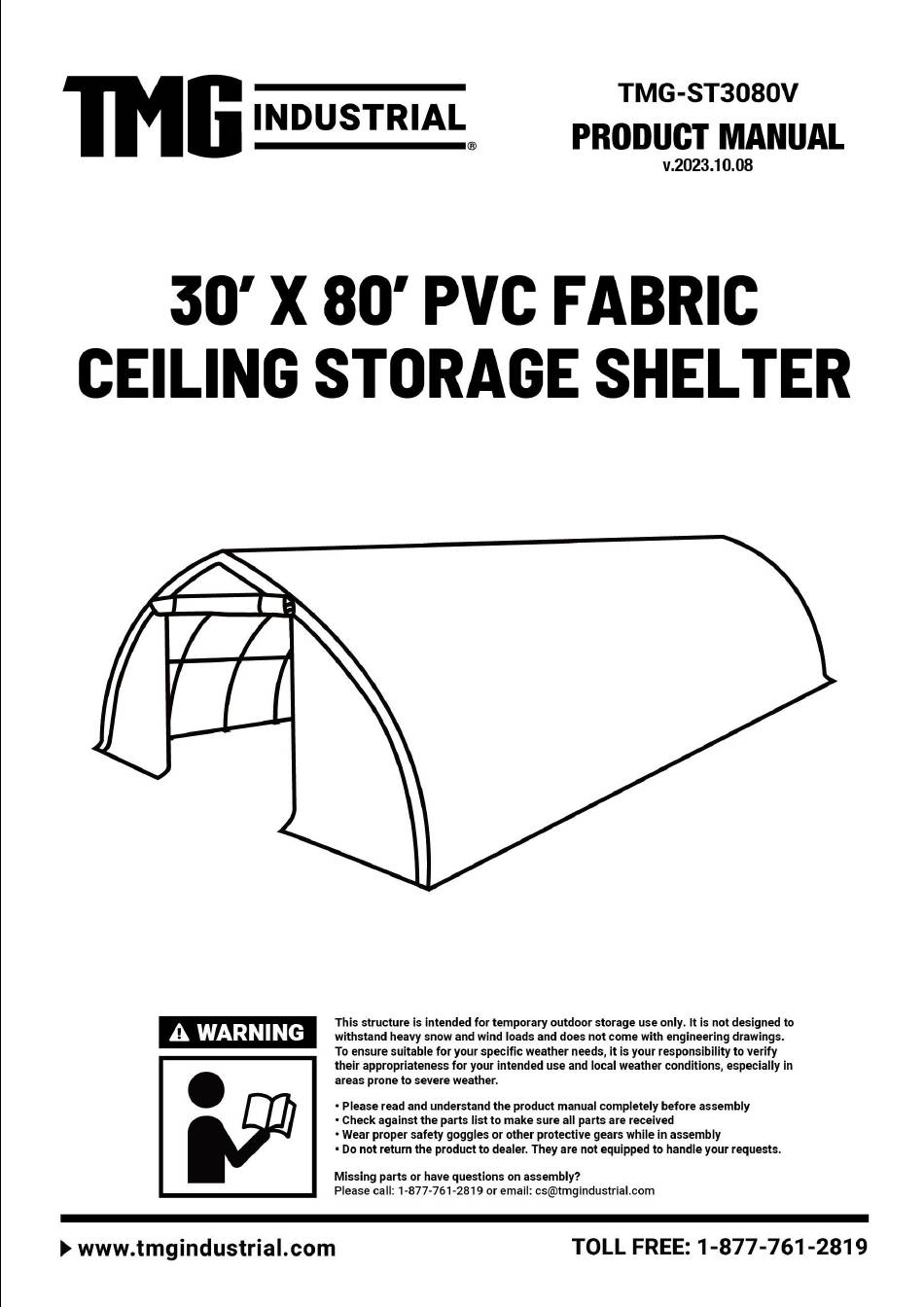

TMG -ST3080V Product Manual

30' x 80' pvc fabric ceiling storage shelter
Hide thumbs

Advertisement

Table of Contents

▶ www.tmgindustrial.com
0/20
TOLL FREE: 1-877-761-2819

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TMG-ST3080V and is the answer not in the manual?

Questions and answers

Related Manuals for TMG TMG-ST3080V

Summary of Contents for TMG TMG-ST3080V

  • Page 1 ▶ www.tmgindustrial.com 0/20 TOLL FREE: 1-877-761-2819...

  • Page 2: Main Specifications

    MAIN SPECIFICATIONS : Overall assembled size : W9.15 x L24x H4.57 (m) / 30 x 78.7 x 15(ft)   Front and back roll up door : W3.65 x H3.3 (m) / 12 x 10.8(ft) CONCRETE FOUNDATION SIZE SEE BELOW FIGURE. ...
  • Page 3 The layout of foundation(two).  Note: the ground anchor is installed on the cement block.  Baseplate layout. ▶ www.tmgindustrial.com 2/20 TOLL FREE: 1-877-761-2819...

  • Page 4: Prior To Assembly

    PRIOR TO ASSEMBLY Please read the instructions carefully before installation. It is important to follow your local safety regulations and industry standards during installation. Regulations may include but are not limited to : Safety helmets, protective eyewear, and clothing  Safety harnesses for all elevated workers ...
  • Page 5 TMG-ST3080V PART LIST PARTS GRAPHICAL DESCRIPTION LENGTH CODE Peak arch tube L2333mm Upper rafter tube L2886mm (middle truss) Upper rafter tube L2886mm (front and rear trusses) Lower rafter tube L2838mm (middle truss) Lower rafter tube L2838mm (front and rear trusses)
  • Page 6 Rope pulley L130mm Rope pulley L85mm Bottom tension bar L2560mm (front and rear cover) Diagonal bracing bar L2070mm (for 1st and last span) Tube clamp φ58mm Top cover tension tube L1993mm 24+2 (for both bottom sides) L900mm L1993mm Door dropping tube L1750mm Expansion bolt φ16x150mm...

  • Page 7: Installation Steps

    INSTALLATION STEPS STEP 1 : REVIEW THE WHOLE STRUCTURE AND CHOOSE THE PROPER INSTALLATION SITE. Mark the ground in the final building location with a line showing the positions of base plates, front doors. All  lines should be drawn from center to center of all baseplate tubes. Diagonal line X must be equal to Y. Installation diagram of expansion bolt.
  • Page 8 STEP 2 : ASSEMBLE ALL TRUSSES. The building includes 17 trusses : (1) front truss, (1)rear truss, and (15) middle trusses.  Install front and rear trusses.  PART PART ▶ www.tmgindustrial.com 7/20 TOLL FREE: 1-877-761-2819...
  • Page 9 Install (15) middle trusses.  PART PART 1x15 1x15 2x15 8x15 2x15 2x15 ▶ www.tmgindustrial.com 8/20 TOLL FREE: 1-877-761-2819...
  • Page 10 Lay down all (17) trusses on the ground when the assembly is all completed and before moving to next step,  and then wrap (#26) around the sharp points of the joint to avoid friction between the fabric and the interface, resulting in fabric damage.
  • Page 11 STEP 3: PUT UP THE FRONT TRUSS. PART ▶ www.tmgindustrial.com 10/20 TOLL FREE: 1-877-761-2819...
  • Page 12 STEP 4 : PUT UP THE REST TRUSSES. Refer to Step 3 to put up the rest trusses, connect all purlins (#4) with bolt (#17) and secure all bolts firmly on  each span before going to next truss. PART PART ▶...
  • Page 13 STEP 5 : INSTALL THE DIAGONAL BRACING BARS (#13). PART ▶ www.tmgindustrial.com 12/20 TOLL FREE: 1-877-761-2819...
  • Page 14 STEP 6 : FRONT AND REAR TRUSSES TO COMPLETE. Install rope pulley (#11A) on the right, (#11B) on the left as shown.  PART PART ▶ www.tmgindustrial.com 13/20 TOLL FREE: 1-877-761-2819...
  • Page 15 STEP 7 : INSTALL FRONT AND REAR COVER PANEL. The door cover must be zipped. Use rope (#24) to lift up the front cover (#23) from the center grommet and tie  it firm to the truss tube and spread toward both sides through each grommet along the tube. Insert the dropping tube (#15) into the bottom groove pocket on the door cover.
  • Page 16 (view from outside) PART PART ▶ www.tmgindustrial.com 15/20 TOLL FREE: 1-877-761-2819...
  • Page 17 STEP 8 : INSTALL THE TOP COVER. DO NOT INSTALL THE COVER DURING WINDY WEATHER! Unpack the top cover and place it along one of the long sides of the structure.  Use 3 to 5 ropes (#24) to pull the top cover (#22) the top of the structure, 2 or 3 people standing inside on ...
  • Page 18 STEP 9 : STRETCH AND TIGHTEN TOP COVER. The roof cover must be stretched and tied to the front and rear truss by rope going through the flap grommets  on the cover. Start from the top center and go toward both side on each end. Add or cut the rope as needed. Pull and stretch the cover enough only to take wrinkles out.
  • Page 19 STEP 10 : TENSION THE COVER ON THE STRUCTURE FROM BOTH SIDES. Insert tension tubes (#14) slowly into the bottom groove pocket on both long sides. Add the water plug (#21)  on the first tension tube to avoid tearing the fabric and add one to the end of last tube as well. Repeat the same step for the other side.
  • Page 20 STEP 11 : INSTALL RATCHET STRAPS. Stretch and adjust the cover from left and right, back and forth, to make sure it is square and centered. Cut the  groove pocket where it aligns with ratchet (#7A), and use tension band (#25) to pull tension tube (#14) toward the ratchet and secure it.

  • Page 21: After The Installation

    AFTER THE INSTALLATION Walk around and inspect the shelter periodically to make sure all components are still firmly secured and the whole shelter is well supported. Check all bolts and nuts as well as all connection points to make sure they are all in good position.
