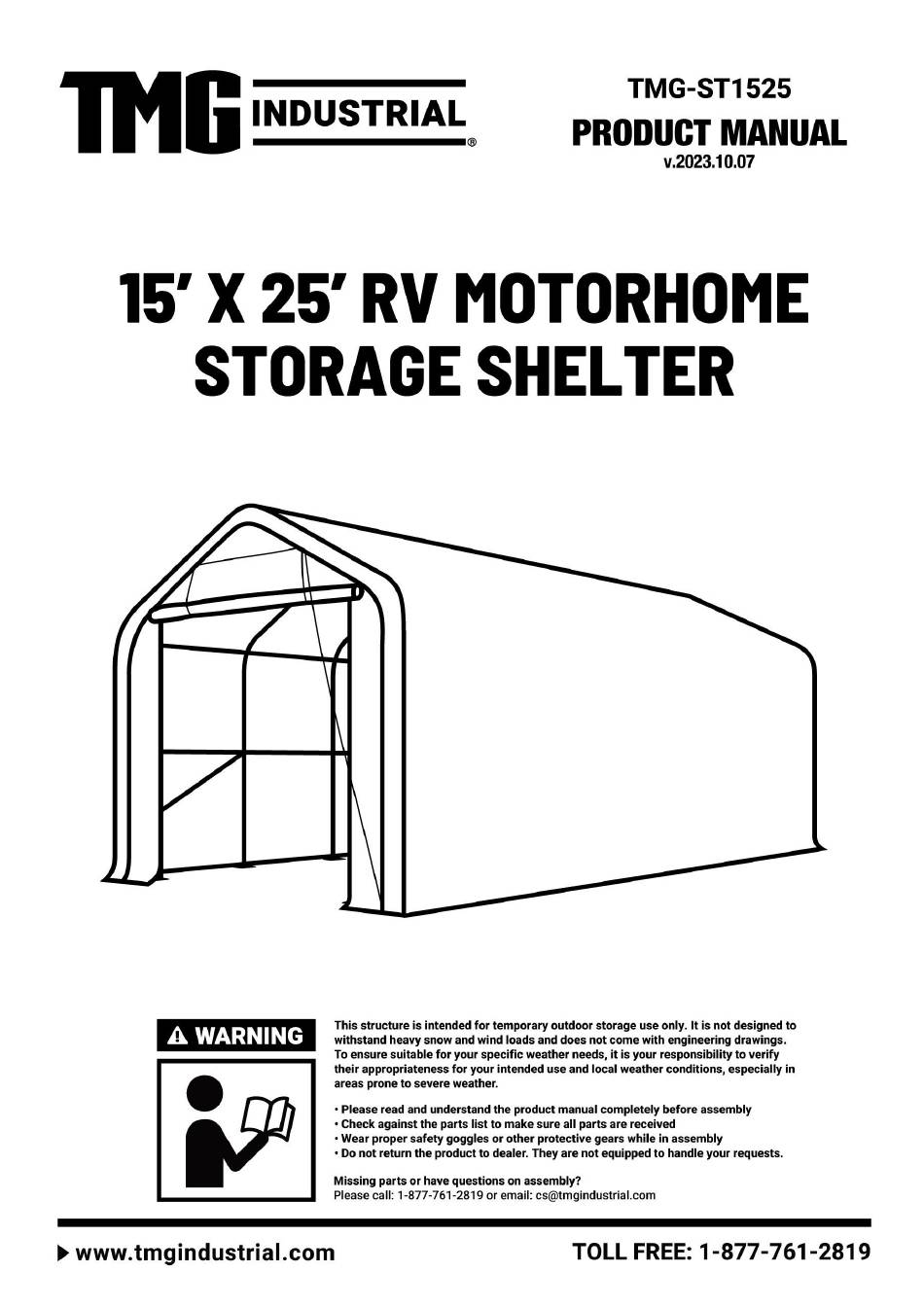

TMG -ST1525 Product Manual

15' x 25' rv motorhome storage shelter
Hide thumbs

Advertisement

Quick Links

Download this manual
www.tmgindustrial.com
0/24
TOLL FREE:1-877-761-2819

Advertisement

loading
Need help?

Need help?

Do you have a question about the TMG-ST1525 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TMG TMG-ST1525

Summary of Contents for TMG TMG-ST1525

  • Page 1 www.tmgindustrial.com 0/24 TOLL FREE:1-877-761-2819...

  • Page 2: Main Specifications

    MAIN SPECIFICATIONS : Assembly size : W4.57 x L7.5 x H4.26 (m) / 15 x24.6x 14 (ft)  Shoulder height : 3m / 9.8ft  Front roll up door : 3.3 x 3 (m) / 10.8 x 9.8 (ft)  CONCRETE FOUNDATION SIZE SEE BELOW FIGURE The layout of foundation (one).
  • Page 3 The layout of foundation(two).  Note: the ground anchor is installed on the cement block. www.tmgindustrial.com 2/24 TOLL FREE:1-877-761-2819...
  • Page 4 Baseplate layout.  PRIOR TO ASSEMBLY Please read the instructions carefully before installation. It is important to follow your local safety regulations and industry standards during installation. Regulations may include but are not limited to: Safety helmets, protective eyewear, and clothing ...
  • Page 5 TMG-ST1525 PART LIST PARTS GRAPHICAL DESCRIPTION LENGTH CODE Peak arch tube φ48xL1153mm Upper rafter tube φ48xL1180mm (middle truss and rear trusses) Upper rafter tube φ48xL1180mm (front truss) Shoulder tube φ48xL1789mm (middle truss) Shoulder tube φ48xL1789mm (front and rear trusses) Sidewall tube φ48xL1980mm...
  • Page 6 Ratchets Door frame lower tube φ48xL1975mm (front and rear trusses) Door frame upper tube φ48xL1346mm (front truss) Rear frame middle tube φ48xL2215mm Door frame upper horizontal tube φ42xL594mm (front truss) Door frame upper horizontal tube φ42xL1653mm (rear truss) Door frame lower horizontal tube φ42xL2243mm (rear truss) Ceiling crossbar...
  • Page 7 Half round head bolt M10x90mm Half round head bolt M8x70mm Hex bolt M10x90mm Hex bolt M10x80mm Hex bolt M10x30mm Hex bolt M10x50mm Nylon rope φ8xL13m Water plug φ32 Top cover W8.1xL11.66m Front cover panel W4.43xL4.51m Rear cover panel W4.43xL4.51m Braided rope φ8xL120m bundle Ratchet straps...

  • Page 8: Installation Steps

    INSTALLATION STEPS STEP 1 : REVIEW THE WHOLE STRUCTURE AND CHOOSE THE PROPER INSTALLATION SITE. Mark the ground in the final building location with a line showing the positions of base plates, front doors. All  lines should be drawn from center to center of all base plate tubes. Diagonal line X must be equal to Y. Installation diagram of expansion bolt.
  • Page 9 STEP 2 : ASSEMBLE ALL TRUSSES. The building includes 6 trusses : (1) front truss, (1) rear truss, and (4) middle trusses.  Install front truss.  PART PART www.tmgindustrial.com 8/24 TOLL FREE:1-877-761-2819...
  • Page 10 Install rear truss.  PART PART www.tmgindustrial.com 9/24 TOLL FREE:1-877-761-2819...
  • Page 11 Install (4) middle trusses.  PART PART 12x4 www.tmgindustrial.com 10/24 TOLL FREE:1-877-761-2819...
  • Page 12 Lay down all (6) trusses on the ground when the assembly is all completed and before moving to next step,  and then wrap (#26) around the sharp points of the joint to avoid friction between the fabric and the interface, resulting in fabric damage.
  • Page 13 STEP 3 : PUT UP THE FRONT (1 ) TRUSS. Use of a crane or forklift is recommended, otherwise a team can use ropes to lift the trusses, but you have to  make sure it is safe, and have enough manpower. We recommend 3 to 5 people to pull the truss up from different directions.
  • Page 14 STEP 4 : PUT UP THE REST TRUSSES. Refer to Step 3 to put up the rest trusses, connect all purlins (#5) with bolt (#17) and secure all bolts firmly on  each span before going to next truss. PART www.tmgindustrial.com 13/24 TOLL FREE:1-877-761-2819...
  • Page 15 STEP 5 : INSTALL THE DIAGONAL BRACING BARS (#13). Connect diagonal bracing bar (#13) on the first and last span between the shoulder tube and sidewall tube  (#3A and #4) with tube clamp (#13A), use bolt (#19A) . PART www.tmgindustrial.com 14/24 TOLL FREE:1-877-761-2819...
  • Page 16 STEP 6 : INSTALL THE REMAINING PARTS ON THE FRONTTRUSS. PART PART www.tmgindustrial.com 15/24 TOLL FREE:1-877-761-2819...
  • Page 17 STEP 7 : INSTALL THE REMAINING PARTS ON THE REAR TRUSS. PART PART www.tmgindustrial.com 16/24 TOLL FREE:1-877-761-2819...
  • Page 18 STEP 8 : INSTALL FRONT COVER PANEL. The door cover must be zipped. Use rope (#24) to lift up the front and rear cover (#23) from the center  grommet and tie it firm to the truss tube and spread toward both sides through each grommet along the tube. Insert the dropping tube (#15) into the bottom groove pocket on the door cover.
  • Page 19 PART PART www.tmgindustrial.com 18/24 TOLL FREE:1-877-761-2819...
  • Page 20 STEP 9 : INSTALL REAR COVER PANEL. The door cover must be zipped. Use rope (#24) to lift up the rear cover (#23A) from the center grommet and  tie it firmly to the truss tube and spread toward both sides through each grommet along the tube. PART www.tmgindustrial.com 19/24...
  • Page 21 STEP 10 : INSTALL THE TOP COVER . DO NOT INSTALL THE COVER DURING WINDY WEATHER! Unpack the top cover and place it along one of the long sides of the structure.  Use 3 to 5 ropes (#24) to pull the cover over the top of the structure, 2 or 3 people standing inside on ladders ...
  • Page 22 STEP 11 : STRETCH AND TIGHTEN TOP COVER. The roof cover must be stretched and tied to the front and rear truss by rope going through the flap grommets  on the cover. Start from the top center and go toward both side on each end. Add or cut the rope as needed. Pull and stretch the cover enough only to take wrinkles out.
  • Page 23 STEP 12 : TENSION THE COVER ON THE STRUCTURE FROM BOTH SIDES. Insert tension tubes (#14) slowly into the bottom groove pocket on both long sides. Add the water plug (#21)  on the first tension tube to avoid tearing the fabric and add one to the end of last tube as well. PART www.tmgindustrial.com 22/24...
  • Page 24 STEP 13 : INSTALL RATCHET STRAPS. Stretch and adjust the cover from left and right, back and forth, to make sure it is square and centered. Cut the  groove pocket where it aligns with ratchet (#7A), and use strap (#25) to pull tension tube (#14) toward the ratchet and tie it firmly there.

  • Page 25: After The Installation

    AFTER THE INSTALLATION. Walk around and inspect the shelter periodically to make sure all components are still firmly secured and the whole shelter is well supported. Check all bolts and nuts as well as all connection points to make sure they are all in good position.
