Summary of Contents for Inspire ACB1

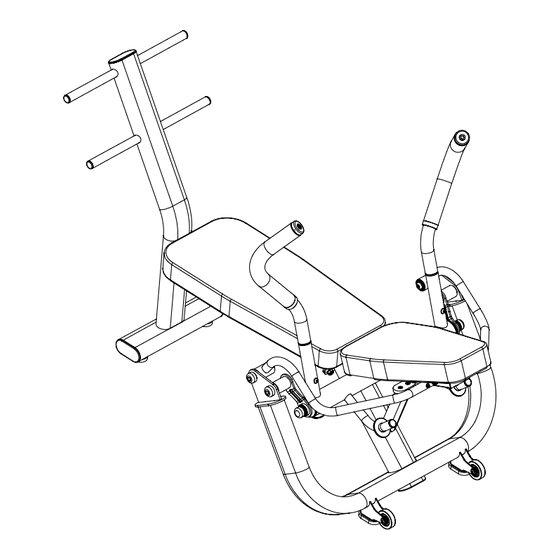

- Page 1 Инструкция Скамья для пресса Inspire ACB1 Полезные ссылки: Скамья для пресса Inspire ACB1 - смотреть на сайте...
- Page 2 ASSEMBLY & OPERATION MANUAL RECORD SERIAL NUMBER HERE www.inspirefitness.net by Health In Motion LLC Jan. 2015...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Section Description……………………………………………………. Page Important Safety Instructions………………………………………. Parts List…………………………………………………………………………. Exploded Diagram…………………………………………………………. Assembly Instructions……………………………………………………. Decal Reference……………………………………………………………… Decal Placement……………………………………………………………… General Maintenance Information…….…………………………… Limited Warranty…………………………………………………………….. -
Page 4: Important Safety Instructions
• Keep the ab crunch bench away from walls and clear of any obstructions and furniture. • Stop immediately if you experience shortness of breath, pain, or dizziness during your workout. Inspire Fitness strongly recommends consulting your doctor before starting an exercise program. TOOLS REQUIRED FOR ASSEMBLY •... -
Page 5: Parts & Hardware List
PARTS & HARDWARE LIST Item # Description Part Number Quantity Front Support Assembly GM540-300-001PZ Knurled Foot Tube Assembly GM540-381-002PZ Seat Assembly GM540-240-001 Rear Support Assembly GM540-300-002PZ Left Connection Assembly GM540-320-001PZ Right Connection Assembly GM540-320-002PZ Flexible Connection Assembly GM540-380-002PZ Pivot Assembly GM540-380-001PZ Extension Assembly GM540-380-003... -
Page 6: Exploded Diagram
11 11 10 10 13 13 13 13 10 10 10 10 10 13 13 10 10 10 10 12 12 10 10 10 10 10 10 14 14 12 12... -
Page 7: Assembly Instructions
Step 1 Attach the Knurled Foot Tube Assembly (2) to the Front Support Assembly (1) using 1- M10x25 Hex Screw (9) and 1- M10 Flat Washer (10). Tighten all hardware now. PAGE 4... - Page 8 11 11 Step 2 Attach the Seat Assembly (3) to the Front Support Assembly (1) using 2- M10x70 Hex Screws (11), 4- M10 Flat Washers (10) and 2- M10 Lock Nuts (12). Hand tighten now. PAGE 5...
- Page 9 13 13 13 13 10 10 10 10 12 12 10 10 10 10 12 12 Step 3 Attach the Rear Support Assembly (4) to the Seat Assembly (3) using 4- M10x25 Hex Bolts (13), 8- M10 Flat Washers (10) and 4- M10 Lock Nuts (12). Tighten all hardware from Steps 2 &...
- Page 10 Step 4 Attach the Seat Pad Assembly (5) to the Seat Assembly (3) using 4- M10x25 Hex Bolts (13) and 4- M10 Flat Washers (10). Tight all hardware now. PAGE 7...
- Page 11 Step 5 Attach the Head Pad Assembly (6) to the Rear Support Assembly (4) using 2- M10x55 Hex Bolts (14) and 2- M10 Flat Washers (10). Tight all hardware now. PAGE 8...
- Page 12 Step 6 Attach Left Handlebar Assembly (7) and Right Handlebar Assembly (8) to the Rear Support Assembly (4) using 2- M8x20 Hex Screws (15) and 2- M8 Flat Washers (16) on each side. Tight all hardware now. PAGE 9...
-
Page 13: Decal Reference
DECAL REFERENCE Page 10... -
Page 14: Decal Placement
DECAL PLACEMENT ACB Badge "Demonstration Sticker" (underneath the ACB badge) "Warning, Pinch Point!" (on the bend) "Warning, Pinch Point!" (on the bend) "Warning Label" (on the Rear Support Assembly) ACB Serial Number PAGE 11... -
Page 15: General Maintenance Information
GENERAL MAINTENANCE INFORMATION Warning: DO NOT place styrofoam or printed materials on the orthopedic seat pads. Over time, these may stick to the pads and mar the surface. Do not leave items sitting on the orthopedic seat pads, these pads have a special density that takes shape to objects and small objects will leave imprints in the surface that may take time to come out. -
Page 16: Limited Warranty
LIMITED WARRANTY In-Home Lifetime Warranty. This Warranty applies only in the United States to Inspire Strength products manufactured or distributed by Health In Motion LLC. The warranty period to the original purchaser is lifetime of the original purchaser. Health In Motion warrants that the Product you have purchased for non-commercial, personal, family or household use from Health In Motion LLC or from an authorized Health In Motion reseller is free from defects in materials or workmanship under normal use during the warranty period.
