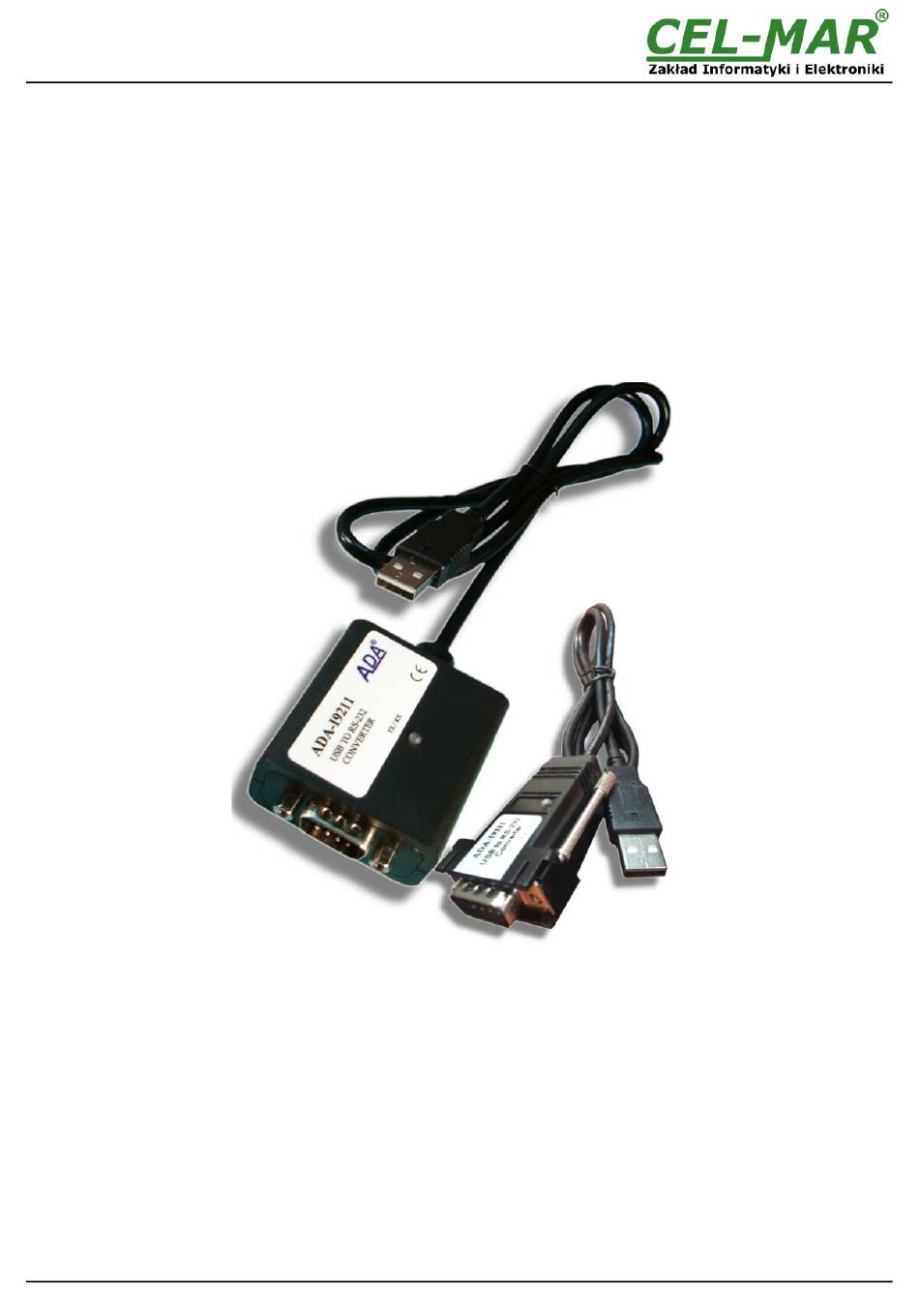

ADA-I9211

User Manual

ADA-I9211

USB to RS-232 Converter

io_ada-i9211_v1.00_en

Table of Contents

Need help?

Do you have a question about the ADA-I9211 and is the answer not in the manual?

Questions and answers

Summary of Contents for CEL-MAR ADA-I9211

Page 2: Table Of Contents
ADA-I9211 Contents 1. GENERAL INFORMATION..................................3 1.1. WARRANTED INFORMATION............................... 3 1.2. GENERAL CONDITIONS FOR SAFE USE............................ 3 1.3. CE LABEL....................................... 3 1.4. ENVIRONMENTAL PRESERVATION............................3 1.5. SERVICE AND MAINTENANCE..............................3 1.6. PACK CONTENTS..................................3 2. PRODUCT INFORMATION..................................3 2.1. PROPERTIES....................................3 2.2.
Page 3: General Information
1.1. WARRANTED INFORMATION ADA-I9211 converter is covered by a two year warranty on parts and operation from date of sale. In case of being damaged it will be repair or the damaged component will be replace. The warranty does not cover damage caused from improper use, materials consumption or any unauthorized changes.
Page 4 ADA-I9211 ADA-I9211 supports drivers for Windows 98, ME, 2000, XP, 2003, Vista, Win7, 2008, Win8, Win10, Win11 and installation will add the additional COM port about the next free number, witch can be used as standard COM port. It is virtual COM port therefore some software use DOS can work improperly.
Page 5: Supported Operating Systems
- Mac: OS X 10.3 to 10.8, OS X 10.9 and higher. 3. INSTALLATION This chapter will show you correctly connection of the ADA-I9211 to USB and RS-232 interface. 3.1. CONVERTER CONNECTION TO RS-232 INTERFACE OF DEVICE Connection should be done in use of shielded cable (RS232 extender) ended DB-9M male plug, max. lengths up to 15m.
Page 6: Connection Converter To Computer Usb Interface
Connect the converter to the computer's USB port and continue following the installation wizard's instructions. 4.1. DRIVERS INSTALLATION IN SYSTEM WINDOWS 10/11 VIA INTERNET To install drivers for ADA-I9211 in Windows 10/11, connect the converter to the USB port and wait until the system downloads the latest drivers from the Internet and installs them.
Page 7 ADA-I9211 Select STANDARD Drivers and press [Next] Press [Install]...
Page 8 ADA-I9211 Press [Next], will be installed Drivers for USB Bus.
Page 9 ADA-I9211 Press [Install this driver software anyway]. Installation of drivers for USB Bus will start.
Page 10 ADA-I9211 Press [Install this driver software anyway]. Installation of drivers for Virtual Port will start. Press [Finish]...
Page 11 COM port was assigned to converter. After this installation, RS232 port of ADA-I9211 converter is available in the system as normal COM port. You have to remember about specified baud rate for communication.
Page 12: Driver Uninstallation
Administrator, c/ select menu Start > Control Panel > Programs > Uninstall, d/ select from Windows Driver Package – CEL-MAR ADA – Virtual USB Serial Port, e/ press [Uninstall/Change], Virtual USB Serial Port driver will be uninstalled...
Page 13: Emergency Driver Uninstallation
ADA-I9211 f/ select from the list Windows Driver Package – CEL-MAR ADA – USB Serial Converter g/ press [Uninstall/Change], driver converter of USB Bus will be uninstalled, h/ after uninstallation reboot the computer. 5.2. EMERGENCY DRIVER UNINSTALLATION If there are problems with property operation of drivers or converter, and or on computer was installed drivers other devices this type, an operating system should be cleaned (files&entries in system registers) by the use of special software.
Page 14: Using
Description Tx – yellow Data transmitting form ADA-I9211 via RS-232 port to a RS-232 device. Rx – red Data receiving from RS-232 Device connected to RS232 the converter port. LED ON - status signal equal 1 logical LED OFF - status signal equal 0 logical.
Page 15: Specification
ADA-I9211 9. SPECIFICATION TECHNICAL DATA Transmission Parameters Interface RS-232 Connector USB A-type (male) DSUB-9M (male) connector Line length up to 5m with additional cable up to 15 m Maximum number of connected devices Standard extension USB cable A-A DB9F/DB9M multi-wire cable 9x0,34...
Page 16 We hope that, this user manual helped in connecting and starting ADA-I9211 converter. We also wish to inform You, that CEL-MAR Company is a manufacturer of the widest selection of data communications products in the world in applications such as: data transmission converters in RS232, RS485, RS422, USB, Current Loop, Fibre-Optic and Ethernet Converters and many others.

This manual is also suitable for:

Ada-i9211-1 Ada-i9211-2
