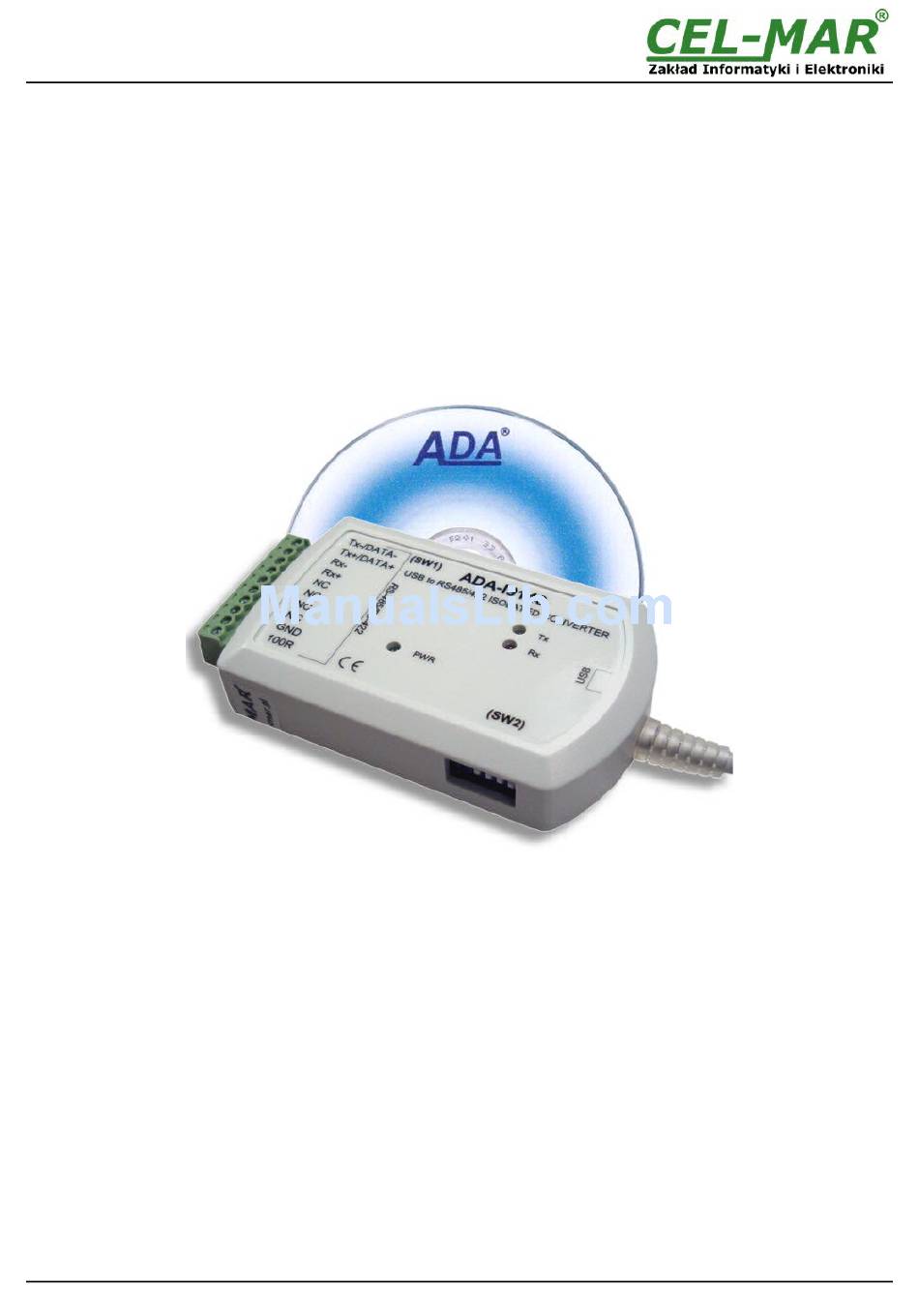

Page 1: User Manual
ADA-I9140 User manual ADA-I9140 USB to RS-485 / RS-422 converter io_ada-i9140_v3.24_en Copyright © 2001-2017 CEL-MAR sp.j. -
Page 2: Table Of Contents
ADA-I9140 Contents 1. GENERAL INFORMATION..................................3 1.1. WARRANTED INFORMATION............................... 3 1.2. GENERAL CONDITIONS FOR SAFE USE............................ 3 1.3. CE LABEL....................................... 3 1.4. ENVIRONMENTAL PRESERVATION............................3 1.5. SERVICE AND MAINTENANCE..............................3 1.6. PACK CONTENTS..................................3 2. PRODUCT INFORMATION..................................3 2.1. PROPERTIES....................................3 2.2. -
Page 3: General Information
1.1. WARRANTED INFORMATION The ADA-I9140 converter is covered by a two year warranty from date of sale. In case of being damaged it will be repair or the damaged component will be replace. The warranty does not cover damage caused from improper use, materials consumption or any unauthorized changes. -
Page 4: Description
RS485/422 Bus provide plug-in screw terminal block. Together with the ADA-I9140 we provide the drivers, which after installation, create in operating system additional COM port on the next free number e.g. COM3. It can be use as standard COM port but it isn't hardware port but virtual, create in Windows system. This is the reason why some applications running in DOS and use this port, can operate improperly. -
Page 5: Echo" Mode Configuration And Rs-485/Rs-422 Bus Termination
ADA-I9140 can operate on RS422 bus or RS485 bus - both buses need suitable wiring. 4.1.1. CONNECTION TO RS422 OR RS485 (4-WIRE) BUS Examples of connection ADA-I9140 to RS422 4-wire bus or RS485(4W) in point-to-point and multi-point topology are shown below. Device with... -
Page 6: Connection To Rs485 2 Wire Bus
ADA-I9140 Device with RS422 / ADA-I9140 Computer RS485(4W) interface RS422/RS485 RS422/RS485 Interface (4W) Terminal (4W) Terminal RTS+/DTR+ CTS+/DSR+ RTS-/DTR- CTS-/DSR- CTS+/DSR+ RTS+/DTR+ CTS-/DSR- RTS-/DTR- Fig 3. Example of connection in Point-to-Point topology; Tx, Rx, RTS/DTR, CTS/DSR signals Computer ADA-I9140 RS485 (4W) -
Page 7: Connection To Usb Computer Port
ADA-I9140 4.3. CONNECTION TO USB COMPUTER PORT ADA-I9140 connection to computer should be done by use USB cable with A type connector. 4.4. POWER SUPPLY The converter is powered from USB port of PC. After connection to USB port, the green LED PWR should be light. If doesn't check:... - Page 8 ADA-I9140 Press [Install]...
- Page 9 ADA-I9140 Press [Next], will be installed Drivers for USB Bus.
- Page 10 ADA-I9140 Press [Install this driver software anyway]. Installation of drivers for USB Bus will start.
- Page 11 ADA-I9140 Press [Install this driver software anyway]. Installation of drivers for Virtual Port will start. Press [Finish]...
- Page 12 ADA-I9140 Press [Finish]. The driver for ADA-I9140 have been installed. This can be checked in “Uninstall or change a program“. Now connect ADA-I9140 to computer port. After connection will appear the Tool tip with [Your device is ready to use]. To see the details press the Tooltip, and will appear...
-
Page 13: Driver Uninstallation
ADA-I9140 After this installation, RS485/422 port of ADA-I9140 converter is available in the system as normal COM port. It should be remembered about specified baud rate for communication. If during installation was selected driver for Standard baud rates, it is possible to use: 300 bps, 600 bps, 1200 bps, 2400 bps, 4800 bps, 9600 bps, 19200 bps, 38400 bps, 57600 bps, 115200 bps, 230400 bps, 460800 bps, 921600 bps. -
Page 14: Emergency Driver Uninstallation
ADA-I9140 f/ select from the list Windows Driver Package – CEL-MAR ADA – USB Serial Converter g/ press [Uninstall/Change], driver converter of USB Bus will be uninstalled, h/ after uninstallation reboot the computer. 6.3. EMERGENCY DRIVER UNINSTALLATION If there are problems with correct operation of drivers or converter and or on the computer was installed driver other devices this type, it is possible to use the special software form delivered CD-ROM to clean the system form files and entries in the system registry. -
Page 15: Using
During data transmission LEDs should blink and they indicate appropriately:: Description Signalling of Power Supply Signalling of data receiving through ADA-I9140 from RS485/422 port. Signalling of data transmitting from ADA-I9140 through RS485/22 port. Signalling RTS line condition on RS485/RS422 port... -
Page 16: Specification
Thank you for purchasing CEL-MAR Company product. We hope that the ADA-I9140 converter and this user manual help simplify your network of 1-Wire sensor for industrial applications. We also wish to remind you that CEL-MAR Company are a manufacturer of the widest selections of data communications products in the world in applications such as: data transmission converters in RS232, RS485, RS422, USB, Current Loop, Fibre-Optic and Ethernet Converters and many others.
