- Page 1 ORIGINAL INSTRUCTIONS Cordless Circular Saw Model FSC20V165 Instruction Manual CAUTION: READ THIS INSTRUCTION MANUAL BEFORE USE THIS MACHINE BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France MADE IN PRC...
-
Page 2: Safety Instructions
1. SAFETY INSTRUCTIONS WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. -
Page 3: Specific Safety Rules
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. - Page 4 - If the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the blade can dig into the top surface of the wood causing the blade to climb out of the kerf and jump back toward the operator. Kickback is the result of saw misuse and/or in corrects operating procedures or conditions and can be avoided by taking proper precautions as given below.
- Page 5 knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Page 6 Insert the battery packet into the charger. Follow the guidelines provided concerning polarity. ▪Always remove battery packet before working on the machine ▪When the battery is outside the drill, cover the contacts to avoid short circuits (e.g. from tools) ▪Do not throw batteries into water or fire, risk of explosion! ▪Protect the battery from impacts, and don't open it.
-

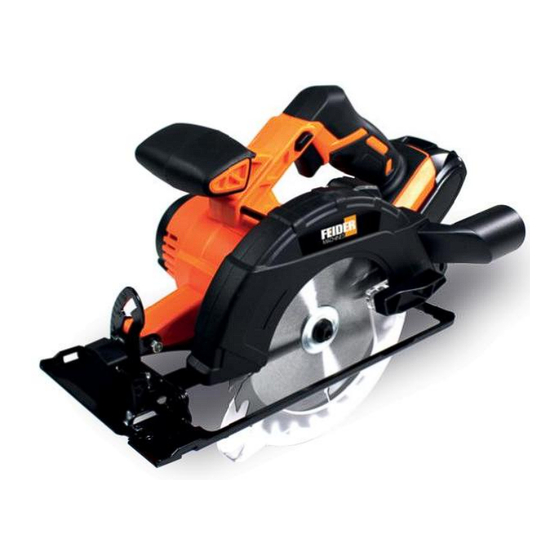

Page 7: Your Product
2. YOUR PRODUCT a. Description Front handle 13. Parallel guide Lock-off button 14. Parallel guide locking knob On/Off trigger 15. Adjustment knob for miter setting Rear handle 16. Upper blade guard Battery release catch(delivered without battery and 17. Blade washer charger) Li-on battery(delivered without battery and charger) 18. - Page 8 b. Technical specifications Tension 20Vd.c. No load speed (/min) 3800 Dia. of saw blade Ø165 (mm) 54mm (90º) Cutting depth 40mm (45º) LpA=86 dB(A), K=3dB(A) Sound pressure level LwA=97dB(A), K=3dB(A) Sound power level Main handle: 5.684m/s , K=1.5 m/s Vibration Auxiliary handle: 5.955 m/s , K=1.5 m/s Information...
- Page 9 3. ASSEMBLY...
- Page 11 a. Charging (Attention: Charger and battery not included in this model) 1). Take the battery pack out of the equipment. Do this by pressing the side pushlock buttons. 2). Check that your mains voltage is the same as that marked on the rating plate of the battery charger. Insert the power plug of the charger into the socket outlet.
-
Page 12: Attaching The Blade
b. ATTACHING THE BLADE A 6 1/2 in. blade is the maximum blade capacity of the saw. Never use a blade that is too thick to allow outer blade washer to engage with the flats on the spindle. Larger blades will come in contact with the blade guard, while thicker blades will prevent blade screw from securing the blade on the spindle. -
Page 13: Operation
4. OPERATION Warning! Before each use always check the operation of the lower guard before connecting the battery to the Circular Saw. Do not use the Circular Saw if the lower guard does not close smoothly over the saw blade and returns fully to the closed position. Keep blades clean &... -
Page 14: Maintenance And Storage
e. ANGLE OF CUT 0-45º To adjust the angle of cut between 0-45° slacken the adjustable angle of cut locking knob, Fig.17. The base plate assembly will now pivot between 0- 45°. Set the desired cutting angle by using degree scale at the front of the machine and tighten locking knobs. -
Page 15: Declaration Of Conformity
ZI, 32 rue Aristide Bergès – 31270 Cugnaux – France Declare that the following machine: Cordless Circular Saw FSC20V165 Serial number: 20211001223-20211001722 Is in conformity with the Directive Machine2006/42/EC and with the regulation transposing it. Also in conformity with the following Directives:... -
Page 16: Warranty
8. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identifed as defective by the designated distributor. -
Page 17: Product Failure
9. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 18: Warranty Exclusions
10. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
