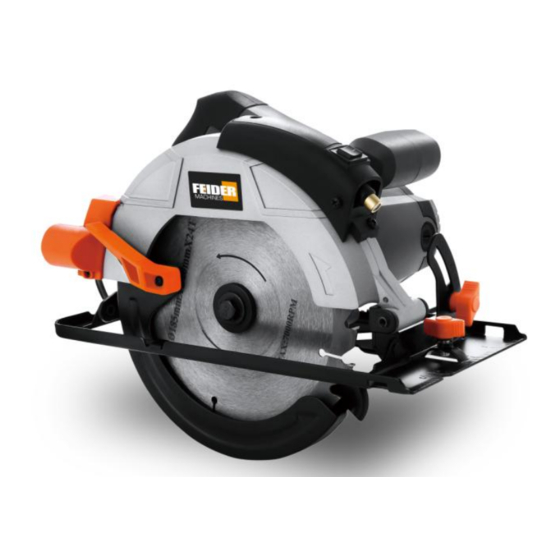

- Page 1 Instruction Manual Circular Saw Model: FSC1485 ORIGNAL INSTRUCTIONS BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France MADE IN PRC CAUTION: READ THE MANUAL INSTRUCTIONS BEFORE USE THE TOOL .
- Page 2 GENERAL SAFETY RULES General power tool safety warnings WARNING Read safety warnings, instructions, illustrations specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"...
- Page 3 e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.
- Page 4 4) Power tool use and care a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off.
- Page 5 Safety instructions for all saws Cutting procedures a) DANGER: Keep hands away from cutting area and the blade. Keep your second hand on auxiliary handle, or motor housing. If both hands are holding the saw, they cannot be cut by the blade. NOTE For circular saws with a maximum blade diameter of 140 mm or smaller, the words "Keep your second hand on auxiliary handle, or motor housing"...
- Page 6 when the blade is pinched or jammed tightly by the kerf closing down, the blade stalls and the motor reaction drives the unit rapidly back toward the operator; if the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the blade can dig into the top surface of the wood causing the blade to climb out of the kerf and jump back toward the operator.
- Page 7 Safety instructions for saws with pendulum guard and saws with tow guard Lower guard function a) Check the lower guard for proper closing before each use. Do not operate the saw if the lower guard does not move freely and close instantly. Never clamp or tie the lower guard into the open position.
- Page 8 Never hold piece being cut in your hands or across your leg. Secure the workpiece to a stable platform. It is important to support the work properly to minimize body exposure, blade binding, or loss of control. Hold tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord.
- Page 9 17. Make sure to use a blade adapted to the material to be cut. Read and compare the information in this manual with the information on the saw blade. 18. Use only blades that are marked with a speed equal to or greater than the speed on the tool.
- Page 10 DESCRIPTION 1. Lever of lower guard 2. Blade clamp bolt 3. Carter of protection 4. Saw blade 5. Base plate 6. Lock knob for angle adjustment 7. Miter scale 8. Laser 9. Laser switch 10. Handle 11. Trigger switch...
-
Page 11: Operation
ASSEMBLY Check for damage to the tool, parts and accessories which may have occurred during transportation. Take some time to read this manual carefully and understand all the content prior to assembly and operation. CAUTION! Always ensure that the tool is switched off and unplugged from the mains supply before assembly. - Page 12 Release the trigger to turn the tool off. Depth Adjustment Loosen the depth adjustment screw using the depth locking lever. Hold the base plate flat against the body of the work piece and lift the body of the saw until the blade is at the right depth. Tighten the depth locking lever.
-
Page 13: Maintenance
guard by using the lower guide lever. With the blade is barely above the material to be cut, start the saw and allow the blade to attain full speed. Using the front end of the shoe as a pivot point, lower the blade gradually onto the material which being cut. -
Page 14: Specifications
Heavy sparks occur around the motor area. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. SPECIFICATIONS Model: FSC1485 Voltage: 230-240V~50Hz Rated Power: 1400 W Diameter: ɸ 185mm Max. - Page 15 Information The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another; The declared vibration total value may also be used in a preliminary assessment of exposure.
- Page 16 Read instructions manual : Radiation laser –Do not stare into the beam – Class II laser product DISPOSAL Electrical products should not be discarded with household products. According to the European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation into national law, electrical products used must be collected separately and disposed of at collection points provided for this purpose.
- Page 17 32, rue Aristide Bergès –Z1 31270 Cugnaux - France Tel: +33 (0)5.34.508.508 Fax: +33 (0)5.34.508.509 Declare that the below machine: CIRCULAR SAW FSC1485 20210838999-20210839498 Serial number: Is in conformity with the following Directives: ROHS Directive (EU)2015/863 amending 2011/65/EU MACHINE Directive 2006/42/EC...
-
Page 18: Warranty
WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identifed as defective by the designated distributor. -
Page 19: Product Failure
PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 20: Warranty Exclusions
WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
