EN
ORIGINAL INSTRUCTIONS
Instruction Manual

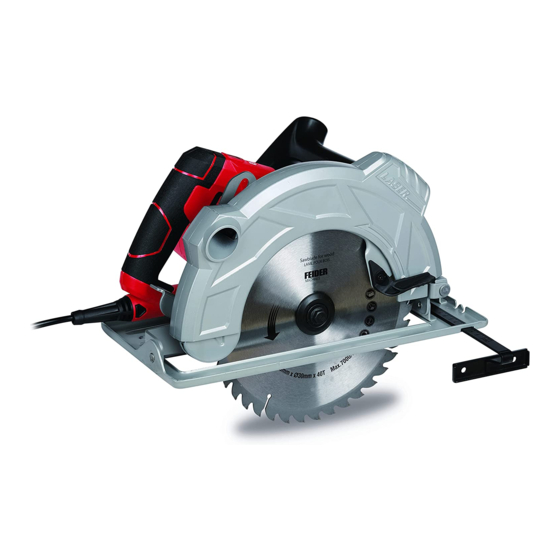

Circular Saw
Model FSC20235
BUILDER SAS
32, rue Aristide Bergès-ZI 31270 Cugnaux, France
MADE IN PRC
Warning: Please read the manual carefully before using the unit!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FSC20235 and is the answer not in the manual?

Questions and answers

Related Manuals for Feider Machines FSC20235

Summary of Contents for Feider Machines FSC20235

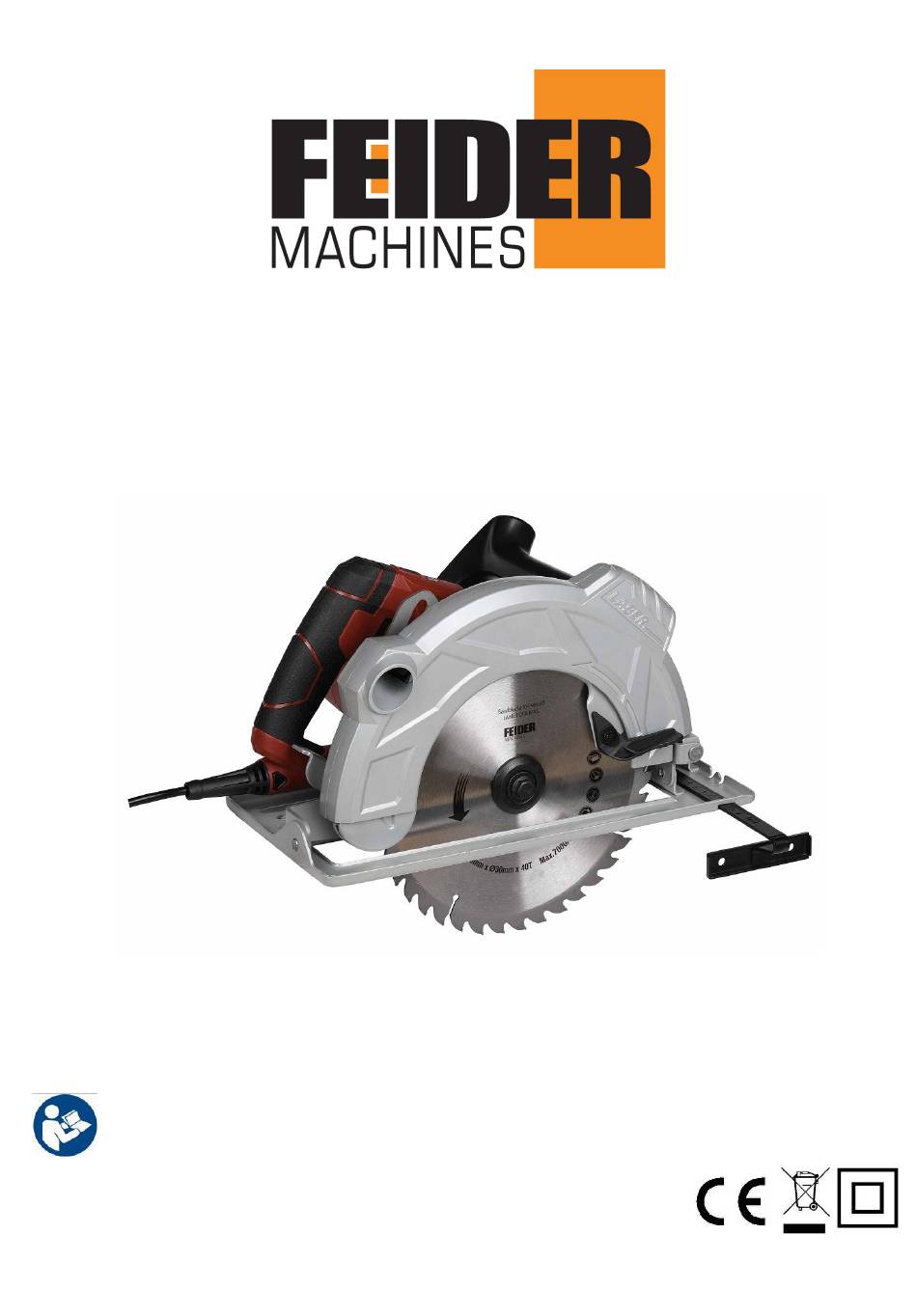

  • Page 1 ORIGINAL INSTRUCTIONS Instruction Manual Circular Saw Model FSC20235 BUILDER SAS 32, rue Aristide Bergès-ZI 31270 Cugnaux, France MADE IN PRC Warning: Please read the manual carefully before using the unit!
  • Page 2 Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6 Fig.7 Fig. 8...
  • Page 3 1. SAFETY INSTRUCTIONS General power tool safety warnings WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"...
  • Page 4 3) Personal safety a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
  • Page 5 d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation.
  • Page 6 also make exposed metal parts of the power tool "live" and could give the operator an electric shock. f) When ripping, always use a rip fence or straight edge guide. This improves the accuracy of cut and reduces the chance of blade binding. g) Always use blades with correct size and shape (diamond versus round) of arbour holes.
  • Page 7 d) Support large panels to minimise the risk of blade pinching and kickback. Large panels tend to sag under their own weight. Supports must be placed under the panel on both sides, near the line of cut and near the edge of the panel. e) Do not use dull or damaged blades.
  • Page 8 and make sure it can move freely and does not touch the blade or any other parts in all angles and depths of cutting. Do not operate the saw if the lower guard does not move and close freely. Never clamp or tie the lower guard into the open position. Adjust the cutting depth to the thickness of the workpiece.
  • Page 9 produce narrow kerfs which may cause excessive friction, blade binding or kickback etc. 16. Always use blades with correct size arbor holes, never use defective or incorrect blade washers or bolts.Do not use abrasive discs in place of the saw blades specified in this manual.
  • Page 10 Do not dispose of old appliances with domestic rubbish Double insulation LASER RADIATION – DO NOT STARE INTO THE BEAM – CLASSE 2 LASER PRODUCT 3. Technical Specification: Model FSC20235 Rated voltage /frequency 230-240V˜ , 50 Hz Rated power (W) 2000W No load speed (/min) 5000/min Dia.
  • Page 11 Main handle: a :4.732m/s Vibration emission vaule Auxiliary handle: a :4.447m/s (cutting wood) Uncertainties K=1.5 m/s 85mm Max.cutting depth (mm) 56mm Standard accessories wrench --1pc parallel guide--1pc Wood-cutting saw These and other accessories are available through your authorized dealer. When buying accessories always consider the technical requirements of this product.
  • Page 12 5. Functional Description (Fig. 1&2 ) 12. Parallel guide 1. Lever of lower guard 13. Outer flange 2. Dust extraction outlet 14. Blade clamp bolt 3. Saw blade 15. Lower guard 4. Laser generator switch 16. Spindle lock button 5. Power-on indicator 17.
  • Page 13 2) Hold the baseplate flat against the edge of the work piece and lift the body of the saw until the blade is at the right depth determined by the depth of cut scale (20) (align the scale line). 3) Tighten the lock lever for depth adjustment. Angle adjustment (Fig.

  • Page 14: Operation

    6) Align the beam with the mark on the work-piece and slowly push the saw forward using both hands, keeping the red light beam on the mark. 7) Switch off the laser beam when completion of the cut. 7. OPERATION General cutting 1) When starting, always hold the saw handle with one hand and the auxiliary handle (6) with the other hand.
  • Page 15 or performing any maintenance the saw may be cleaned most effectively using compressed air. Always wear safety goggles when using compressed air. If compressed air is not available, use a brush to remove dust and chips from the saw. 2) Motor ventilation vents and switch levers must be kept clean and free of foreign matter.
  • Page 16 9. DISPOSAL Electrical products should not be discarded with household products. According to the European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation into national law, electrical products used must be collected separately and disposed of at collection points provided for this purpose. Talk with your local authorities or dealer for advice on recycling.
  • Page 17 32, rue Aristide Bergès –Z1 31270 Cugnaux - France Tel: +33 (0)5.34.508.508 Fax: +33 (0)5.34.508.509 Declare that the below machine: CIRCULAR SAW FSC20235 Serial number: 20210701689-20210702188 Is in conformity with the following Directives: ROHS Directive (EU)2015/863 amending 2011/65/EU MACHINE Directive 2006/42/EC...

  • Page 18: Warranty

    11. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identifed as defective by the designated distributor.

  • Page 19: Product Failure

    12. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.

  • Page 20: Warranty Exclusions

    13. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
