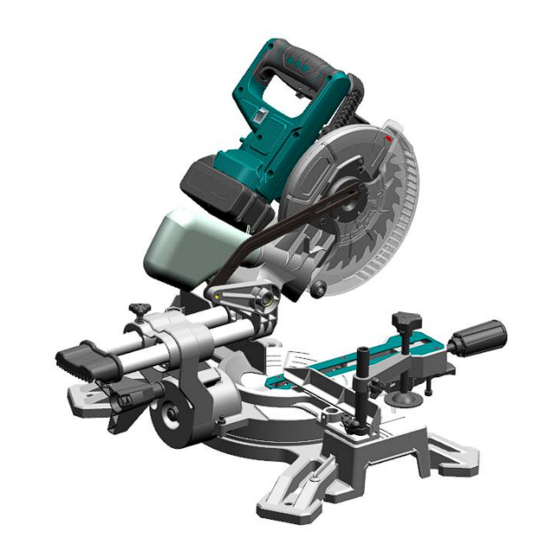

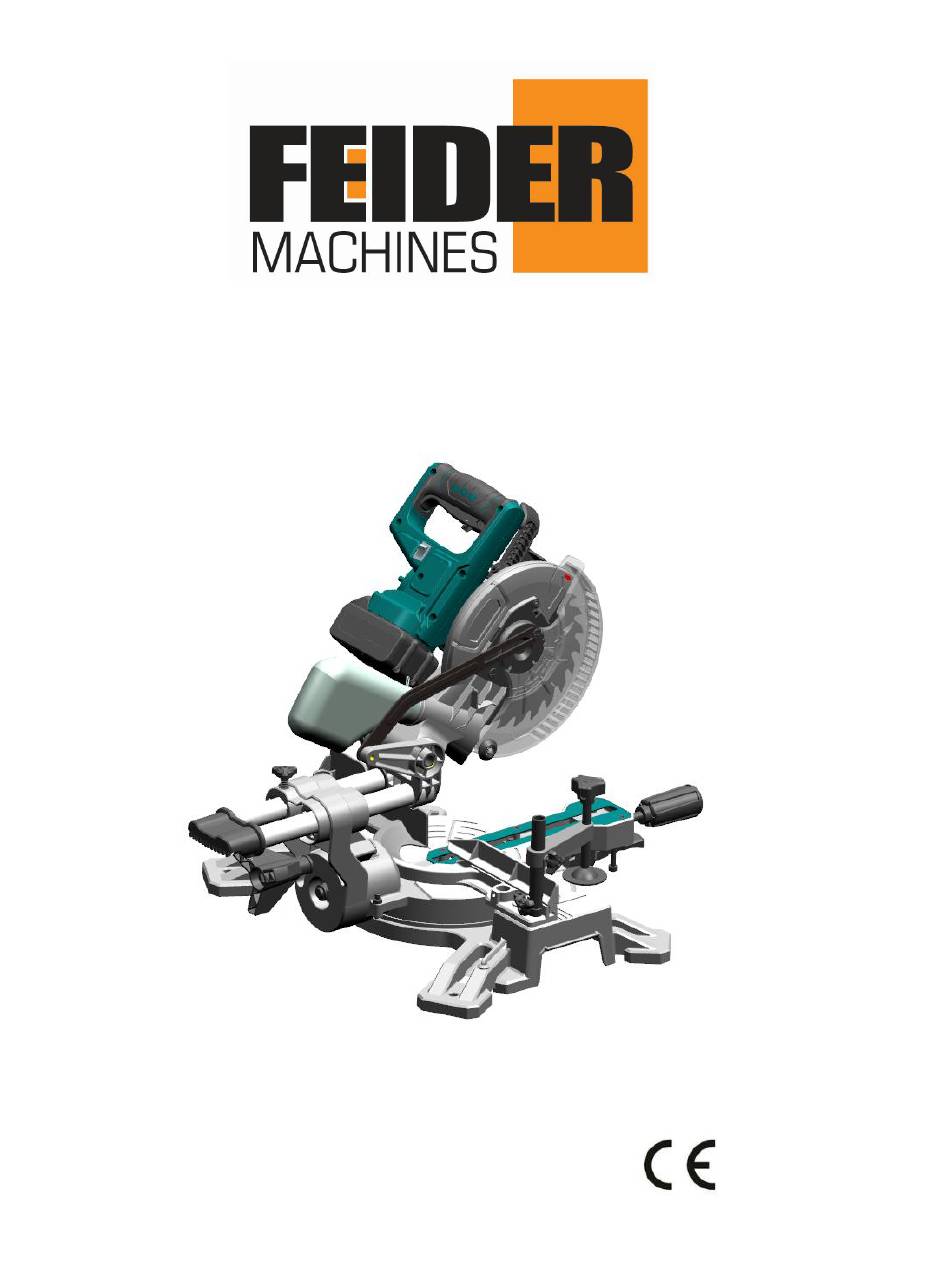

- Page 1 ORIGINAL INSTRUCTIONS INSTRUCTIONS MANUAL CORDLESS MITRE SAW FSOR20V-U WARNING: READ THE FOLLOWING INSTRUCTIONS BEFORE USE THIS MACHINE BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France MADE IN PRC 2020...
-
Page 2: Table Of Contents
CONTENTS • SAFETY INSTRUCTIONS FOR BATTERY CHARGER • SYMBOLS • KNOW YOUR PRODUCT • SPECIFICATIONS • INTENDED USE • NOT INTENDED USE • RESIDUAL RISKS • GENERAL SAFETY INSTRUCTIONS • IMPORTANT SAFETY INSTRUCTIONS FOR ALL BATTERY PACKS • SAFETY RULES FOR LASER LIGHTS •... -
Page 3: Safety Instructions For Battery Charger
SAFETY INSTRUCTIONS FOR BATTERY CHARGER This charger can be used by children aged from 8 years and above and persons with reduced physical, sensory mental capabilities lack experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe understand hazards involved. - Page 4 SYMBOLS Danger! - Read the operating instructions to reduce the risk of inquiry Caution! Wear ear-muffs. The impact of noise can cause damage to hearing. Caution! Wear a breathing mask. Caution! Wear safety goggles. Caution! Risk of injury! Do not reach into the running saw blade. Caution: Laser radiation.
-
Page 5: Know Your Product
KNOW YOUR PRODUCT PARTS LIST 1. Laser light 19. Switch trigger 2. Laser light on/off switch 20. Mitre lock knob 3. Saw arm 21. Mitre latch 22. Spindle lock 4. Release knob 23. Slide bars 5. Operating handle 24. Slide lock 6. -
Page 6: Specifications
• Mitre cut at 0° x 45° : 15.5 x 7 cm (#) Not all the accessories illustrated or described are • Bevel cut at 45° x 0° : 22x 3.5 cm included in standard delivery. • Compound mitre cut at 45° x 45° : 15.5 x 3.5 cm •... -
Page 7: Not Intended Use
· Do not use the saw without the guards in position, The term "power tool" in the warnings refers to your in good working order and properly maintained. mains-operated (corded) power tool · Ensure that the arm is properly secure when battery-operated (cordless) power tool. - Page 8 d) Remove any adjusting key or wrench before h) Keep handles and grasping surfaces dry, turning the power tool on. A wrench or a key left clean and free from oil and grease. Slippery attached to a rotating part of the power tool may handles and grasping surfaces do not allow for safe result in personal injury.
- Page 9 jam. Sparks from abrasive cutting will burn the lower firm work surface reduces the risk of the mitre saw guard, the kerf insert and other plastic parts. becoming unstable. Use clamps support the workpiece k) Plan your work. Every time you change the whenever possible.
-
Page 10: Important Safety Instructions For All Battery Packs
The battery should be charged and used at ambient Use only saw blades that are marked with a speed temperatures between 10 and 40°C (ideally around equal or higher than the speed marked on the tool. 20°C). Store the battery in a safe place, out of reach of Adjust the saw for proper cutting capacity, if children, in an ambient temperature between 10 applicable. - Page 11 ACCESSORIES The rotating lower blade guard (8) provides protection from both sides of the blade. It retracts over the upper blade The Compound Mitre Saw is supplied with the following guard (6) as the saw is lowered into the workpiece. accessories as standard: TURNING ON AND OFF •...
- Page 12 6. Using a 5 mm hex key, loosen the two screws securing at 0°. Mitre crosscuts are made with the table set at some the fence (14) to the base. angle other than zero. 7. Place a square against the fence (14) and alongside 1.
-
Page 13: Maintenance
work surface that is level with the saw table. blade to stop rotating before raising the blade out of the workpiece. Wait until the blade stops before removing the 8. Before turning on the saw, perform a dry run of the workpiece. -
Page 14: Guarantee
Declares that the machine sending us the original receipt. We insure over the entire warranty period: Designation: CORDLESS MITRE SAW • Free repair of possible malfunctions. FSOR20V-U • Free replacement of damaged parts. Serial number: 20200322292-20200323343 • Including the free service of our specialized personnel (i.e.
