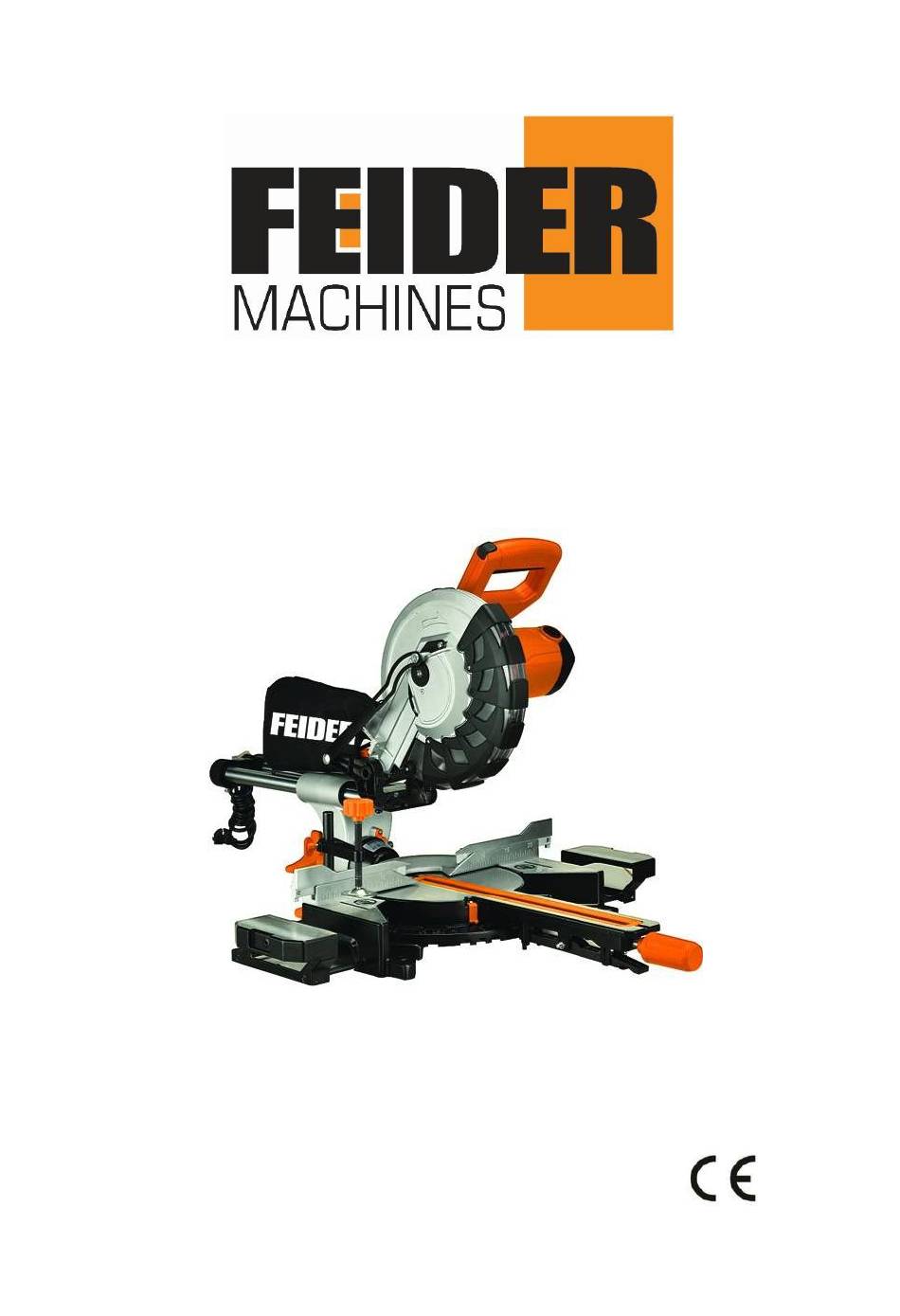

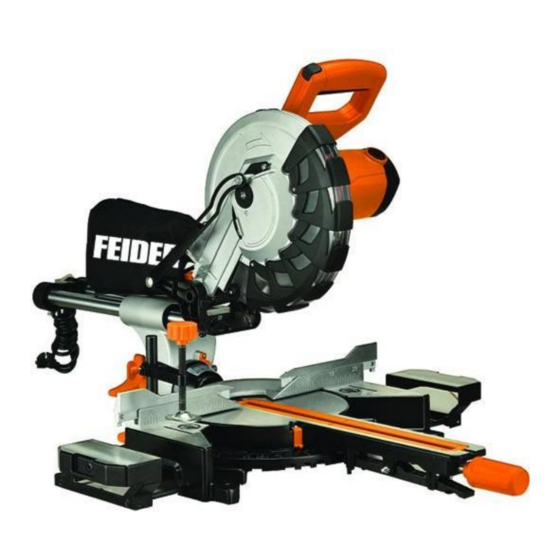

- Page 1 ORIGINAL INSTRUCTIONS Instruction manual MITRE SAW FSOR20255 WARNING: READ THE FOLLOWING INSTRUCTIONS BEFORE USE THIS MACHINE BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France MADE IN PRC...
-
Page 2: Table Of Contents
ORIGINAL INSTRUCTIONS CONTENTS 1. SAFETY INSTRUCTIONS 2. TECHNICAL DATA 3. DESCRIPTION 4. USE 5. MAINTENANCE AND STORAGE 6. TROUBLESHOOTING 7. DISPOSAL 8. WARRANTY 9. DECLARATION OF CONFORMITY... -
Page 3: Safety Instructions
ORIGINAL INSTRUCTIONS 1. SAFETY INSTRUCTIONS General power tool safety warnings WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. - Page 4 ORIGINAL INSTRUCTIONS 4) Power tool use and care a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off.
- Page 5 ORIGINAL INSTRUCTIONS and may cause binding on the spinning saw blade while cutting. There should be no nails or foreign objects in the workpiece. h) Do not use the saw until the table is clear of all tools, wood scraps, etc., except for the workpiece.
- Page 6 ORIGINAL INSTRUCTIONS Do not use your hand to remove sawdust, chips or debris near the saw blade. Use only blades recommended by the manufacturer that comply with EN847-1. Do not use high speed steel blades (HSS blades). If the plate inserted on the swivel table is worn or damaged, have it replaced by an authorized service center Objects such as cloth, strings, should never be left in the working zone.
- Page 7 ORIGINAL INSTRUCTIONS Always check if the saw blade guard is working properly. It shall be well assembled, and it shall be easily moving with hand and that it can be locked when operating the tool (see in instructions for use). Residual risks Warning: When using a power tool, basic safety precautions should be taken to avoid the risk of fire, electric shock or injury to persons.
- Page 8 ORIGINAL INSTRUCTIONS Symbol explanation To reduce the risk of injury, the user must read and understand this manual before using this product. Wear ear protectors. Exposure to noise can cause hearing loss. Wear protective goggles. Wear respiratory protection. Double insulation. Waste electrical products should not disposed of with household waste.
-
Page 9: Technical Data
ORIGINAL INSTRUCTIONS 2. TECHNICAL DATA Model FSOR20255 220-240 V˜ 50 Hz Mains voltage/ frequency Power 2000W Speed 4500/min Type Single Phase Blade size Ø255 x Ø 30 x 40TX2.8 mm Tilting swing arm 45° G/D Swivel base 45° G/D Sound pressure level LpA 97.2dB(A) -
Page 10: Description
ORIGINAL INSTRUCTIONS 3. DESCRIPTION... - Page 11 ORIGINAL INSTRUCTIONS 1. Guide bracket 2. Saw blade 3. Locking bolt 4. Handle 5. lift handle 6. Machine head 7. Clamping device 8. Set screw 9. Moving saw blade guard 10. Lock switch 11. screw 12. Sawdust bag 13. Set screw 14.
-
Page 12: Use
ORIGINAL INSTRUCTIONS 4. USE... - Page 13 ORIGINAL INSTRUCTIONS...
- Page 14 ORIGINAL INSTRUCTIONS...
- Page 15 ORIGINAL INSTRUCTIONS Scope of delivery Crosscut, drag and mitre saw 1 x Clamping device (7) (preassembled) 2 x Workpiece support (32) (preassembled) Sawdust bag (12) 40T blade Allen key 6 mm Operating manual...
- Page 16 ORIGINAL INSTRUCTIONS Intended use The crosscut, drag and mitre saw is designed to crosscut wood respective of the machine’s size. The saw is not designed for cutting firewood. Warning! Do not use the saw to cut materials other than those specified described in manual. Warning! The supplied saw blade is only intended for the sawing of wood! Do not use this blade for the sawing of firewood! The equipment is to be used only for its prescribed purpose.
- Page 17 ORIGINAL INSTRUCTIONS Checking the moving saw blade guard safety advice The saw blade guard protects against accidental contact with the saw blade and from chips flying around. Check function To do so, fold the saw downwards: • The saw blade guard must provide free access to the saw blade without touching other parts. •...
- Page 18 ORIGINAL INSTRUCTIONS • With the drag guide (24) fixed in place (24): use the handle (4) to move the machine head (6) steadily and with light pressure downwards until the saw blade has completely cut through the work piece. • With the drag guide (24) not fixed in place (24): pull the machine head (6) all the way to the front. Lower the handle (4) to the very bottom by applying steady and light downward pressure.
- Page 19 ORIGINAL INSTRUCTIONS • The moveable stop rail (35) must be fixed far enough in front of the innermost position that the distance between the stop rail (35) and the saw blade amounts to a minimum of 8 mm. • The right side of the moveable stop rails (35) must be in the inner position. •...
- Page 20 ORIGINAL INSTRUCTIONS • Loosen the retaining screw of the cover using a Philips screwdriver. WARNING! Do not fully remove this screw. • Fold the saw blade guard (9) upwards until the saw blade guard (9) is above the flange screw. •...
-
Page 21: Maintenance And Storage
ORIGINAL INSTRUCTIONS 5. MAINTENANCE Warning! Prior to any adjustment, maintenance or service work disconnects the mains power plug! General maintenance measures Wipe chips and dust of the machine from time to time using a cloth. In order to extend the service life of the tool, oil the rotary parts once monthly. -
Page 22: Troubleshooting
ORIGINAL INSTRUCTIONS 6. TROUBLESHOOTING PROBLEMS POSSIBLE CAUSES SOLUTIONS The motor does not start 1. Under voltage Check the connections and the 2. Poor connection mains voltage. The motor does not start 1. Short circuit in the socket 1. Check the plugs and disconnects. -
Page 23: Warranty
32, rue Aristide Bergès –Z1 31270 Cugnaux - France Phone: +33 (0) 5.34.508.508 Fax: +33 (0) 5.34.508.509 Declares that the machinery designated below: RADIAL DUAL SLIDE MITER SAW FSOR20255 Serial number: 20210843299-20210843448 Complies with the provisions of the Directive “Machinery” 2006/42/EC and national laws transposing it:... - Page 24 9. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.
- Page 25 10. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.
- Page 26 11. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
