Summary of Contents for Feider Machines FSC2000

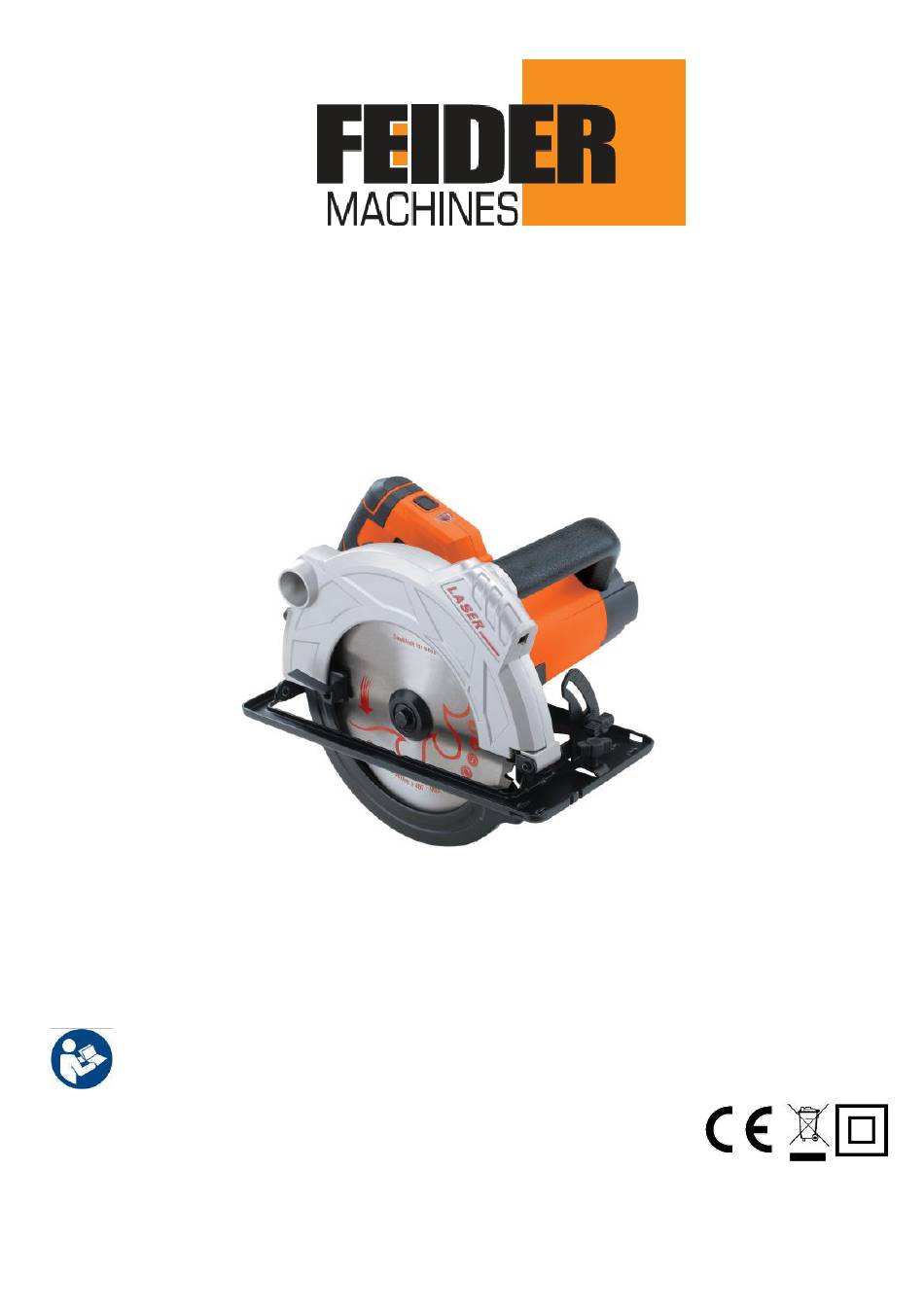

- Page 1 Instruction Manual Circular Saw Model FSC2000 FEIDER FRANCE 32, rue Aristide Bergès-ZI 31270 Cugnaux, France MADE IN PRC Warning: Please read the manual carefully before using the unit! １...
- Page 2 Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6 Fig.7 Fig. 8 ２...
-
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS General power tool safety warnings WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"... - Page 4 NOTE The term “residual current device (RCD)” can be replaced by the term “ground fault circuit interrupter (GFCI)” or “earth leakage circuit breaker (ELCB)”. 3) Personal safety a) Stay alert, watch what you are doing and use common sense when operating a power tool.
- Page 5 d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation.
- Page 6 also make exposed metal parts of the power tool "live" and could give the operator an electric shock. f) When ripping, always use a rip fence or straight edge guide. This improves the accuracy of cut and reduces the chance of blade binding. g) Always use blades with correct size and shape (diamond versus round) of arbour holes.
- Page 7 d) Support large panels to minimise the risk of blade pinching and kickback. Large panels tend to sag under their own weight. Supports must be placed under the panel on both sides, near the line of cut and near the edge of the panel. e) Do not use dull or damaged blades.
- Page 8 and make sure it can move freely and does not touch the blade or any other parts in all angles and depths of cutting. Do not operate the saw if the lower guard does not move and close freely. Never clamp or tie the lower guard into the open position. Adjust the cutting depth to the thickness of the workpiece.
- Page 9 produce narrow kerfs which may cause excessive friction, blade binding or kickback etc. 16. Always use blades with correct size arbor holes, never use defective or incorrect blade washers or bolts.Do not use abrasive discs in place of the saw blades specified in this manual.
-
Page 10: Laser Product
Do not dispose of old appliances with domestic rubbish Double insulation LASER RADIATION – DO NOT STARE INTO THE BEAM – CLASSE 2 LASER PRODUCT 3. Technical Specification: Model FSC2000 Rated voltage /frequency 230-240V˜ 50 Hz Rated power (W) 2000W No load speed (/min) 5000/min Dia. - Page 11 Uncertainties K=3.0dB(A) Main handle: a :4.732m/s Vibration emission vaule Auxiliary handle: a :4.447m/s (cutting wood) Uncertainties K=1.5 m/s 85mm Max.cutting depth (mm) 56mm Standard accessories wrench --1pc parallel guide--1pc Wood-cutting saw These and other accessories are available through your authorized dealer. When buying accessories always consider the technical requirements of this product.
- Page 12 12. Parallel guide 1. Lever of lower guard 13. Outer flange 2. Dust extraction outlet 14. Blade clamp bolt 3. Saw blade 15. Lower guard 4. Laser generator switch 16. Spindle lock button 5. Power-on indicator 17. ON/OFF switch 6. Auxiliary handle 18.
- Page 13 until the blade is at the right depth determined by the depth of cut scale (20) (align the scale line). 3) Tighten the lock lever for depth adjustment. Angle adjustment (Fig. 6) 1) Loosen the Lock knob for angle adjustment (9). 2) Adjust the shoe to the desired angle between 0°to 45°.
-
Page 14: Operation
6) Align the beam with the mark on the work-piece and slowly push the saw forward using both hands, keeping the red light beam on the mark. 7) Switch off the laser beam when completion of the cut. 7. OPERATION General cutting 1) When starting, always hold the saw handle with one hand and the auxiliary handle (6) with the other hand. - Page 15 or performing any maintenance the saw may be cleaned most effectively using compressed air. Always wear safety goggles when using compressed air. If compressed air is not available, use a brush to remove dust and chips from the saw. 2) Motor ventilation vents and switch levers must be kept clean and free of foreign matter.
- Page 16 9. DISPOSAL Electrical products should not be discarded with household products. According to the European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation into national law, electrical products used must be collected separately and disposed of at collection points provided for this purpose. Talk with your local authorities or dealer for advice on recycling.
-
Page 17: Circular Saw
CE DECLARATION 32, rue Aristide Bergès –Z1 31270 Cugnaux - France Tel: +33 (0)5.34.508.508 Fax: +33 (0)5.34.508.509 Declare that the below machine: CIRCULAR SAW FSC2000 Serial number: Is in conformity with the following Directives: ROHS Directive 2011/65/EU MACHINE Directive 2006/42/EC...
