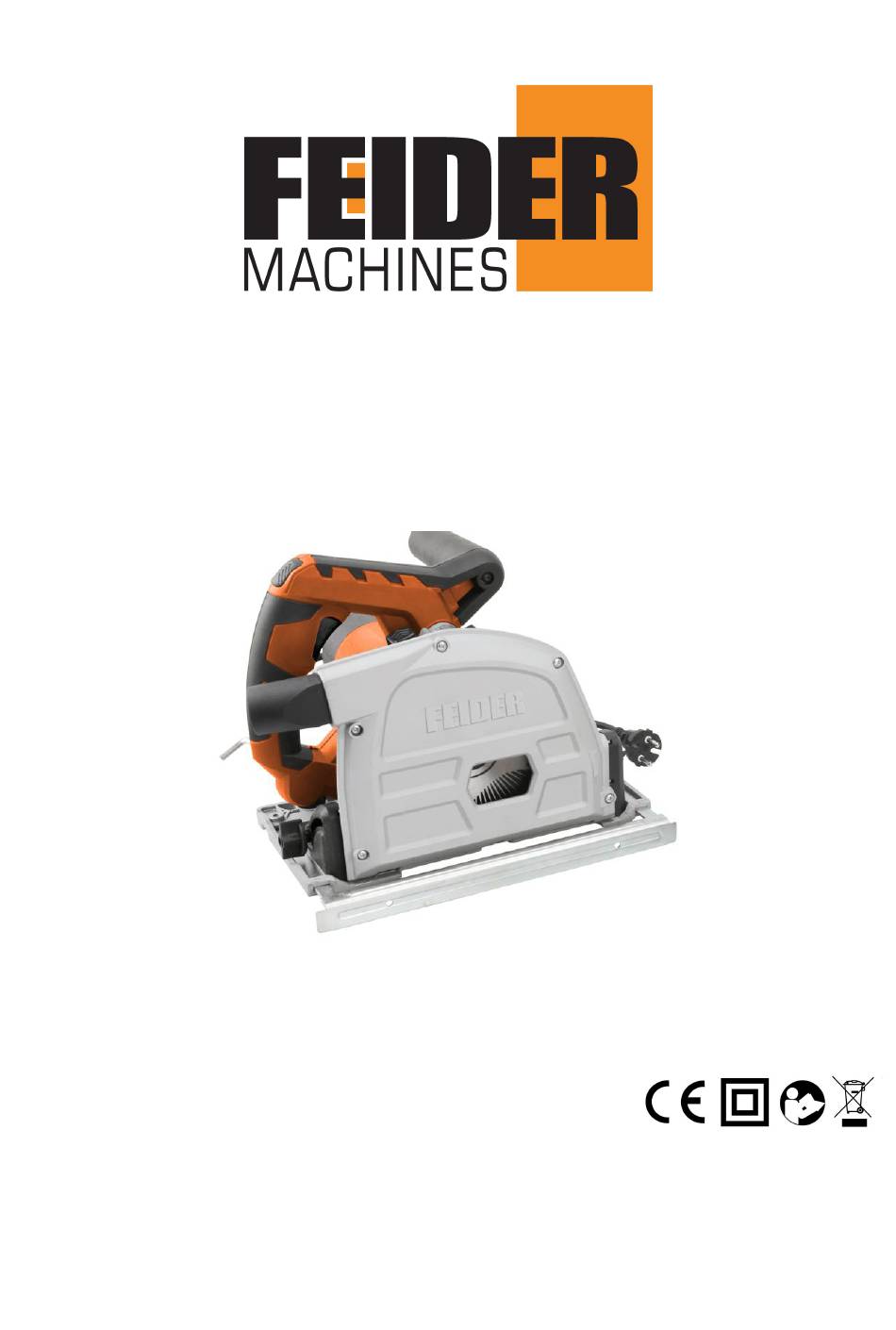

- Page 1 Original Instructions Instruction Manual Plunge Saw FS1612-1 WARNING: Read the instruction manual thoroughly before using this tool. BUILDER SAS ZI, 32 RUE ARISTIDE BERGES 312070 CUGNAUX，FRANCE Made in P.R.C, 2021...
-
Page 2: Table Of Contents
Table of contents DESCRIPTION................Page 4 General power tool safety warnings..........Page 5 Safety instructions for all saws............Page 7 Safety instructions for plunge saws..........Page 9 Before first use................Page 10 Intended use..................Page 10 Plunge saw features..............Page 10 Set cutting depth................Page 12 Set cutting angle................Page 12 Determine cutting line ..............Page 13 Preparation..................Page 13 Correct working with the plunge saw..........Page 13... -
Page 4: Description
DESCRIPTION 1. Switch Lock 2. ON/OFF Switch 3. Main Handle 4. Base Plate 5. Fine Adjustment Screw (2x) 6. Guide Rail Lock 7. Cutting Angle Rotary Knob (2x) 8. Depth Limit Stop Knob 9. Guide Rail Track Compensation 10. Graduated Scale 11. -
Page 5: Dear Customer
DEAR CUSTOMER Please familiarize yourself with the proper usage of the unit by reading and following each chapter of this manual, in the order presented. Keep these operating instructions for further reference. This operating instruction contains important details for handling the unit. Please pass it on along with the unit if it is handed over to a third party! Please read all safety instructions! These instructions will make it easier for you to handle the unit and help prevent misunderstandings and possible damage or injury. - Page 6 ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord.
-
Page 7: Safety Instructions For All Saws
detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. - Page 8 accuracy of cut and reduces the chance of blade binding. g) Always use blades with correct size and shape (diamond versus round) of arbour holes. Blades that do not match the mounting hardware of the saw will run off-centre, causing loss of control. h) Never use damaged or incorrect blade washers or bolt.
-
Page 9: Safety Instructions For Plunge Saws
guard so that the blade is exposed. If the saw is accidentally dropped, the guard may be bent. Check to make sure that the guard moves freely and does not touch the blade or any other part, in all angles and depths of cut. b) Check the operation and condition of the guard return spring. -
Page 10: Before First Use
improves the cutting accuracy and reduces the possibility that the saw blade gets jammed. • Use always saw blades in the correct size and with suitable locating bore. Saw blades that do not match the mounting parts of the saw will run unevenly and lead to loss of control. •... - Page 11 use and fully operational. In idle speed the cooling period of the plunge saw is considerably reduced. Current limitation: The current limitation prevents too high current draw during extreme overload. This can cause reduced motor speed. After load relief the motor starts up again immediately.
-
Page 12: Set Cutting Depth
Notes: Pressing the switch lock (1) unlocks the plunge cut mechanism at the same time, so that the motor can be moved downwards. The saw blade emerges from the protective cover. When lifting the saw the motor slides back into the initial position. SET CUTTING DEPTH The cutting depth can be set between 0 - 54 mm: 1. -
Page 13: Determine Cutting Line
2. Tighten the rotary knobs (7) again. DETERMINE CUTTING LINE Two cutting lines are marked on the base plate (4) of the plunge saw. 1. Align position A (0 mark on base plate) at the front of the base plate with your marked cutting line when using the plunge saw without guide rail for straight cuts. -
Page 14: Straight Cuts (90° Cut)
plunge saw only against the work piece during operation. • With the correct forward speed you prevent overheating of the saw blade, and melting when cutting plastics. STRAIGHT CUTS (90° CUT) 1. Loosen both rotary knobs (7) and swivel the saw to 0° position on the scale. Tighten the rotary knobs again. -
Page 15: Marked Cutting
MARKED CUTTING 1. Turn the selector switch (17) to marked cut function. 2. Press the switch lock (1) and push the motor down. The casing stops in 2.5 mm cutting depth position. Note: The marking line should be aligned with cutting line A (0 mark). PLUNGE CUTS 1. -
Page 16: Change Saw Blade
Press the switch lock (1) and the ON/OFF switch (2) and push the motor down. Guide the saw forward to cut. Note: To prevent the saw from kicking back during plunge cuts follow these steps: • Always place the plunge saw with the rear edge of the base plate (4) against a fixed limit stop. -
Page 17: Guide Rail(S) And Clamps
6. Use the Allen key to loosen the screw counter-clockwise. Remove the outer flange and the saw blade. 7. Clean both flanges and replace the saw blade. Note: The rotation direction arrows of saw blade and saw must be aligned! 8. -
Page 18: Fine Adjustment Of Plunge Saw Play On Guide Rail
3. Place the plunge saw on the guide rail. The base plate has a groove (13), which exactly fits into the guide ridge of the rail. 4. Guide the plunge saw from the edge of the guide rail and turn the guide rail lock (6) towards I to connect the plunge saw to the rail. -
Page 19: Connecting Rods For Guide Rails
CONNECTING RODS FOR GUIDE RAILS To connect both guide rails slide the first connecting rod from the bottom into the groove of the guide rail. 2. Slide the other connecting rod into the second groove. 3. Use the 3 mm Allen key to tighten the stud screws to the limit stop to connect the rails. DETERMINE CUTTING LINE When using the saw with guide rail always align position A (0 mark on base plate) at the front of the base plate with your marked cutting line for straight cuts and 45°... -
Page 20: Plunge Cut With Guide Rail
Mark a cutting line on the work piece and align the guide rail exactly with this cutting line. 2. Fix the guide rail with clamps on the work piece. 3. Set the selector switch to marked cut function. Set the plunge saw speed to 6. 4. -
Page 21: Change Carbon Brushes
Always keep the plunge saw clean. Clean the plunge saw after every use with a dry cloth or compressed air. Do not use any aggressive chemicals for cleaning. CHANGE CARBON BRUSHES The saw is equipped with self-isolating special brushes. They are automatically isolated when worn, and the tool stops. -
Page 22: Technical Data
2. Use a setsquare to check the angle. 3. Swivel the plunge saw to the side and set the cutting precision by means of the stud screws. TECHNICAL DATA Mains power : 220-240 V~ 50 Hz Power : 1400 W No load speed : 2000-5000 min Miter setting :... -
Page 23: Ce Declaration
BUILDER SAS ZI, 32 RUE ARISTIDE BERGES – 312070 CUGNAUX – France Declares that the machinery designated below : Plunge saw Ref : FS1612-1 Serial number: 20210501925-20210502424 Complies with the provisions of the Directive «Machine» 2006/42/EC and national laws transposing it:... -
Page 24: Warranty
WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 25: Product Failure
PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 26: Warranty Exclusions
WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
