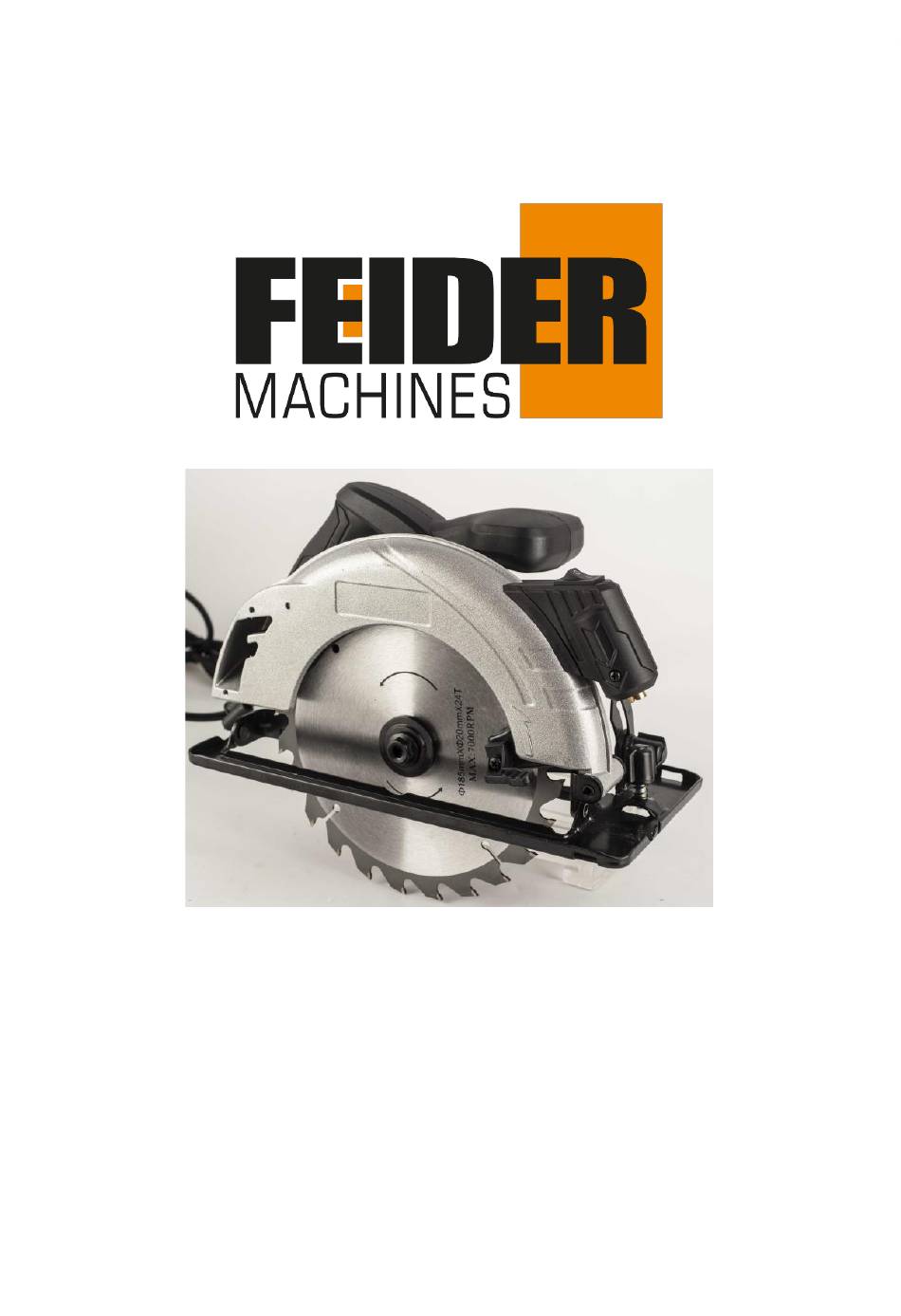

- Page 1 ORIGINAL NSTRUCTIONS >EN CIRCULAR SAW FSC1485-B USER GUIDE CAUTION: Read the instructions before using the machine!
-
Page 2: Table Of Contents
CONTENTS INTENDED USE SAFETY INSTRUCTIONS PRODUCT DESCRIPTION SPECIFICATION ASSEMBLY AND OPERATION MAINTENANCE AND CARE DISPOSAL DECLARATION OF CONFORMITY WARRANTY PRODUCT FAILURE WARRANTY EXCLUSIONS... -
Page 3: Intended Use
1. INTENDED USE The hand-held circular saw is suitable for sawing straight cuts into wood, wood like materials and plastic. Only use this machine according to its intended use! Any use extending beyond this does not constitute intended use. The user, not the manufacturer, is liable for resulting damages or injuries of any kind. Our equipment is not intended for commercial or industrial use. - Page 4 d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
- Page 5 a stable platform. It is important to support the work properly to minimise body exposure, blade binding, or loss of control. e) Hold power tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a “live” wire will also make exposed metal parts of the power tool “live”...
- Page 6 retracting handle and make sure it moves freely and does not touch the blade or any other part, in all angles and depths of cut. b) Check the operation of the lower guard spring. If the guard and the spring are not operating properly, they must be serviced before use.
-
Page 7: Product Description
Do not dispose of old appliances with domestic rubbish 2.7 SECURITY INSTRUCTIONS FOR LASER WARNING! Protect yourself from laser radiation The Circular saw contains a Class 2 Laser. NEVER direct the laser beam at people or animals. NEVER look directly into the laser beam. The laser beam can cause serious eye damage. -
Page 8: Specification
4. TECHNICAL DATA Nominal voltage/frequency: 220-240V~, 50Hz Saw blade cutting thickness 2,4 mm Rated power 1400 W Vibration value: Protection class II Handle ah = 5,24 m/s² Max. idle rotational speed 5500/min Uncertainty K = 1,5 m/s² Max. cutting depth at 0° : 65 mm Sound pressure level (L ) 95 dB(A);... -
Page 9: Maintenance And Care
5.4 CHANGING THE SAW BLADE Protect yourself against cutting injuries by wearing gloves! Press the spindle locking button and turn the saw blade until the spindle locking button stays pressed. The spindle lock may only be actuated when the saw blade is stationary. -
Page 10: Disposal
The electric motor heats up to more than 70 ° C. The motor is overloaded. Cut more slowly and allow the motor to cool down. The motor is defective. Bring the saw in for a check and / or repair to your Workers Best dealer. The machine does not work when turned on. -
Page 11: Declaration Of Conformity
BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux - France, declares that， Product: CIRCULAR SAW Trademark: FEIDER Model: FSC1485-B Serial number: 20211203426-20211203925 is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration. -
Page 12: Warranty
9. WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 13: Product Failure
10. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. •... -
Page 14: Warranty Exclusions
11. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 15 BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Made in China in 2022...
