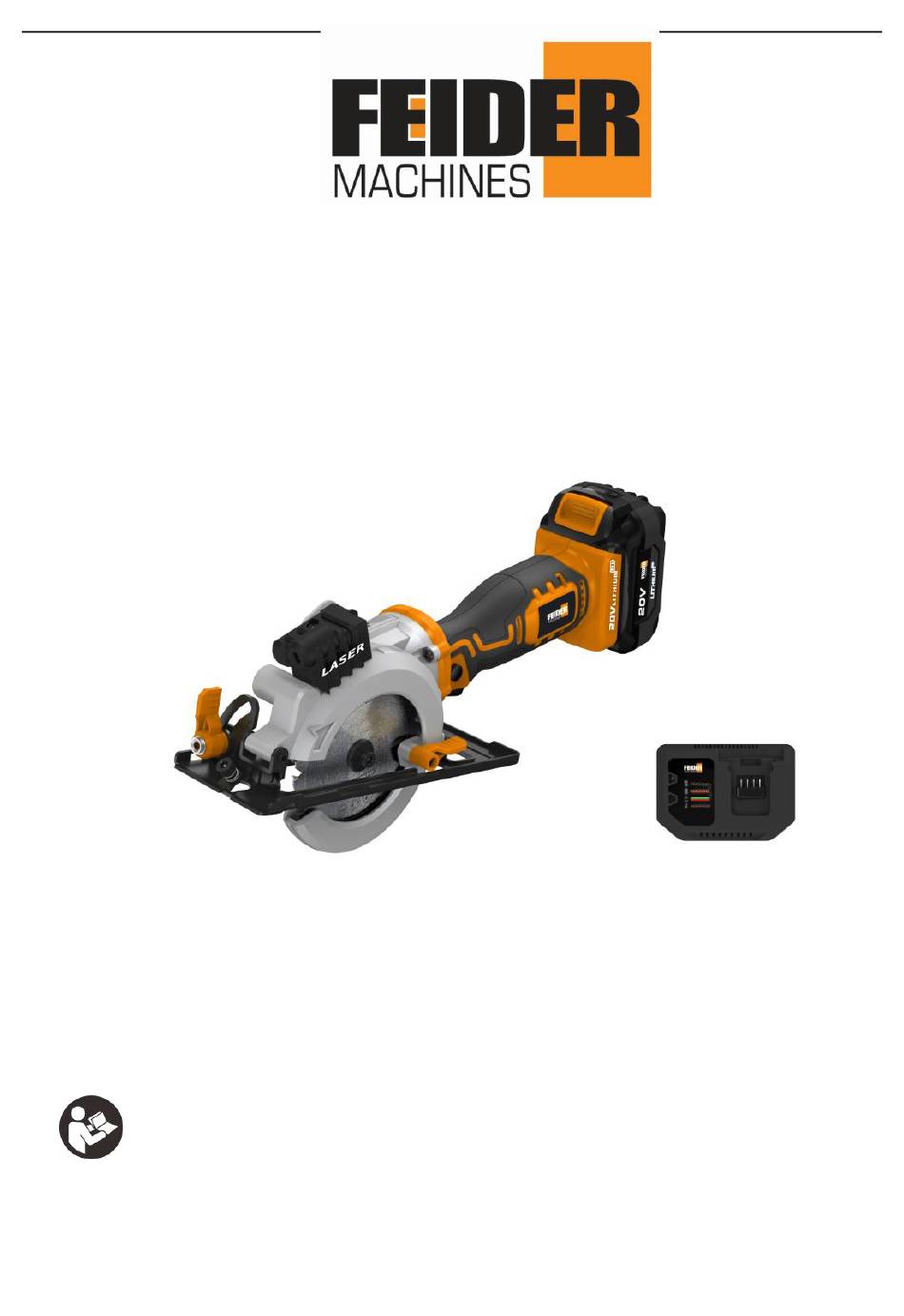

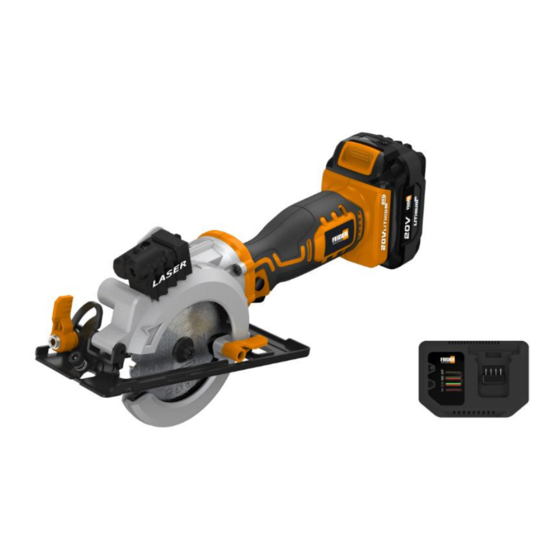

- Page 1 ORIGINAL INSTRUCTIONS MINI CIRCULAR SAW CORDLESS FSP182A INSTRUCTION MANUAL BUILDER SAS 32, rue Aristide Bergès -ZI 31270 Cugnaux –France IMPORTANT: Please read the instruction manual before using.
- Page 2 ORIGINAL INSTRUCTIONS Technical Data Rated Voltage 20V d.c. No-load Speed 4500/min ±10% Max. Cutting @ 90 42.8mm (1-11/16”) Capacity @ 45 28mm (1-1/8”) Saw Blade Diameter 115mm (4-1/2”) Sound power level LWA: 97 dB(A) KWA:3 dB(A) Sound pressure level LpA:86 dB(A) KpA:3 dB(A) Vibration ahW=4,03 m/s²...
- Page 3 ORIGINAL INSTRUCTIONS of the need to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).
- Page 4 ORIGINAL INSTRUCTIONS a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.
- Page 5 ORIGINAL INSTRUCTIONS b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.
- Page 6 ORIGINAL INSTRUCTIONS a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
- Page 7 ORIGINAL INSTRUCTIONS h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations. 5) Battery tool use and care a) Recharge only with the charger specified by the manufacturer.
- Page 8 ORIGINAL INSTRUCTIONS g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire. 6) Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts.
- Page 9 ORIGINAL INSTRUCTIONS e) Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a "live" wire will also make exposed metal parts of the power tool "live" and could give the operator an electric shock.
- Page 10 ORIGINAL INSTRUCTIONS If the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the blade can dig into the top surface of the wood causing the blade to climb out of the kerf and jump back toward the operator. Kickback is the result of saw misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.
- Page 11 ORIGINAL INSTRUCTIONS f) Blade depth and bevel adjusting locking levers must be tight and secure before making the cut. If blade adjustment shifts while cutting, it may cause binding and kickback. g) Use extra caution when sawing into existing walls or other blind areas. The protruding blade may cut objects that can cause kickback.
- Page 12 ORIGINAL INSTRUCTIONS d) Always observe that the lower guard is covering the blade before placing the saw down on bench or floor. An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its path. Be aware of the time it takes for the blade to stop after switch is released.
- Page 13 ORIGINAL INSTRUCTIONS Never touch the blade during or immediately after use. After use, the blade is too hot to be touched with bare hands. Use only blade diameters in accordance with the markings. Installing an incorrect blade can result in injury and poor cutting. Use the correct saw blade for the material to be cut;...
- Page 14 ORIGINAL INSTRUCTIONS drilling, and other construction activities may contain chemicals that are known to cause cancer, birth defects, or other genetic abnormalities. These chemicals include: Lead from lead-based paint Crystalline silica from bricks, cement, and other masonry products Arsenic and chromium from chemically treated lumber The level of risk from exposure to these chemicals varies, according to how often this type of work is performed.
- Page 15 ORIGINAL INSTRUCTIONS supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
-
Page 16: Function Description
ORIGINAL INSTRUCTIONS Wear eyes protection LASER RADIATION - DO NOT STARE INTO BEAM - CLASS 2 LASER PRODUC Function Description Lock-Off / Plunge Release Cutting Depth Scale Button ON/OFF Trigger Switch Rip Guide Laser Rip Guide Locking Screw Retractable Lower Spindle Lock Blade Guard Saw Blade... - Page 17 ORIGINAL INSTRUCTIONS Inserting the battery • Press the button of the charged battery. • Push it completely into the base. CAUTION Use only original lithium ion batteries with the voltage listed on the nameplate of...
-
Page 18: Removing The Battery
ORIGINAL INSTRUCTIONS your power tool. Using other batteries can lead to injuries and pose a fire hazard. Removing the Battery • The battery is equipped with two locking levels that should prevent the battery from falling out when pushing the battery unlocking button unintentionally. As long as the battery is inserted in the power tool, it is held in position by means of a spring. -
Page 19: Battery Charging
ORIGINAL INSTRUCTIONS Battery Charging 1. If fitted, remove any battery charger. 2. Insert the battery charger mains plug into a suitable mains socket. Only a steady RED Light • indicates the charger has been plugged in. • A steady RED Light and a Flashing GREEN light (with battery inserted) indicate the battery is charging. - Page 20 ORIGINAL INSTRUCTIONS • Only a Flashing RED Light (with battery inserted) indicates the battery pack is too hot. You should let the battery pack cool down for approximately 30 minutes before attempting to recharge. • A RED and A GREEN light flashing alternatively (with battery inserted) indicate the battery pack is defective and needs to be replaced.
- Page 21 ORIGINAL INSTRUCTIONS There are no restrictions on how long a battery can remain in the charger. Recommended is to remove the battery from the battery charger when the battery is full charged or the charger is disconnected from the supply. The battery should be charged and used at ambient temperatures between 10 and 40°C (ideally around 20°C).
- Page 22 ORIGINAL INSTRUCTIONS The capacity of batteries will reduce over time. After 100 charge cycles, the battery’s operation time and the maximum torque performance of the driver will slightly reduce. This decline will continue until the battery has minimal capacity after 250 charge cycles. This is normal and not a fault with the battery.
-
Page 23: Dust/Chip Extraction
ORIGINAL INSTRUCTIONS • Press the spindle button and keep it pressed. • The spindle lock button may be actuated only when the saw spindle is at a standstill. Otherwise, the power tool can be damaged. • With the Allen key, unscrew the clamping bolt turning in rotation direction. •... -
Page 24: Operation
ORIGINAL INSTRUCTIONS Operation Mounting the Extraction Adapter Before any work on the power tool, remove the battery. Fasten the extraction adapter to the dust port without tools. The extraction adapter may not be mounted when no external dust extraction is ... -
Page 25: Adjusting The Cutting Angle
ORIGINAL INSTRUCTIONS • Tighten wing bolt again. When setting the cutting depth, use the reference mark to the side of the cutting-depth scale. Adjusting the Cutting Angle It is best to place the machine on the face side of the blade guard. •... - Page 26 ORIGINAL INSTRUCTIONS • When cut the wood, put the machine on the workpiece and push it along the wood. To switch off the machine • First take out of the machine from workpiece. • Then release the On/Off switch. Note: For safety reasons, the On/Off switch cannot be locked;...
- Page 27 ORIGINAL INSTRUCTIONS Working Advice Protect saw blades against impact and shock. Guide the machine evenly and with light feed in the cutting direction. Excessive feed significantly reduces the service life of the saw blade and can cause damage to the power tool.
-
Page 28: Maintenance And Cleaning
ORIGINAL INSTRUCTIONS Maintenance and Cleaning Before any work on the machine itself (e. g. maintenance, tool change, etc.) as • well as during transport and storage, remove the battery from the power tool. There is danger of injury when unintentionally actuating the On/Off switch. For safe and proper working, always keep the machine and ventilation slots •... -
Page 29: Battery Pack
ORIGINAL INSTRUCTIONS Battery packs/batteries: Li-ion: Protect the battery against moisture and water. Store the battery only within a temperature range between 0 °C and 50 °C. As an example, do not leave the battery in the car in summer. Occasionally clean the venting slots of the battery using a soft, clean and dry brush. A significantly reduced working period after charging indicates that the battery is used and must be replaced. -
Page 30: Warranty
ORIGINAL INSTRUCTIONS Input 100-240V A 50/60Hz, 95W Output 20V DC 4A Charge time: 30min for 2.0Ah battery Charge time: 60min for 4.0Ah battery Charge time: 90min for 6.0Ah battery 1. Warranty We guarantee this product for 2 full years. The warranty period for this item starts on the day of purchase. You can prove the date of purchase by sending us the original receipt. - Page 31 ORIGINAL INSTRUCTIONS To help you with your product, we invite you to use this link or call us on +33 (0)9 70 75 30 30: https://services.swap-europe.com/contact You must create a "ticket" via their platform: • Register or create your account •...
- Page 32 ORIGINAL INSTRUCTIONS Déclaration de conformité BUILDER SAS ZI, 32 rue Aristide Bergès- 31270 Cugnaux-France Tel: + 33 (0) 5.34.502.502 Fax: + 33 (0) 5.34.502.503 Declares that the machinery designated below: Mini Circular Saw FSP182AS Serial number: Complies with the provisions of the Directive « Machine » 2006/42/EC and national laws transposing it: Also complies with the following European directives: EMC DIRECTIVE 2014/30/UE...
- Page 33 ORIGINAL INSTRUCTIONS EN55014-1:2017 EN55014-2:2015 Responsible for the technical file: Mr. Olivier Patriarca Cugnaux, le 01/01/2020 Philippe Marie/PDG...
