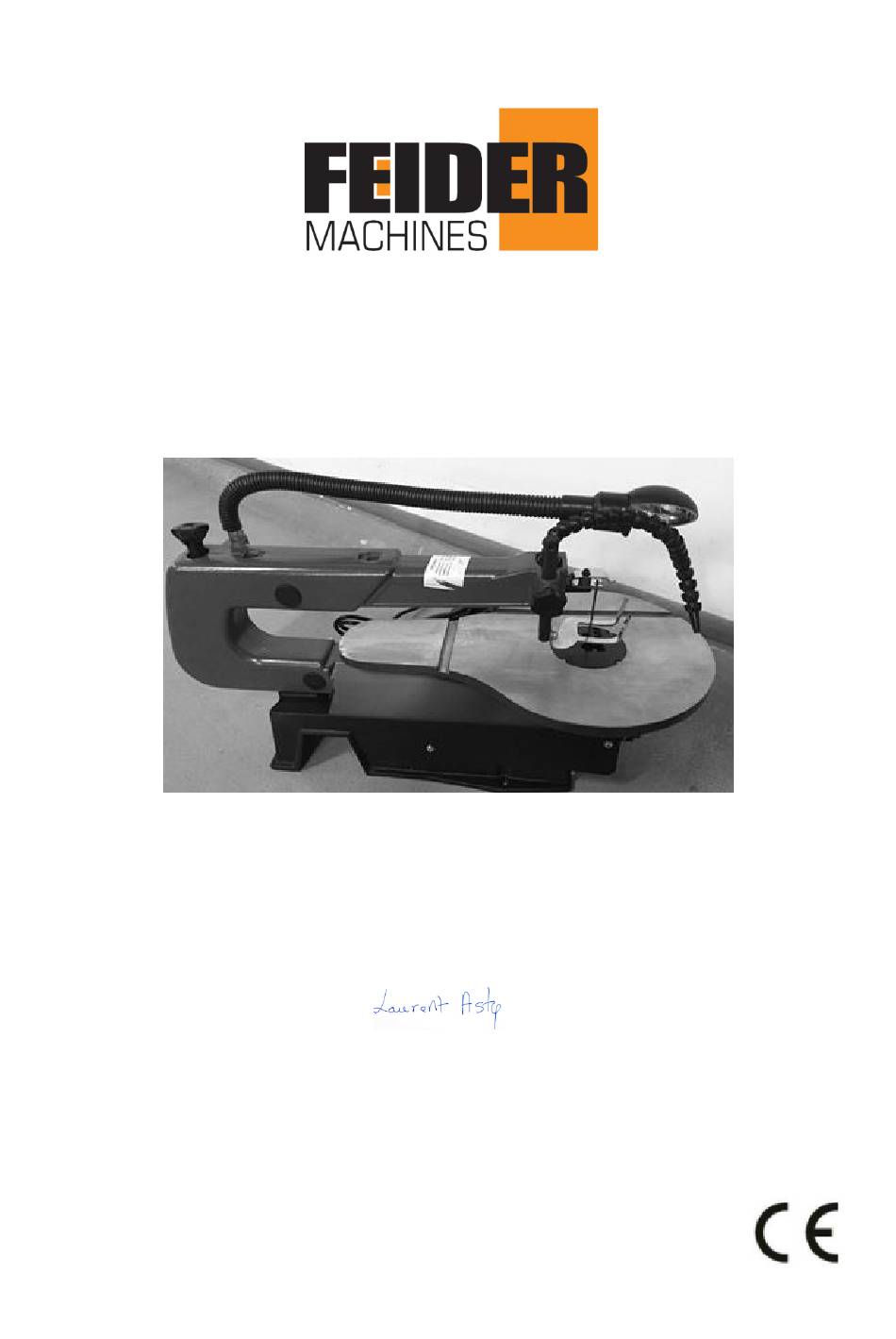

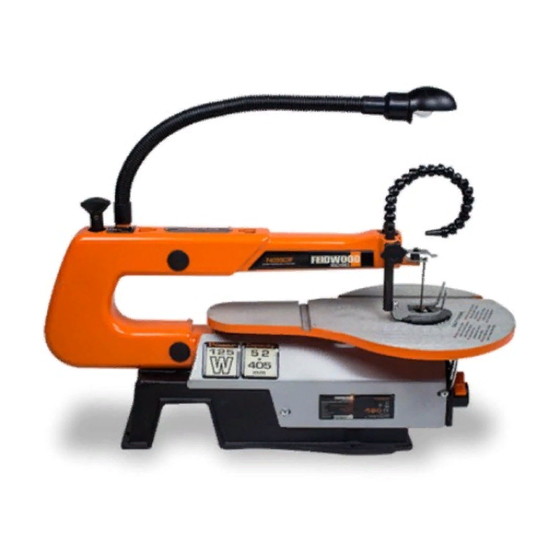

- Page 1 ORIGINAL INSTRUCTIONS SCROLL SAW F405SC3F READ THE INSTRUCTIONS BEFORE USE THE TOOL APPROVED BY DEKRA 01/08/17 Laurent Asty FEIDER France 32, rue Aristide BERGES ZI 31 270 CUGNAUX - France...
-
Page 2: Safety Warnings
1. SAFETY WARNINGS WARNING! When using electric tools basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury. Read all these instructions before attempting to operate this product and save these instructions. Keep work area clear ... - Page 3 17. Avoid unintentional starting Ensure switch is in "off" position when plugging in. 18. Use outdoor extension leads When the tool is used outdoors, use only extension cords intended for outdoor use and so marked. 19. Stay alert ...
- Page 4 use chipped, cracked or otherwise damaged wheels. The grinding wheel continues to rotate after the tool is stopped. Use of mini-drill: Hearing protection must be applied when using the drill. Use of mini-grinder Make sure that the dimensions of the grinding wheel are compatible with the grinder Check grinding wheel before use, do not use chipped, cracked or otherwise damaged wheels Ensure that the grinding wheels and grinding wheels are mounted in accordance...
- Page 5 Intended use Ideal for precision work and creative leisure on wood, cardboard, PVC, aluminum, glass and many other supports. For complex and straight cuts, drilling, sanding, polishing, engraving, etc. This variable speed scroll saw makes it possible to make complex cut-out. Its grooved table offers the possibility of making straight cuts with a guide (function of band saw).
-
Page 6: Your Product
2. YOUR PRODUCT a. Description... - Page 8 b. Technical data Data Tension 230-240V~ 50Hz S1: 70W Power S2 30min: 90W S2 5min: 125W Product class Non load speed (scroll saw) 550-1600 /min Non load speed (flexible shaft) 1650-4800 /min Blade 127 mm Dimensions of the tray 415 x 254 mm Sound pressure level LpA Load: 77.3dB(A) No load: 67.2dB(A)
- Page 9 3. ASSEMBLY NOTE: The tool must not be plugged to electrical supply when assembly. a. Fixing of the saw The base of the scroll saw must be placed and secured on a solid, level surface in a place that is not accessible to children. Fasten the drum with 3 nuts and bolts through the 3 holes provided for this purpose.
- Page 10 d. Aligning the angle pointer Loosen the table and the pointer and adjust with a square (not supplied) until a perfect angle is obtained with the blade and table. Then tighten the table and the pointer screw. e. Installing/replacing and adjusting the blade Turn the tension knob counter clockwise to release the saw blade.
- Page 11 4. UTILISATION a. Inserting the workpiece Adjust the protection and the slide according to the size of the workpiece. Tighten the screws and fasteners. Push the guard up to the cutting slide. Any unused blade must be protected! Switch the machine on firmly. Place the workpiece on the entry table.
-
Page 12: Maintenance And Storage
5. MAINTENANCE AND STORAGE a. Cleaning of chips When using your machine it is important to connect a vacuum cleaner connected to the chip outlet so that the chips do not remain in the motor or in the chassis of the machine. Chip accumulation can alter the drive belt and cause the engine to overheat. -
Page 13: Declaration Of Conformity Eu
FEIDER FRANCE ZI, 32 RUE ARISTIDE BERGES – 312070 CUGNAUX – FRANCE Declares that the machinery as designated below: SCROLL SAW F405SC3F Serial number: Complies with the provisions of the Directive « machinery » 2006/42/EC and national laws transposing it...
