Page 4

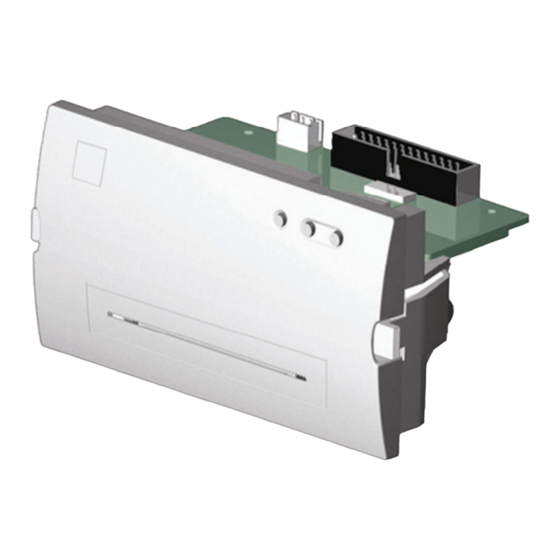

快速安装手册 ●安装 Installation 安装方法: 用手指夹住微打两侧的活动舌头,把整个打印机插入仪器或设备面板的安装孔内(如图), 并检查打印机是否已安装牢固。 对于要安装的面板厚度,建议使用 0.8~1.2mm 厚的金属板。太薄或太厚都会影响打印机安 装的牢固性。 开口尺寸:103mm+0.5×57mm+0.5 Installation Method As the picture show, champ the movable handles both sides with fingers, fix the whole printer in the installing orifice of instrument or equipment, and check whether the printer has already been installed firmly.
Page 5
Attention: Do not connect AC to the printer directly, operating voltage should be within 5% rated voltage. Power polarity must be correct, otherwise it will cause permanent damage to printer, brightek company do not assume maintenance compulsory upon this. http://www.whkj.com.cn 010‐51655555 ...
Page 6
快速安装手册 ●装纸 Paper Roll 安装步骤: 1.如图 1 所示,先将打印机从面板取出。 2.从打印机后面将打印纸装上,先将打印纸套在纸轴上(44 宽的纸卷需安装固定轴在左 侧) ,纸的方向朝向打印头一侧(如图 2)。 3.把打印纸拉出一截,将打印纸末端插入打印口(如图 3)。 4.接通打印机的电源,按 SEL 键使 SEL 指示灯灭,然后再按 LF 键。 使机头转动,打印纸徐徐 走出,这时看一下纸是否走歪。再按一下 SEL 键,或关上电源。 5.将打印机重新安装到面板上(如图 4)。 Replacing the Paper Roll 1.Take the printer out of the panel as shown in Fig. 1. 2.Put the paper on the paper roller (paper with width 44mm should fix on the left end of the roller), and install the roller firmly (as shown in Fig.
Page 7
快速安装手册 ●色带 Ribbon 色带更换: 1.扣住机盖边缘并按图示箭头方向翻开前面板。 2.从打印机头上轻轻取下旧色带盒。注意:请先抬起色带盒的左端,然后再抬起色带盒的 右端,取下色带盒。 3.换新的色带盒。首先将色带盒的右端轻轻放在机头右端的齿轮轴上,左端稍微抬起不要 放下。如色带盒右端未落到底,请按住色带盒上的旋钮,顺时针方向稍微转动一下,直到 色带盒的右端落到底后再放下色带盒的左端。 请检查色带是否拉直,或色带还露在色带盒的外面,可再旋动色带盒上的旋钮,直到把 色带拉入色带盒内并拉直为止。当没有纸在机头里时,更换色带更加容易。 4.合上打印机的前面板,并推入复位。热敏打印机无需此步骤。 Ribbon Installation 1. Open the front cover of the printer as shown in the image, 2. Take down the old ribbon cassette, notice: lift up the left end of the ribbon cassette, then lift up the right end, and then take down the ribbon cassette.
