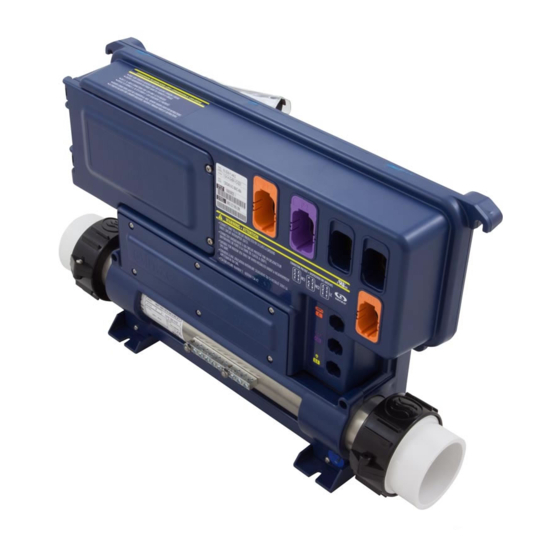

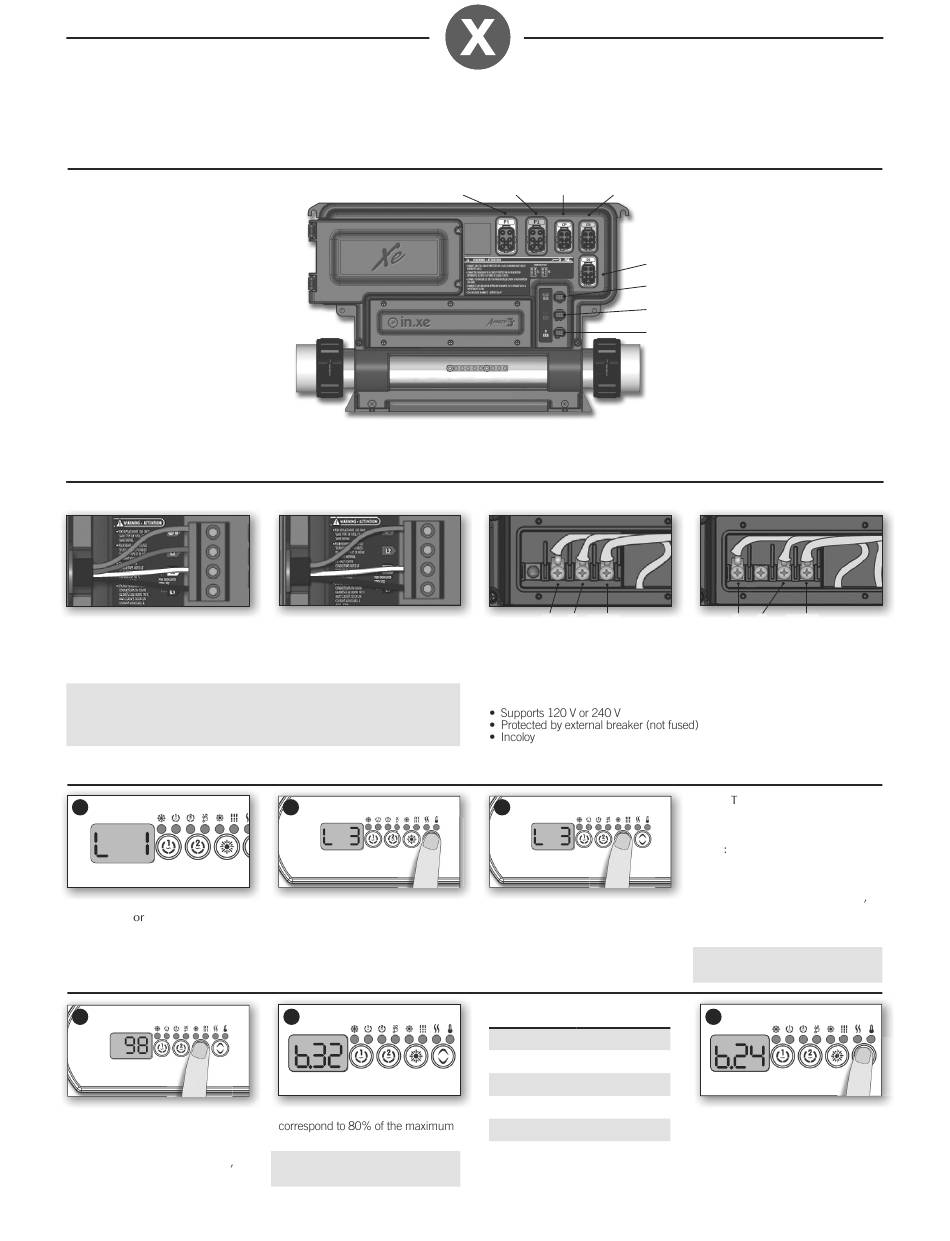

Gecko in.xe-5 0602-221063-299 Quick Start Card

1- Connect all outputs & keypads
2- Connect the main power
2.a- Electrical wiring
For 240 V (4 wires)
WARNING! All connections must be made by a qualified electrician in accor-
dance with the national electrical code and any state, provincial or local electrical
code in effect at the time of the installation. This product must always be connec-
ted to circuit protected by a Ground Fault Circuit Interrupter (GFCI).
3- Select spa configuration (see chart next page)
1
At first startup the keypad display
will show L 1 LL 1.
4- Select breaker current
1
Press and hold the Program key
for 20 seconds until you access the
breaker setting menu.
Note: For the Color keypad series
select Settings menu, go into
Electrical config and choose Input
current.
Quick Start Card
in.xe-5 ™
North American version
OUT1
Don't forget that the voltage is determined by the cable used (120 or 240 V cable)!
For 120 V (*3 wires)
* If connected to a 3 wire system all
240 V components will not work.
2
Use the Up/Down key to choose the
new low level configuration number.
2
The values displayed by the system
amperage capacity of the GFCI.
For more information, see our
website: www.geckoalliance.com
OUT2 OUT3 OUT4
OUT5
C - Main keypad connector
CO - Communication link
L1 - Light connector
2.b- Heater voltage
L2 L2 L1 L1 Ground Ground
Connection for 240 V / heater (4 kW)
The heat.wav heater is factory configured 240 V/4 kW (or 2 kW), but it can
be converted to a dedicated 120 V / 1 kW by a simply switching the cable
connection port. Option available on North American models only.
Heat.wav specification summary:
®
or Titanium (optional) heater element for greater protection
against corrosion.
3
Press the Program key to confirm the
selection.
GFCI b
60 A 48 A
50 A 40 A
40 A 32 A
30 A 24 A
20 A 16 A
15 A 12 A
(10 to 20 A dedicated to 120 V)
N N L1 L1 Ground Ground
Connection for 120 V / heater (1 kW)
Note: o re-enter the Low level
selection menu, hold the Pump 1
key for 30 seconds.
Note If the keypad does not have a
Program or Filter key, use the Light
key instead.
Note: For the Color keypad series
select Settings menu, go into
Electrical config and choose the
appropriate Low level.
For more information, see our
website: www.geckoalliance.com
3
Use the Up/Down key to select
the desired value. Then press the
Program key to confirm the selection.
Note: If the keypad does not have the
Program or Filter key, use the Light
key instead.
