Evaluation Board User Guide
LTpowerPlay Quick Start Procedure
The following procedure describes how to use LTpowerPlay to monitor and change the settings of LT7184S.
1. Download and install the LTpowerPlay GUI:
2. Launch the LTpowerPlay GUI.

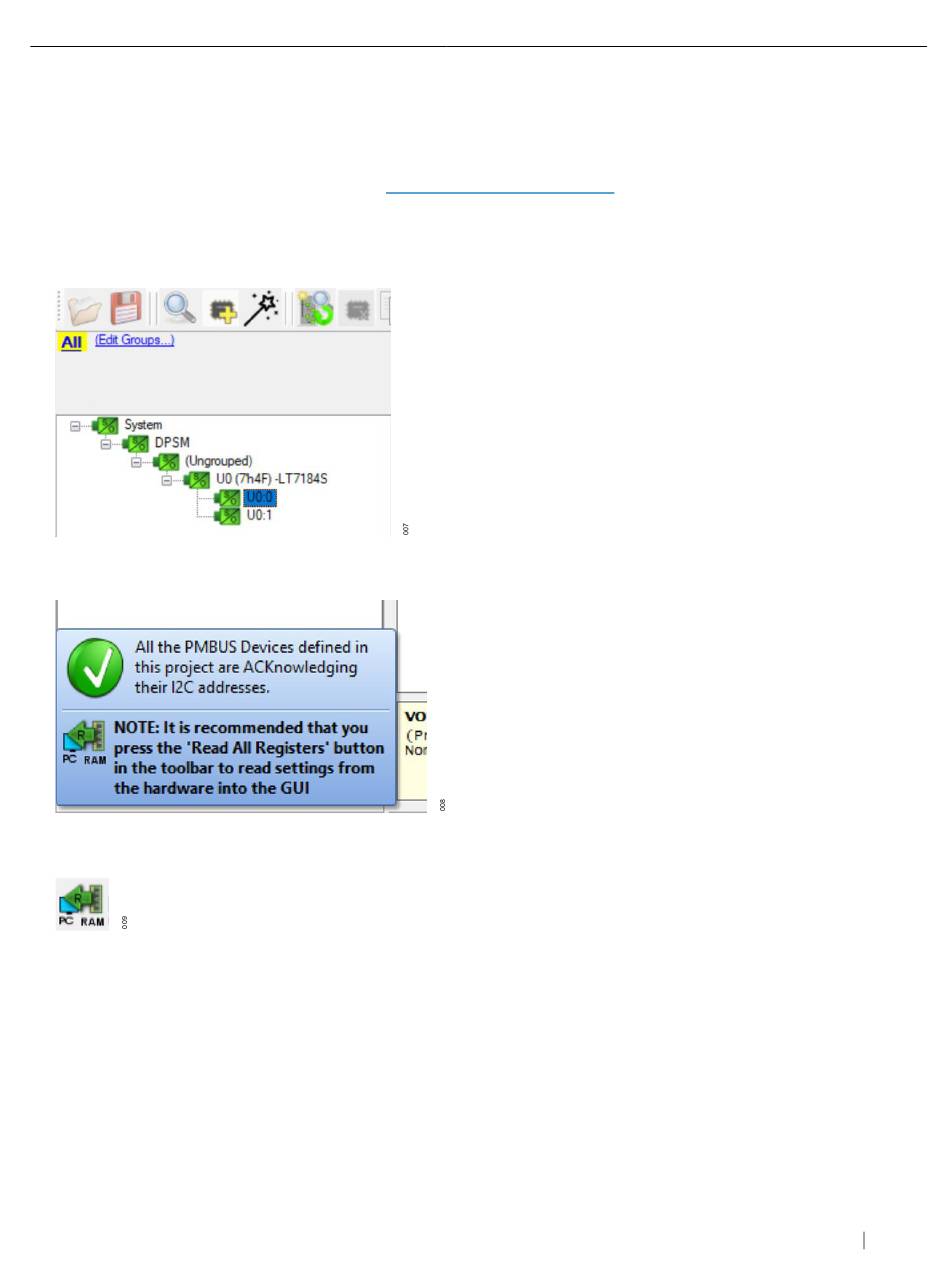

3. The GUI should automatically identify the EVAL-LT7184S-AZ. The system tree on the left-hand side should look like
the following image.
4. A green message box shows for a few seconds in the lower left-hand corner, confirming that the LT7184S is
communicating with the software.
5. In the toolbar, click the R (RAM to PC) icon to read the RAM from the LT7184S. This reads the configuration from
the RAM of the LT7184S and loads it into the GUI.
6. To change the output voltage to a different value, like 1.5V, in the Config tab, type 1.5 in the VOUT_COMMAND box
under the Voltage tab, as shown in the following figure.
