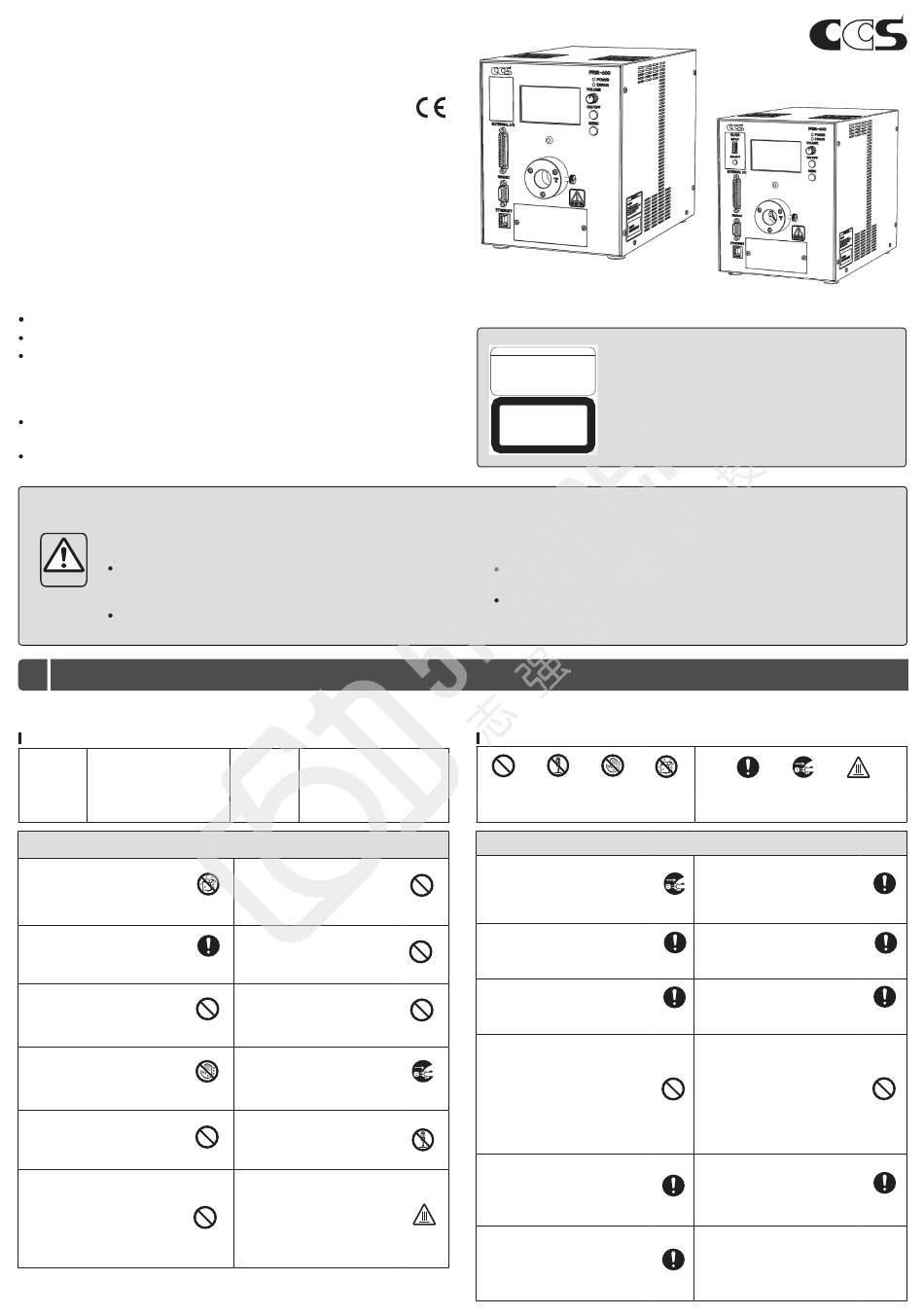

CCS PFBR-600SW2-LL Instruction Manual

Ultra-High Intensity Fiber Optic Illuminator
PFBR- 6 0 0SW2- LL
PFBR- 6 0 0SW2- LLCF
Inst r uc t ion Guid e
Thank you for purchasing a CCS product. To ensure proper
use of the product, please read this Instruction Guide before
use and keep it for your future reference.
These light sources are mainly used as ultra-high intensity fiber optic
illuminators for image processing and industrial inspections. They are used
with light guides attached. This enables the selection of a lighting pattern
that is suitable for the application.
Note: A light guide adapter is not provided with this product. Order one
separately.
Features
The light intensity can be controlled in up to 1024 steps.
Status confirmation and operation settings can be performed on the LCD.
In addition to the manual control from the front panel, external control with
parallel communications (including digital intensity control and analog
intensity control), Ethernet communications, and RS-232C communications
are also possible.
Quantity feedback function is available to suppress fluctuations in the
illumination.
High speed strobe lighting control in accordance with external trigger
signals is available.
Light Emitted by the Product
This product is Class-1 Laser product compliant to EN60825-1:2014. It emits high-intensity visible light. Because light-absorbing materials
convert incident light into heat, heat-sensitive or flammable light-absorbing materials may be damaged. Always observe the following
precautions when you use the product. Incorrect usage of the product may jeopardize safety.
Never look directly into the opening of the light guide adapter, a
W A R N I N G
light guide exit or reflected light while light is being emitted. There
is a risk of damage to your cornea and retina.
Never cover the light guide adapter or light guide exit with your
hand or other part of your body. There is a risk of burn injury.
1 Important Information for Equipment Safety
This product has been designed with full consideration of safety. However, incorrect usage of the products may result in fire, electric shock, or other serious
accidents. Observe the following precautions for prevention of accidents.
Hazards caused by incorrect usage and their levels are classified with the following indication:
Items with this mark indicate
Warning
that incorrect usage may result
in serious injury or death.
Avoid places where the unit might
be exposed to water such as near
humidifiers, water faucets or outside.
If water gets into the product, it may
result in fire or electric shock.
Be sure to connect to ground using
AC cable with 2-f lat-blade and a
round grounding pin for prevention of
MANDATORY
electric shock.
Follow t he inst r uc t i ons proper ly
and avoid improper environment or
improper usage such as overvoltage.
Improper use may cause fire, electric
shock, or the product malfunction.
DO NOT touch the product with wet
hands. It may cause electric shock.
D O N OT touc h the par ts inside.
The product has high voltage parts.
Touching these parts may result in
electric shock or burns.
Be sure to use heat-resistant light
guide so as to prevent melting or
burning of fibers.
Items with this mark indicate that
Caution
incorrect usage may result in
injury or property damage.
Warning
Avoid places with high temperature,
high humidity or corrosive gas.
Water wet
prohibited
Never open the case of this product.
ACTIONS
D O N OT l o o k at t h e li ght b e am
directly. It may lead to loss of vision
or blindness.
Prohibited
DO NOT use the product if it emits
smoke, fire, unusual smells, strange
s o u n d s o r b e c o m e s u n u s u a l l y
No wet
hot. Turn of f and unplug the unit
hands
immediately under these conditions.
Disassembling except for installation
and replacement of filters is strictly
prohibited to prevent fire and electric
Prohibited
shock.
DO NOT touch the product during
o p er at i o n, b e c ause t he sur fac e
temperature may be from 40 to 50
degree C, and the temperature of
the light guide adapter may be over
70 degree C. Wait for a while until it
Prohibited
is cool enough to handle in order to
prevent burns.
P F B R - 6 0 0 S W 2 - L L
RISK GROUP 3
WARNING
Possibly hazardous optical
radiation emitted from this product.
Do not look at operating lamp.
Eye injury may result.
CLASS 1
LASER PRODUCT
Never cover the light guide adapter or light guide exit. Doing so may
result in fire.
Direct illumination to human body may cause burn injury. Never
illuminate flammable material, as there is a risk of fire.
- Read Before Use -
Items and its details to be observed are classified into the following indication:
Do not
Prohibited
disassemble
The above marks show the items
prohibited.
When disconnecting the cables, be
sure to hold the plug or connector, not
the cord. Pulling the cord itself may
damage it and cause fire or electric
Prohibited
shock.
DO NOT drop or give shocks to the
product. It may damage the product
and cause malfunction.
Prohibited
Prevent any dust getting into through
the air ventilation holes. Dust may
cause malfunction, damage to the
product or fire.
Prohibited
Be sure to keep the product and the
AC power cable as far away from any
electrical noise source as possible.
Shield the product from any electrical
Unplug AC
noise source, such as an inverter and
power cord
high voltage cables. An AC power cable
should be as short as possible and must
be 5 m or shorter.
Do not
disassemble
Avoid dusty places to prevent any
dust getting into the body through the
ventilation holes. Dust may damage
t h e p r o d u c t a n d r e s u l t i n f i r e o r
malfunction.
Hot surface
Install this product in a well ventilated
r o o m. In o r der to ensure en ough
room for air circulation, maintain the
clearance 100 mm min the front and
the back, the top and side is 50 mm
min.
- 1 -
P F B R - 6 0 0 S W 2 - L LC F
WARNING LABEL
RISK GROUP 3
Possibly hazardous optical radiation emitted
Warning
from this product. Do not look at operating
lamp. Eye injury may result.
No wet
Water wet
MANDATORY
hands
prohibited ACTIONS
The above marks show the instruction
which must be observed.
Caution
Check the fan and ventilation holes
r e g u l a r l y t o m a ke s u r e t h ey a r e
n ot c ove re d w it h dust o r de b r i s.
Unplug AC
Inadequate ventilation will keep heat
power cord
inside the product and may cause fire.
S up p l y t h e p r o du c t w i t h st a b l e
voltage power. Voltage fluctuations
may cause unstable performance or
MANDATORY
ACTIONS
malfunction.
Be sure to turn off the power, before
disconnecting cables. It may cause
malfunction or damage the product.
MANDATORY
ACTIONS
M a i n t a i n a c o n s t a n t o p e r a t i n g
ambient temperature in accordance
w i t h t h i s d o c u m e n t . S u d d e n
change of temperature may cause
variation of illuminance, malfunction
o r f i r e .(e . g . N e a r t h e o u t l e t o f
Prohibited
air conditioners and heaters) If
you use ex haust air duc t , keep
t h e a i r e x h a u s t a m o u n t o v e r
3
2.3 m /min.
Install the product unit on a stable
s u r f a c e , p l a c i n g t h e b o t t o m -
side with rubber feet down. If it
falls down, it may cause injury or
MANDATORY
ACTIONS malfunction.
MANDATORY
ACTIONS
( w i t h a f i l t e r c h a n g e r )
Unplug AC
Hot surface
power cord
MANDATORY
ACTIONS
MANDATORY
ACTIONS
MANDATORY
ACTIONS
Prohibited
MANDATORY
ACTIONS
