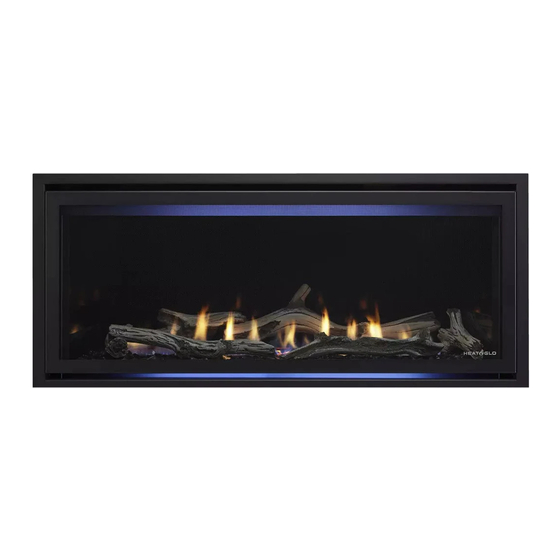

Heat & Glo LOGS-COSMO36 Installation Instructions Manual

LOGS-COSMO32, LOGS-COSMO36, LOGS-COSMO42
MODELS: COSMO32-IFT, COSMO32-IFT-B, COSMO36-IFT-B, COSMO42-IFT, COSMO42-IFT-B, SLR-X-AU, B41L-AU
Leave this manual with party responsible for use and
operation.
CAUTION! Risk of Cuts or Abrasions. Wear protective
gloves and safety glasses during installation.
CAUTION: Logs are fragile, handle with care.
KIT COMPONENTS:
• Log Burner Assembly
• Ceramic Logs
COSMO32-IFT, COSMO32-IFT-B (4)
COSMO36-IFT-B, B41L-AU (6)
COSMO42-IFT, COSMO42-IFT-B (6)
SLR-X-AU (6)
• Glass Baffle
(COSMO42-IFT-B,COSMO42-IFT Only)
• Lava Rock (1 Bag)
• Mineral Wool (1 Bag)
• Instructions
Heat & Glo • LOGS-COSMO32, LOGS-COSMO36, LOGS-COSMO42, SLR-X-AU, B41-AU Installation Instructions • 2491-932 Rev. G • 5/20
Installation Instructions
INSTALLATION
1. Remove fixed glass assembly by unlatching the top left
and right spring latches. Allow the fixed glass assembly
to tilt away from the fireplace and lift the fixed glass as-
sembly up and out of the opening.
2. Remove any existing media from appliance.
3. Remove the base pan assembly by removing two
screws located in front of the burner. Use your thumbs
and fingertips to grasp the front of the base pan and the
flange in the front of the burner respectively. Lift base
pan up and out.
4. Begin removal of the burner assembly by removing two
screws that secure the pilot hood to the bracket that is
attached to the burner. These screws are located on the
back side of the pilot hood. Once the screws are re-
moved, slide the pilot hood toward the back wall of the
firebox and lift out.
Remove the two screws that attach the pilot assembly
to the burner bracket. Remove the screw that fastens
the burner bracket to the valve plate. Remove burner
by sliding it to the left to disengage the orifice flex. See
Figure 1. Discard original burner and media material.
5. Adjust air shutter setting on new burner. See Table 1.

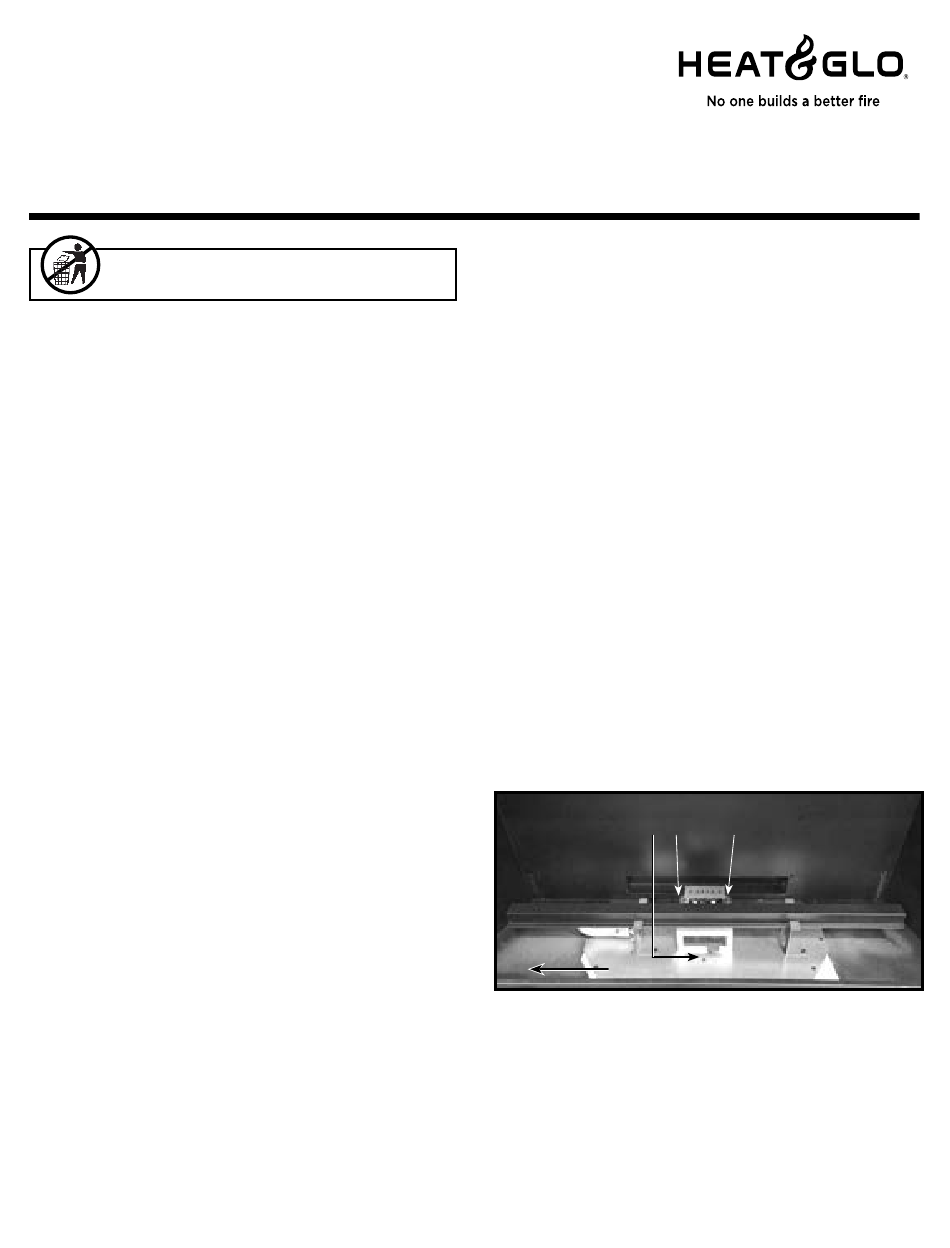

Figure 1. Remove Pilot Screws
REMOVE SCREWS REMOVE SCREWS
SLIDE BURNER LEFT TO DISENGAGE SLIDE BURNER LEFT TO DISENGAGE
1
