Heat & Glo LOGS-I35 Log Placement Instructions

Log Set Assembly: LOGS-I35
Models: GRAND-I35, GRAND-I35-SP, GRAND-I35-C
CAUTION: Logs are fragile, handle with care.

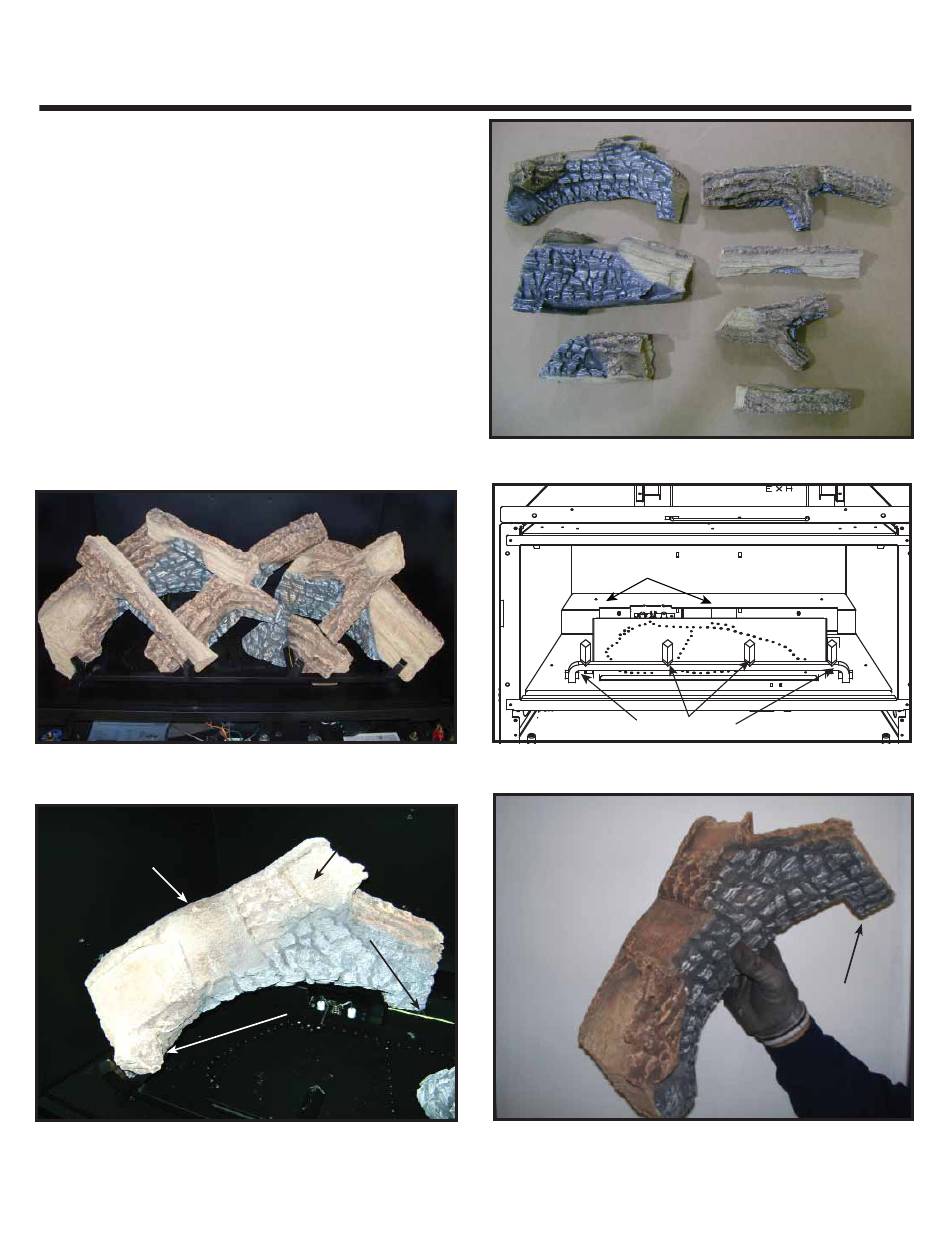

Figure 1. Log Set Installed
REST LOG #5 REST LOG #5
HERE HERE
Figure 3. Log #1
Log #1 (SRV2205-702) Position Log #1 as shown in Figure 3. Mate the left grate tine with the log groove. Rest the nose of
the log on the log support as shown.
REST LOG #6 REST LOG #6
HERE HERE
REST NOSE REST NOSE
OF LOG ON OF LOG ON
LOG SUPPORT LOG SUPPORT
1
MATE TINE MATE TINE
WITH LOG WITH LOG
GROOVE GROOVE
Heat & Glo • LOGS-I35 Log Instructions • 2205-935 Rev. C • 7/11

LOG PLACEMENT INSTRUCTIONS

#1
SRV2205-702 SRV2205-702
#2
SRV2205-701 SRV2205-701
#3
SRV2205-705 SRV2205-705
LOG SUPPORT
GRATE TINES
Figure 2. Reference Points
Figure 4. Log #1
#4
SRV2205-704 SRV2205-704
#5
SRV2205-710 SRV2205-710
#6
SRV2205-703 SRV2205-703
#7
SRV2205-706 SRV2205-706
LOG NOSE LOG NOSE
1
