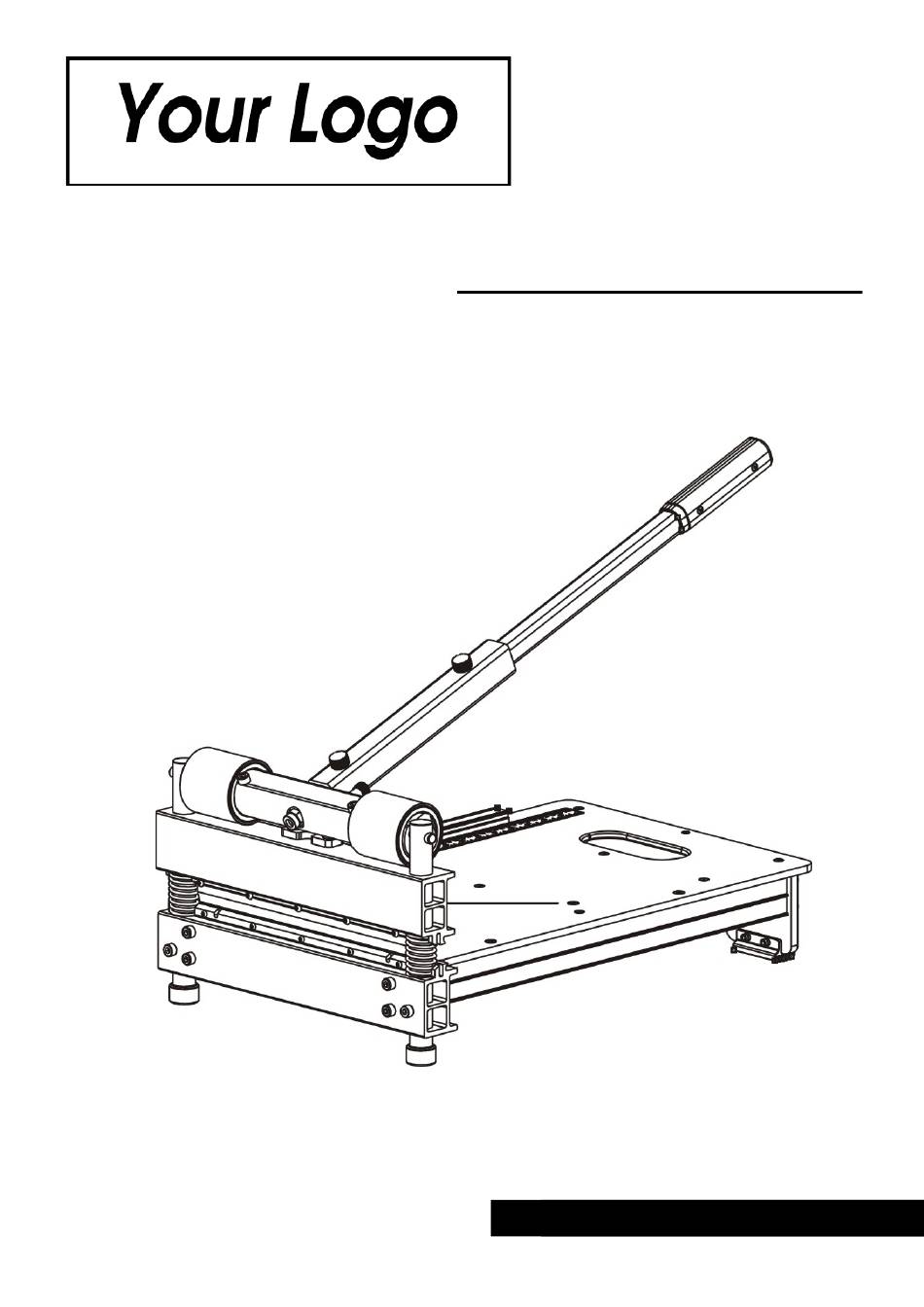

- Page 1 OPERATION MANUAL Flooring Cutter DR-330 Your Web Address...
- Page 2 SAFETY RULES FOR THE FLOORING CUTTER 1. READ AND UNDERSTAND THIS INSTRUCTION MANUAL BEFORE OPERATING THE MULTI-FLOORING CUTTERS. 2. If you are not thoroughly familiar with the operation of Multi-flooring Cutter, obtain advice from a qualified instructor. 3. Stay alert. Do not operate while under the influence of drugs, alcohol, or medication.
- Page 3 CUTTING AND C Installation Install the table to the cutter base with provided screws and bolts as shown. Then insert the handle into the handle base as show and tighten provided screw. Warning: Do not put your fingers against the sharp edge of the blade at any time.
- Page 4 Changing the Blade Use the provided Allan wrench to remove the five screws, then hold the blade by each end and then carefully move the blade out of blade holder. Note: the flat side of the blade should face the table. Warning: Do not put your fingers against the sharp edge of the blade at any time.
-
Page 5: Parts List
PARTS LIST... - Page 6 PARTS LIST Parts Q’ty Parts Q’ty Screw M5X12 Screw M8X12 Washer Φ6 M8 Screw A Rubber Feet A Handle Base Screw M8X55 Guide Bar Cutter Base Bolt M12X120 Battery Box / Light Belt Assembly Handle A Screw M8X48 M8 Screw B Screw M4X14 Handle B Spring...
