Microtek ScanMaker 3700 Supplementary Manual page 9

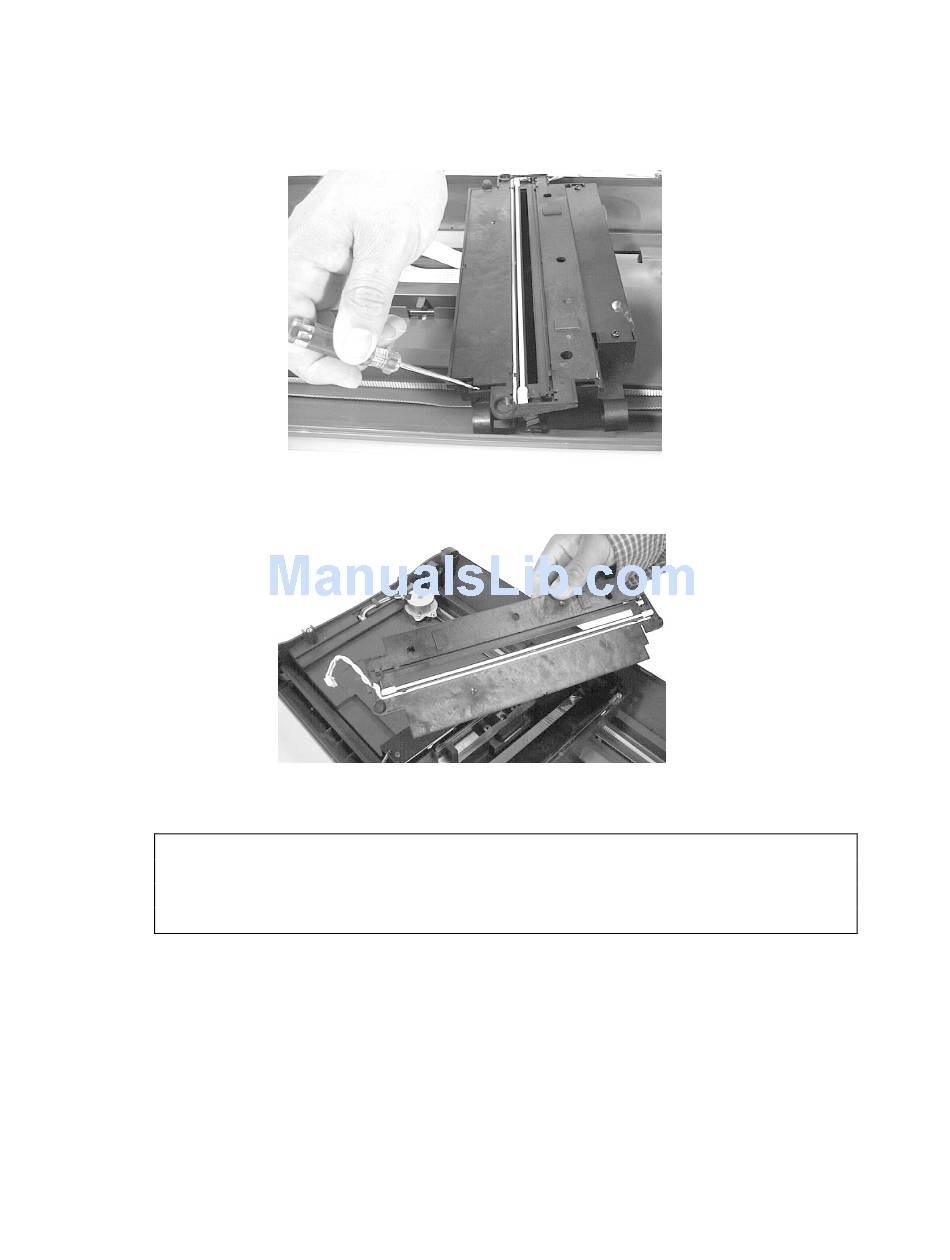

5. Use a small flat screwdriver and dislodge the lamp assembly from the scanner
carriage. (See illustration below.)
6. Once scanner lamp assembly is disassembled from the scanner carriage, simply lift
the lamp assembly upward to remove. (See illustration below.)
Warning: Do not touch the mirrors or any other parts inside of the scanner
carriage assembly after you remove the scanner lamp assembly. If any dust
particles land on the mirrors or touching the mirrors may affect the quality of the
scanned output.
Connecting the new Lamp Assembly
1. Check new lamp or lamp assembly and make sure that the lamp & assembly are not
physically damaged.
9
