Microtek ScanMaker 3700 Supplementary Manual page 10

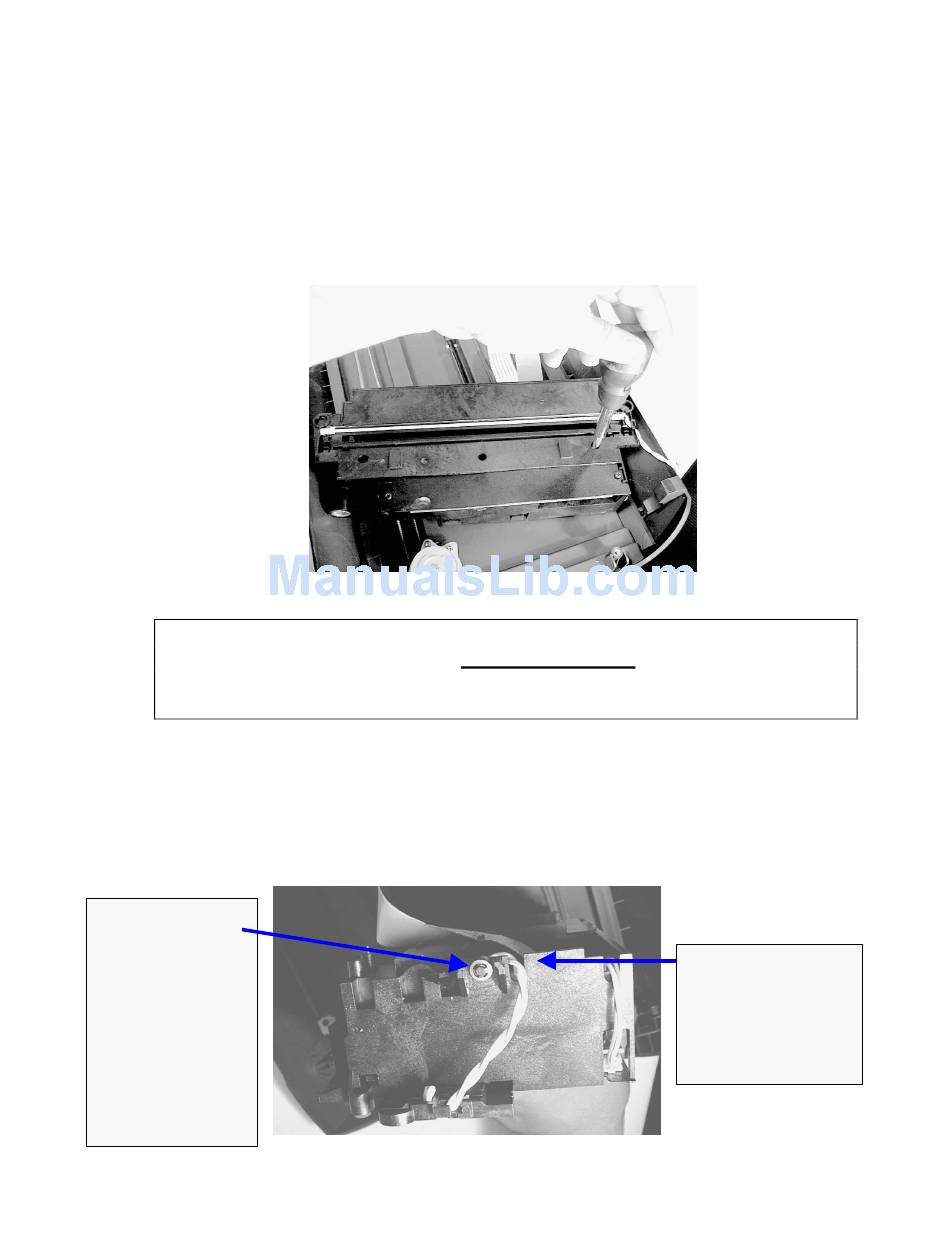

2. Align the new lamp assembly directly over the open area of your scanner carriage.
Once the lamp assembly has lined up just right firmly press downward in order to
successfully clip the lamp assembly to the scanner's carriage.
3. Replace the two small phillips screws that hold the lamp assembly secure to the
scanner carriage and connect the lamp assembly connector to the carriage assembly
circuit board. (See illustration below.)
Note: Check to make sure there are no loose wires, disconnected connectors and
also make sure that the scanner's running motor belt is connected and did not
come loose. Also take your canned air at this point and blow out any dust or
particles within the scanners lower housing.
4. Make sure that the scanner lamp assembly wire is inserted through the proper
groove. If you connect the wire outside the scanner lamp assembly groove it will
jam the scanner carriage during scans. (See illustration below.)
Notice the roller
on the carriage
guide. This
roller helps the
scanner carriage
glide across the
scanner bed. No
wiring should be
connected higher
than this roller.
10
Notice how the
scanner lamp
assembly wire is
inserted through
the groove.
