Microtek ScanMaker 3700 Supplementary Manual page 7

3. Locate the connector that connects the florescent lamp to the scanner's carriage
mechanism. You will need to remove the connector. If it is too tight or difficult to
remove manually use the needle nose pliers to remove the connector. (See illustration
below.)

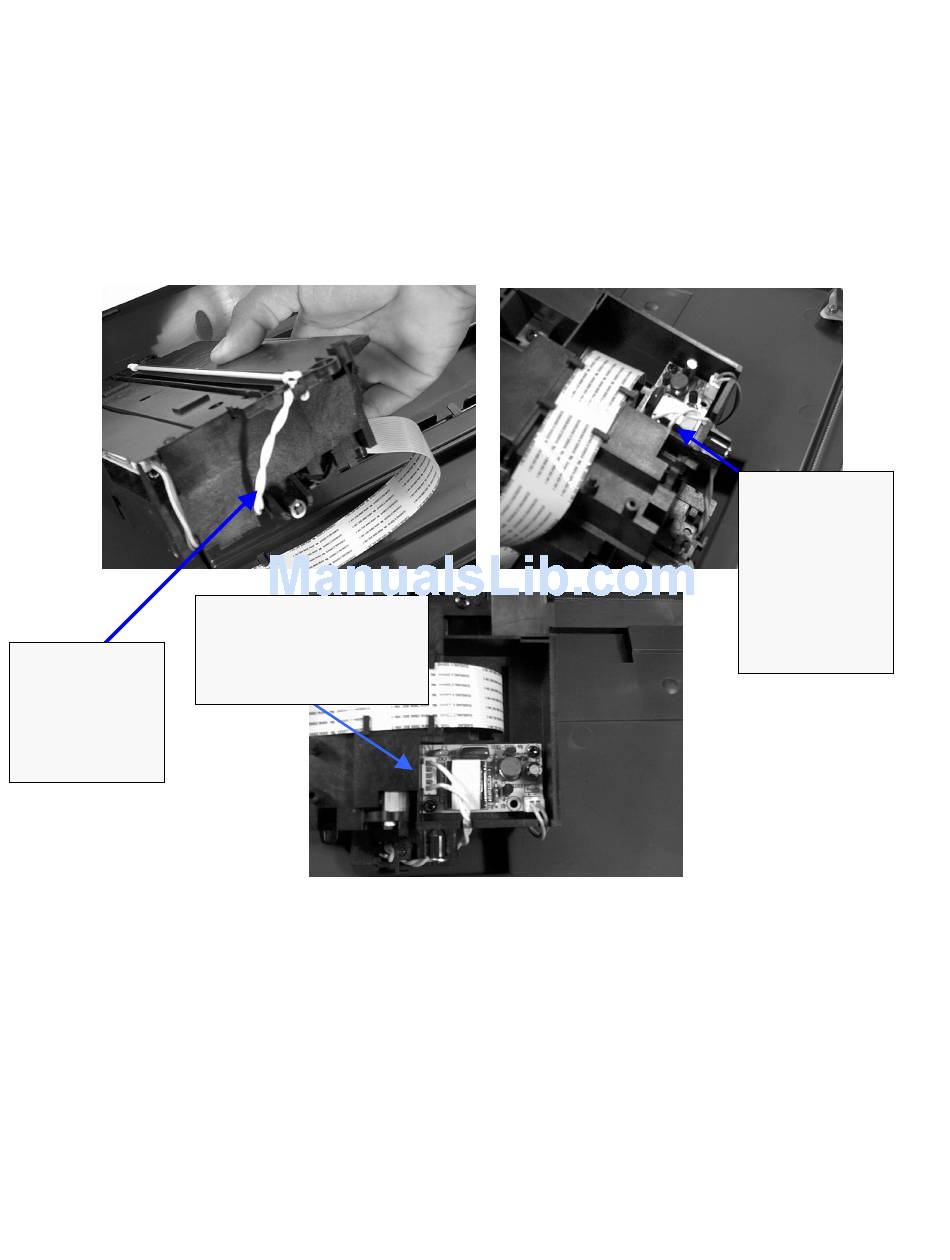

Scanner Lamp
connector
wires
(side view)
Scanner Lamp
Assembly connector.
(Underneath the scanner
lamp assembly)
7
Scanner Lamp
connector
wires leading
to lamp
connector on
circuit board.
