5. Replace the carriage shaft bar guide. You can easily achieve this by locating the clip
post towards the front of the scanner. Push the metal shaft downward until it snaps into
the clip post. (See illustration below.)
Assembling the Upper Housing
1. Before putting the upper housing assembly together, it may be a good time for you to
clean the interior side of the scanners glass bed. Clear glass cleaners and a soft cotton
cloth are the recommended materials to clean the scanners glass bed. Using a clear
solution will prevent streaks from forming on your scanners glass bed.
2. Now take the upper housing and align with the bottom part of the scanner housing.
Then lift the rear of the scanner's upper housing about one inch and slide forward until
the front of the upper housing drops about half an inch. Then, pull the upper housing
backward until it comes flush with the scanner's lower housing. Once the upper and

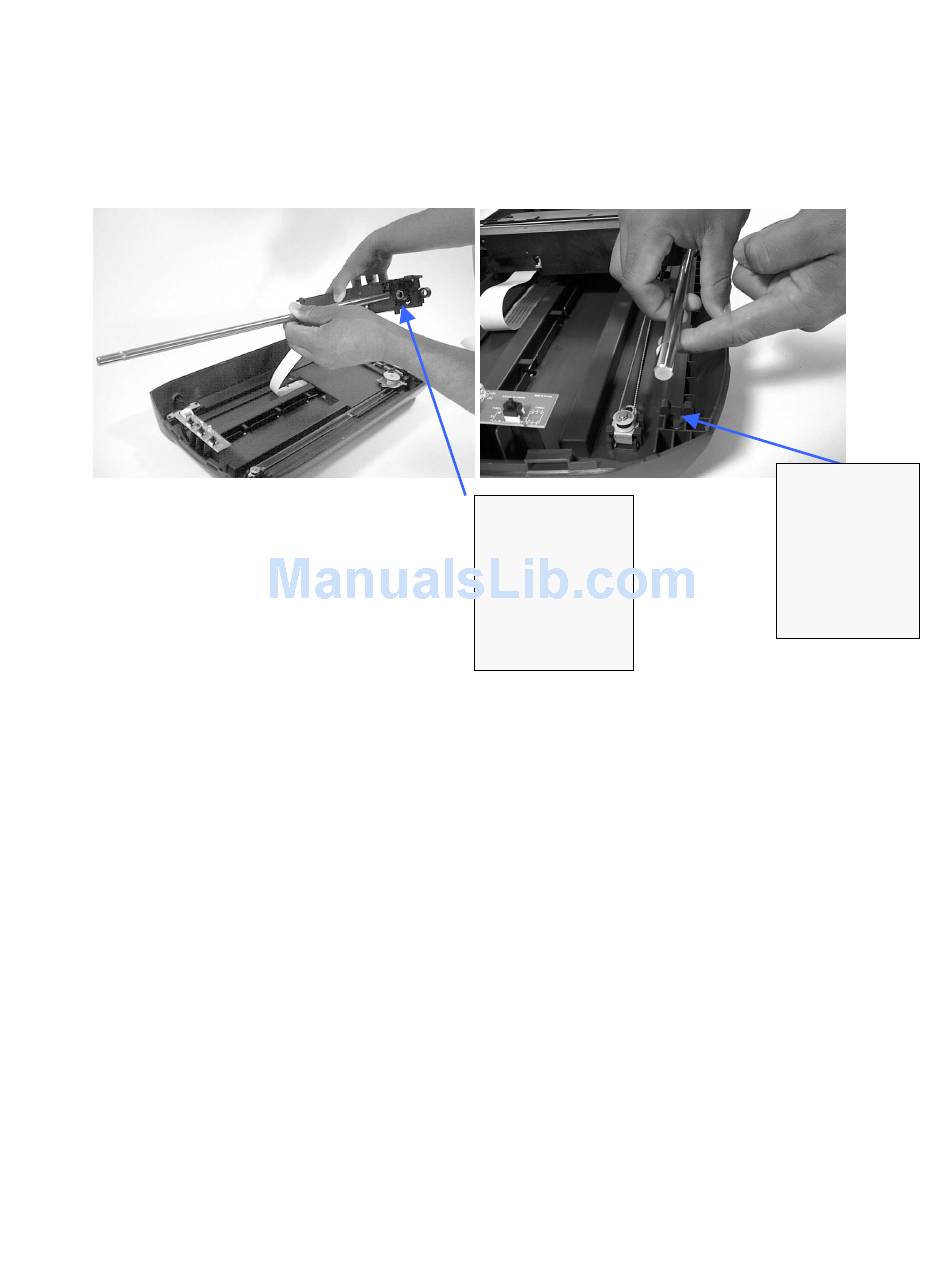

Insert Shaft
through the
shaft bar
receptacles on
the Scanner
lamp assembly.
11
Push the
metal shaft
downward
until it snaps
into the clip
post.
