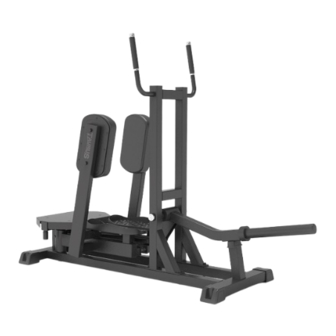

Taurus Standing Hip Abductor IFP Assembly And Operating Instructions Manual
  1. Manuals
  2. Brands
  3. Taurus Manuals
  4. Fitness Equipment
  5. Standing Hip Abductor IFP
  6. Assembly and operating instructions manual

Taurus Standing Hip Abductor IFP Assembly And Operating Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Assembly and Operating Instructions
max. 150 kg
~ 120 Min.
84 kg
L 172 | W 60 | H 128
FSTFIFP1622.01.01
IFP1622
Art. No. TF-IFP1622
TF-
Taurus Standing Hip Abductor IFP
Standing Hip Abductor
OWNER'S MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the Standing Hip Abductor IFP and is the answer not in the manual?

Questions and answers

Related Manuals for Taurus Standing Hip Abductor IFP

Summary of Contents for Taurus Standing Hip Abductor IFP

  • Page 1 Assembly and Operating Instructions max. 150 kg ~ 120 Min. 84 kg L 172 | W 60 | H 128 FSTFIFP1622.01.01 IFP1622 Art. No. TF-IFP1622 Taurus Standing Hip Abductor IFP Standing Hip Abductor OWNER'S MANUAL...
  • Page 2 Standing Hip Abductor IFP...

  • Page 3: Table Of Contents

    Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing...
  • Page 4 Standing Hip Abductor IFP...
  • Page 5 European VAT Number: DE813211547 Disclaimer © TAURUS is a registered brand of the company Fitshop GmbH. All rights reserved. Any use of this trademark without the explicit written permission of Fitshop is prohibited. Product and manual are subject to change. Technical data can be changed without advance notice.
  • Page 6 (person with legal responsibility). Class H (home use): use at home. These stationary training devices are intended for the use in private homes where access to the training device is regulated by the owner (person with legal responsibility). Standing Hip Abductor IFP...
  • Page 7 Please pay close attention to the safety and maintenance instructions given here. The contract partner cannot be held liable for damage to health, accidents or damage to the equipment when it is not used in accordance with these instructions. The following safety instructions may appear in this manual: ࣑...

  • Page 8: General Information

    Packaging dimensions (L x W x H) approx.: 142.5 cm x 83.5 cm x 35 cm Set-up dimensions (L x W x H) approx.: 172 cm x 59.5 cm x 128 cm Maximum user weight: 150 kg Maximum load: 150 kg Use class: Standing Hip Abductor IFP...

  • Page 9: Personal Safety

    Personal Safety ⚠ DANGER Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year.

  • Page 10: Set-Up Place

    (parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight unevenness. Class equipment, exercise equipment may only be used Speci areas where access, supervision Class: control specifically regulated Maxim by the owner. Maxim Produ Produ Produ Standing Hip Abductor IFP...

  • Page 11: Assembly

    ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries.
  • Page 12 Pedal Fixed Moun ASSY Pedal Fixed Moun ASSY Link Rod ASSY Link Rod ASSY Foot Plate Foot Plate Shaft Shaft Leg Pad Leg Pad Left Pedal Left Pedal Right Pedal Right Pedal Hardware Pack Hardware Manual Owner's Manual Standing Hip Abductor IFP...

  • Page 13: Assembly

    Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. If you have difficulty recognising the graphics, we recommend that you open and/or download the PDF instructions stored in the webshop on your end device (e.g.
  • Page 14 Ø9*Ø16*1.6 flat washers (26) and two M8 lock nuts (29). four Φ9*Φ16*1.6 Flat Washer (#26) Tighten the screws, bolts and nuts with the appropriate tools. four M8 Nylon Lock Nut (#29) Note: Wrench Tighten Bolts and Nylon Lock Nuts. Standing Hip Abductor IFP...
  • Page 15 Assembly Step 2: Assembly of the Barbell Bar Rack and the Swing Frames STEP 2 Attach the barbell bar rack (3) to the stand frame (2) using one shaft (9), two caps (13), two M8*6 screws (15) and two M10*25 screws (17). 1.
  • Page 16 M12 Nylon Lock Nut (#31) washers (28) and three M12 lock nuts (31). Note: 1.Wrench Tighten Bolts. Tighten the screws and nuts with the appropriate tools. 2. Adjust the Link Rod ASSY to make the Swing Frame ASSY symmetry. Standing Hip Abductor IFP...
  • Page 17 STEP 4 Attach the Pedal Fixed Mount ASSY (#6) to the Bottom Frame ASSY (#1) and the Left Swing Frame ASSY (#4) and the Right Swing Frame ASSY (#5) using: two Φ40*Φ30.2*14.5 Circle Ring (#14) Step 4: Assembly of the Pedal Fixed Mount two M10*25 SHCS (#19) Attach the pedal fixed mount (6) to the bottom frame (1), the left swing frame (4) and the two M10*75 HHB (#24)
  • Page 18 Frame ASSY (#5) using: M10*65 bolts (23) and four Ø11*Ø20*2 flat washers (27). Tighten the bolts and nuts with the appropriate tools. four M10*65 HHB (#23) four Φ11*Φ20*2 Flat Washer (#27) Note: Wrench tighten bolts and Nylon Lock Nuts. Standing Hip Abductor IFP...
  • Page 19 Load and Unload Weight Plates ⚠ CAUTION Make sure to always use some sort of weight collar when exercising with external weights. Never store unused weight plates on the floor. Store unused weight plates on a weight rack. To load the weight horn, carefully grab one weight plate at a time with both hands. Slide each weight plate onto the weight horn one by one until you have reached your desired Adjust and Exercise Instruction training weight.

  • Page 20: Storage And Transport

    Make sure that the equipment is protected from moisture, dust and dirt in the selected storage location. The storage location should be dry and well ventilated and have a constant ambient temperature between 10°C and 35°C. Standing Hip Abductor IFP...

  • Page 21: Troubleshooting, Care And Maintenance

    TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. ⚠ CAUTION Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner.

  • Page 22: Maintenance And Inspection Calendar

    The materials can be recycled as per their symbols. Through the reuse, recycling of materials or other forms of recovery of old equipment, you make an important contribution to the protection of the environment. Standing Hip Abductor IFP...

  • Page 23: Recommended Accessories

    RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. For training equipment like smith machines, weight benches or racks this could for example be a floor mat, which makes your fitness equipment stand more securely and also protects the floor from sweat but it could be also additional weights, handles, foot straps for leg exercises or triceps ropes.

  • Page 24: Ordering Spare Parts

    IFP1622 Brand / Category: Standing Hip Abductor Taurus / multi gym OWNER'S MANUAL CAUTION! Read all precautions and instructions in this manual before Model Name: using this equipment. Taurus Standing Hip Abductor IFP Article Number: TF-IFP1622 Standing Hip Abductor IFP...

  • Page 25: Parts List

    Parts List Grade No. Part no. Description Qty. IFP162201ASSY Bottom Frame ASSY IFP162202ASSY Stand Frame ASSY IFP162203ASSY Barbell Bar Rack ASSY IFP162204ASSY Left Swing Frame ASSY IFP162205ASSY Right Swing Frame ASSY IFP162206ASSY Pedal Fixed Mount ASSY IFP162207ASSY Link Rod ASSY IFP16220800 Foot Plate IFP17070900...
  • Page 26 GB958DHS2 Flat Washer Φ9*Φ16*1.6 GB9510DHS2 Flat Washer Φ11*Φ20*2 14 GB9512DHS2 Flat Washer Φ13*Φ24*2.5 NM8DHS2 Nylon Lock Nut M8 NM10DHS2 Nylon Lock Nut M10 NM12DHS2 Nylon Lock Nut M12 Standing Hip Abductor IFP...
  • Page 27 Bottom Frame ASSY (1) Grade No. Part no. Description Qty. IFP16220100 Bottom Frame GB17880.5M6*16.5DS17 Rivet Nut M6 IFP12013300 Foot Cap RS17000400 Rubber Bumper GB818M6*20DHS2 Cross Recessed Pan Head Screw M6*20 GB70M10*20DHS20NL Socket Head Cap Screw M10*20 Stand Frame ASSY (2) Grade No.
  • Page 28 KPSFID3000 Tube Plug Φ50.8 IN-D10141900 Nylon Sleeve Link Rod ASSY (7) Grade No. Part no. Description Qty. IFP16220700 Link Rod SA12T_K Rod Rnds Bearings SA12T_KL Rod Rnds Bearings(LH) GB41M12DS2 Hex Nut M12 GB41LM12DS2 Hex Nut M12(LH) Standing Hip Abductor IFP...

  • Page 29: Exploded View And Parts List

    Exploded View and Parts List Exploded Drawing Overall...
  • Page 30 Cross Recessed Pan Head Screw M6*20 GB70M10*20DHS20NL Socket Head Cap Screw M10*20 Part No. Description Grade No. IFP16220200 Stand Frame Standing Hip Abductor IFP KPSFID3000 Tube Plug □50.8 V39500 Aluminum Grip Ring Φ25.4 V39600 Aluminum Grip Cap Φ25.4 026-01PL0206-14 Grip YZGB7710-32*3.2N19...
  • Page 31 Exploded View and Parts List Left Swing Frame ASSY Right Swing Frame ASSY Exploded View and Parts List Pedal Fixed Mount ASSY Link Rod ASSY Part No. Description Grade No. IFP16220400 Left Swing Frame GB2766206-2ZC3 Bearing 6206 CF37543400 Tube Plug □38.1*76.2 KPSFID2800 Tube Plug □50.8*76.2 KPSFID3000...

  • Page 32: Warranty

    WARRANTY Products from TAURUS® are subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline.
  • Page 33 Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.

  • Page 34: Contact

    Sie unserer Homepage: Sie unserer Homepage: https://stg.fit/statit6 https://stg.fit/statitb https://stg.fit/statit9 Please find a detailed overview including address and opening hours for all stores of the Sport-Tiedje Group in Germany and abroad on the following website: www.sport-tiedje.com/en/stores Standing Hip Abductor IFP...
  • Page 35 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA Fitshop is Europe’s largest specialist store for www.fitshop.co.uk home fitness equipment with currently over 70 www.fitshop.de/blog stores and one of the world’s most renowned online mail order companies for fitness equipment. Private customers order via the 25 www.facebook.com/fitshop.co.uk web shops in the respective national language or have their desired equpiment assembled on...
  • Page 36 Notes Standing Hip Abductor IFP...
  • Page 37 Notes...
  • Page 38 Notes Standing Hip Abductor IFP...
  • Page 40 Taurus Standing Hip Abductor IFP...
