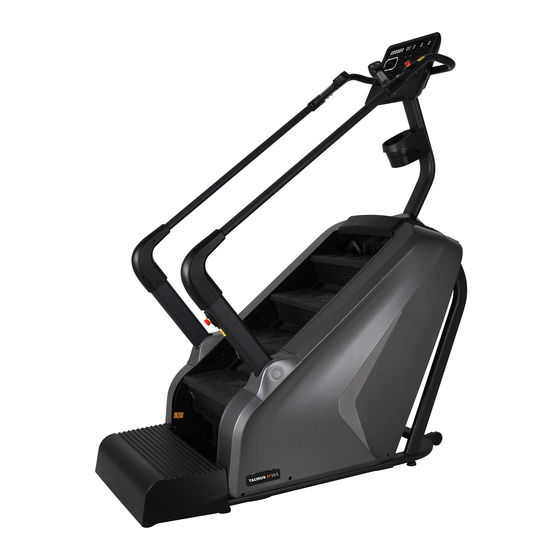

- Page 1 Assembly and Operating Instructions max. 180 kg ~ 60 Min. 185 kg L 176 | W 80 | H 211 FSTFST105T.01.02 Art.-No. TF-ST105-T Taurus Stair Trainer ST10.5 Touch...
- Page 2 ST10.5 Touch...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Electrical Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly OPERATING INSTRUCTIONS Touch Screen Functions Button Functions Turning On the Equipment and Initial Settings 3.3.1 Date and Time Settings 3.3.2 General and Wifi Settings Training Programmes 3.4.1 Quick Start 3.4.2 Pre-set Programmes... - Page 4 RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing WARRANTY CONTACT ST10.5 Touch...
- Page 5 European VAT Number: DE813211547 Disclaimer © TAURUS is a registered brand of the company Fitshop GmbH. All rights reserved. Any use of this trademark without the explicit written permission of Fitshop is prohibited. Product and manual are subject to change. Technical data can be changed without advance notice.
- Page 6 (person with legal responsibility). Class H (home use): use at home. These stationary training devices are intended for the use in private homes where access to the training device is regulated by the owner (person with legal responsibility). ST10.5 Touch...
- Page 7 Please pay close attention to the safety and maintenance instructions given here. The contract partner cannot be held liable for damage to health, accidents or damage to the equipment when it is not used in accordance with these instructions. The following safety instructions may appear in this manual: ATTENTION This notice indicates potentially hazardous situations which, if not avoided, may result in property damage.
-
Page 8: General Information
176 cm x 79.5 cm x 211 cm Article weight (gross, incl. packaging) approx.: 221 kg Article weight (net, excl. packaging) approx.: 185 kg Maximum user weight: 180 kg Pedal height: 23 cm Height of highest step: 100 cm Use class: ST10.5 Touch... -
Page 9: Personal Safety
Personal Safety ⚠ DANGER Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly aff ected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 10: Electrical Safety
Do not install any additional apps. NOTICE The pre-installed apps on TFT consoles are produced and provided by external manufacturers. Fitshop does not take any responsibility for the availability, functionality or contents of these apps. ST10.5 Touch... -
Page 11: Set-Up Place
Set-Up Place ⚠ WARNING Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Make sure that there is a safety area behind the treadmill with a length of at least 2 m and a width at least equal to the width of the treadmill. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 12: Assembly
In the event of complaints, the contractual partner must be contacted directly. ⚠ CAUTION If parts of the scope of delivery are missing or damaged, the assembly must not be carried out. ST10.5 Touch... - Page 13 4: Rear Handrail 5: Console Support Column 41L/R: Left and Right 47: Console 1: Main frame Decorative Cover 44L/R: Left and Right Exterior Decorative Cover 2L: Left Support Column 45L/R: Left and Right Interior Decorative Cover 40: Pedal 58: Decorative Cover 3L/R: Left and Right Handrail 2R: Right Support Column...
-
Page 14: Assembly
Take out all parts and place the main frame (1) on a fl at ground. Attach part A of the pedal (40) to part B of the main frame (1). ATTENTION Make sure the two parts are centered. ST10.5 Touch... - Page 15 Step 2: Assembly of the Support Column and Decorative Cover ATTENTION Make sure not to pinch the cables during the following steps. Connect the console extension wire (104) to the lower wire (105). NOTICE Do not fully tighten the screws yet in the following step. Attach the support column (5) to the main frame (1) with four screws (68) and four washers (95).
- Page 16 Attach the left and right support columns (2L & 2R) to the main frame (1) with three screws (69) and three washers (95) each. Attach the left and right handrails (3L & 3R) to the left and right support columns (2L & 2R) with two screws (73) and two washers (96) each. ST10.5 Touch...
- Page 17 Step 4: Assembly of the Rear Handrail and Decorative Covers Connect the pulse extension wire 1 (111) to the pulse extension wire 2 (112). Connect the key board extension wire 1 (115) to the key board extension wire 2 (116). Repeat the steps on the other side.
- Page 18 ST10.5 Touch...
- Page 19 Step 5: Assembly of the Console and Bottle Holder Connect the wires of the console (47) with their respective components on the rear handrail (4) and support column (5). ATTENTION Make sure not to pinch the cables during the following steps. Attach the console (47) to the support column (5) with four screws (78).
- Page 20 ST10.5 Touch...
- Page 21 Step 6: Alignment of the Feet If the fl oor is uneven, you can stabilize the stair trainer by turning the two setting screws under the main frame. Lift the stair trainer on the desired side and rotate the setting screws under the main frame. Rotate the screws clockwise in order to raise the surface.
-
Page 22: Operating Instructions
To enable the safety key to detach from the contact point of the cockpit in the event of a fall, the safety key clip must be fi rmly attached to your clothing! Make sure that the safety key is not accessible to children. ST10.5 Touch... - Page 23 Settings Date and weekday Time Wifi Media/apps Quick Start Pre-set Target programmes programmes & fl oor and custom mode Displays the current date, weekday and time Date, weekday and time Tap to adjust the time, date and/or geographic location Wifi Lights up when the console is connected to a wifi Tap to enter general settings such as brightness and volume, Settings...
- Page 24 Display of the accumulated calories burned in kcal NOTICE These data serve as a rough guide for comparing your Calories training sessions, they must not be used for medical purposes. Display of the accumulated height meter in m Altitude ST10.5 Touch...
-
Page 25: Touch Screen Functions
Touch Screen Functions The TFT-console is equipped with many touch functions to control your training. Depending on which interface you are currently in, the layout can diff er slightly. Their functions, however, remain the same. Quick keys for speed adjustment Quick keys for speed adjustment Pause training End training... -
Page 26: Button Functions
Setting range: 1-25 Press to decrease the speed SPEED (DOWN) Each press decreases the speed by 1level Setting range: 1-25 Turn right to unlock the equipment EMERGENCY Press down to lock the equipment STOP SWITCH Press down for emergency stop ST10.5 Touch... - Page 27 NOTICE Please note that smartphones are compatible for wireless charging. USB port to read audio and video data Wireless charging function for smartphones Audio output for headphones Emergency stop switch Infrared sensing area Emergency stop switch...
-
Page 28: Turning On The Equipment And Initial Settings
If the button is enabled, it lights green. If the button is disabled, it lights grey. To leave the setting interface for date and time and return to the main menu, tap on the back or home button. Setting interface for date and time. ST10.5 Touch... -
Page 29: General And Wifi Settings
3.3.2 General and Wifi Settings In the general settings you can adjust some basic console settings as well as the wifi settings. To enter the general settings, tap the icon in the main menu You have entered the general settings. To adjust the brightness or volume, swipe on the respective bar. -
Page 30: Training Programmes
To end the training, tap on stop. The machine slows down to a stop. → A report with your training data is displayed. To exit the report and return to the main menu, tap on x. ST10.5 Touch... - Page 31 Quick Start interface. Training report after training.
-
Page 32: Pre-Set Programmes
To end the training before the set training time has elapsed, tap on stop. The machine slows down to a stop. → A report with your training data is displayed. To exit the report and return to the main menu, tap on x. ST10.5 Touch... - Page 33 Selection interface pre-set programmes “Work Out”. Programme selection is on the left side of the display and time setting is on the right side of the display. The speed profi le for the chosen programme is shown in the centre.
-
Page 34: Target Programmes
A countdown 3-2-1 begins before the machine starts moving. For safety reasons, the machine starts at the lowest speed level before automatically returning to the set speed level before the training was paused. To end the training before the set training time has elapsed, tap on stop. The machine slows down to a stop. ST10.5 Touch... - Page 35 → A report with your training data is displayed. To exit the report and return to the main menu, tap on x. Selection interface of “Sport Center”. Time setting in the programme “Time countdown”. Training interface in the programme “Time countdown”.
-
Page 36: Floor Mode
To end the training, tap on stop. The machine slows down to a stop. → A report with your training data is displayed. To exit the report and return to the main menu, tap on x. ST10.5 Touch... - Page 37 Training interface of the fl oor mode.
-
Page 38: Custom Mode
The machine slows down to a stop. → A report with your training data is displayed. 10. To exit the report and return to the main menu, tap on x. NOTICE The set programme will be saved after completing the training. ST10.5 Touch... - Page 39 Setting interface in the custom mode. Select programme on the left wheel and set the training time on the right wheel. Set the speed levels in the centre setting option. Example of a speed profi le. Training interface in the custom mode. The current level is highlighted in blue.
-
Page 40: Media And Third-Party Apps
Please note: The system is set up only for the pre-installed apps. Do not uninstall any pre-installed apps. Do not install any additional apps as their proper functionality can not be guaranteed. The installation of other apps might cause technical issues. ST10.5 Touch... - Page 41 Depending on how you want to train, there are diff erent ways of accessing the media and apps. If you simply want to use the quick start function, you must fi rst access the Application menu and desired app and then start the training. If you want to use any of the other programmes, you must fi rst set up your programme and then go back to the Application menu.
-
Page 42: Applications And Quick Start
To end the training, tap on stop. The machine slows down to a stop. Back: tap to return to previous page Start: tap to start training Interface of chosen application before training has started. ST10.5 Touch... -
Page 43: Applications And Other Programmes
3.5.2 Applications and Other Programmes First set up the desired programme like described in the previous chapters. NOTICE For pinned apps, you can simply tap on the respective icon at the top of the screen in the programme interface. Continuously tap on Back in the upper left corner, until you have reached the main menu. -
Page 44: Wireless Technology
Make sure the wireless technology is activated on your smartphone. Search for the wireless technology device “SYMK” in the wireless technology settings of your smartphone. Tap on “SYMK” to connect the smartphone to the console. If the connection is successful, the console beeps briefl y. ST10.5 Touch... -
Page 45: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ATTENTION Make sure that the equipment is protected from moisture, dust and dirt in the selected storage location. -
Page 46: Troubleshooting, Care And Maintenance
Use a suitable chest strap (see Wrong position of chest No pulse display RECOMMENDED ACCESSORIES). strap Reposition chest strap and/or Chest strap defective or moisten electrodes battery empty Changing batteries Pulse display defective Check if pulse display by hand pulse possible ST10.5 Touch... -
Page 47: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specifi ed intervals: Part Weekly Monthly Quarterly Display console Steps... -
Page 48: Recommended Accessories
Of course, you can also contact our customer service: by telephone, e-mail, in one of our branches or via our social media channels. We will be happy to advise you! chest strap chest strap contact gel fl oor mat silicone spray ST10.5 Touch... -
Page 49: Ordering Spare Parts
The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate fi eld. Serial number: Brand / Category: Taurus / stair trainer Model Name: Stair Trainer ST10.5 Touch Article Number: TF-ST105-T... -
Page 50: Parts List
Step spacer 2 Bearing connecting shaft Wear washer Step connecting shaft Pedal 1 Chain Pedal 2 Emergency stop plate Decorative cover Belt pulley Bottom baffl e Foot pad Middle baffl e Bearing 608Z Belt Bearing 6004 Anti slip pad ST10.5 Touch... - Page 51 EVA silencing pad Outer snap ring Φ 8 Roller E-type snap ring Φ 7 Allen bolt M10 * 40 Internal serrated washer Φ 10*1.2 Allen bolt M10 * 170 Internal serrated washer Φ Outer hexagon bolt M10 * 45 8*1.2 Allen bolt M10 * 30 Standard spring washer Φ...
-
Page 52: Exploded Drawing
Exploded Drawing ST10.5 Touch... -
Page 53: Warranty
WARRANTY Products from TAURUS® are subject to strict quality control. However, if a fi tness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 54 For that reason, we also want to resolve your queries quickly and in a straightforward manner. Thus, please always keep your customer number and the serial number of the faulty equipment handy. ST10.5 Touch...
-
Page 55: Contact
CONTACT TECHNIK TEKNIK OG SERVICE CUSTOMER SUPPORT �� �� �� +49 4621 4210-900 80 90 16 50 00800 2020 2772 +494621 4210 944 +49 4621 4210-945 �� +49 4621 4210-698 �� �� info@fi tshop.dk info@fi tshop.co.uk �� technik@fi tshop.de �� ��... - Page 56 Visit us also on our social media platforms or our blog! ST10.5 Touch...
- Page 57 Notes...
- Page 58 Notes ST10.5 Touch...
- Page 60 Taurus Stair Trainer ST10.5 Touch...
