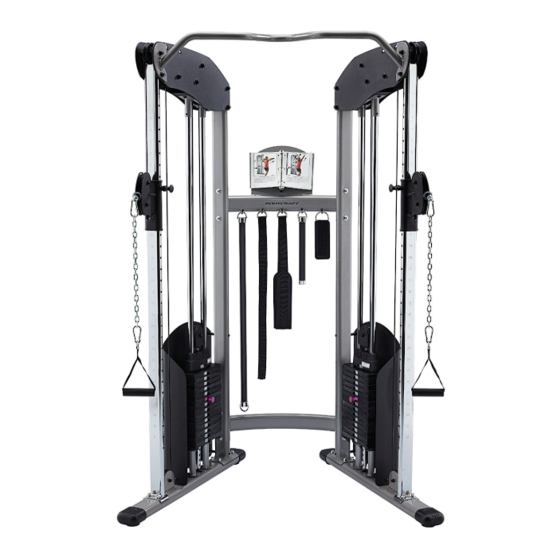

- Page 1 Assembly Instructions ~ 240 Min. 273 kg L 102 | W 142 | H 208 SEBR6245.01.03 SKU: SEBR6245 TF TF- BodyCraft Functional Trainer HFT...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing... - Page 4 Dear customer, thank you for choosing training equipment of the brand Bodycraft. Bodycraft equipment inspires with its multifunctionality and excellent quality. In terms of innovation and technology, it is one of the highest quality fitness equipment for home use. Bodycraft multi gyms, for example, offer a very wide range of exercise possibilities.
- Page 5 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
-
Page 6: General Information
GENERAL INFORMATION Technical Data Weight and Dimensions Packaging dimensions (L x W x H) and article weight (gross, incl. packaging) approx.: Box 1: 205 cm x 38 cm x 16 cm 47.8 kg / 105.4 lbs Box 2: 124 cm x 60 cm x 21 cm 65 kg / 143.3 lbs Box 3 (2x): 27 cm x 14 cm x 13 cm... -
Page 7: Personal Safety
Personal Safety DANGER ⚠ Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 8: Set-Up Place
Set-Up Place WARNING ⚠ Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 9: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. -
Page 10: Scope Of Delivery
Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. CAUTION ⚠... -
Page 12: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. Step 1: Assembly of the Base Frame Legs and Rear Upright Frames Carefully attach two end caps (38) to each of the base frame legs (1R &... - Page 14 Step 2: Assembly of the Upright Frames and the Top Frames Slide the pulley height adjusters (15R & 16L) onto the upright frames (2R & 3L). Attach the upright frames (2R & 3L) to the base frame legs (1R & 1L) with the four pre-installed 3/8”...
- Page 16 Step 3: Assembly of the Guide Rods Insert two plastic guide rod holders (24) into the outer holes of each of the base frame legs (1L & 2R). Insert two guide rods (5) into the plastic guide rod holders (24). ࣑...
- Page 18 Step 4: Assembly of the Cables and Pulleys NOTICE The following steps show the assembly on the right side of the equipment. The steps must be repeated for the left side as well. The cables and pulleys must be installed simultaneously. Fasten the ball end of the cable (27) to the pulley holder (17) with two Pulleys P1 and P2 (36) with a total of two 3/8”...
- Page 20 Step 5: Assembly of the Weight Panels Loosely attach the weight panels (10R & 11L) to the rear upright frames (4) with eight plastic studs (43), four 1/4” X 6” hex bolts (54), eight 1/4” washers (66) and four 1/4” nylon nuts (70). Loosely attach the weight panels (10R &...
- Page 21 Step 6: Accessories and Exercise Guide Placement Store the single handles (32), chin assist strap (30), triceps rope (31), sport bar (12), chains (33), ankle strap (29) and the long bar (13) by hooking them onto the top cross support (8). Attach the exercise Book (28) and the exercise book holder (26) to the top cross support (8) with one plastic stud (43), one M4 X 10L sunken head screw (59), one M4 X 40L sunken head screw (58) and two M4 nylon nuts (72).
-
Page 22: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑... -
Page 23: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. CAUTION ⚠ Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner. -
Page 24: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Cables Screw connections Pulleys and cable routing... -
Page 25: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. For training equipment like smith machines, weight benches or racks this could for example be a floor mat, which makes your fitness equipment stand more securely and also protects the floor from sweat but it could be also additional weights, handles, foot straps for leg exercises or triceps ropes. -
Page 26: Ordering Spare Parts
ORDERING SPARE PARTS Serial Number and Model Name In order to provide you with the best possible service, please have the model name, article number, serial number, exploded drawing and parts list ready. The corresponding contact options can be found in chapter 9 of this operating manual. NOTICE The serial number of your equipment is unique. -
Page 27: Parts List
Parts List Name Qty. Name Qty. BASE FRAME LEG - RIGHT TRICEP ROPE BASE FRAME LEG - LEFT SINGLE HANDLE UPRIGHT FRAME - RIGHT CHAIN UPRIGHT FRAME - LEFT SNAP HOOK REAR UPRIGHT FRAME POP - PIN GUIDE ROD PULLEY TOP FRAME - RIGHT PLASTIC BUSHING TOP FRAME - LEFT... - Page 28 3/8" BLACK WASHER 5/16" CHROMED WASHER 5/16" BLACK WASHER 1/4" WASHER 1/2" NYLON NUT 3/8" CHROMED NYLON NUT 3/8" BLACK NYLON NUT 1/4" NYLON NUT 1/2" NUT M4 NYLON NUT 1" NUT...
-
Page 29: Exploded Drawing
Exploded Drawing... -
Page 30: Warranty
WARRANTY Training equipment from BodyCraft® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. Error Descriptions Your fitness equipment is developed for long-term, high-quality training. - Page 31 Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.
-
Page 32: Contact
CONTACT TECHNIK TEKNIK OG SERVICE TECHNIQUE & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-933 �� +49 4621 4210-698 �� �� info@fitshop.dk service-france@fitshop.fr �� technik@sport-tiedje.de �� �� Åbningstider kan findes på... - Page 33 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA The Sport-Tiedje Group is Europe’s largest http://www.powerhouse-fitness.co.uk/ specialist for home fitness equipment with www.powerhouse-fitness.co.uk/blog/ currently 80 stores and one of the world’s most renowned online mail order companies for fitness equipment. https://www.facebook.com/powerhousefitness.co.uk Powerhouse Fitness is part of the Sport-Tiedje Group.Private customers order via the 25 web shops in the respective national language or have their desired equpiment assembled on...
- Page 34 Notes...
- Page 36 Functional Trainer HFT...
