Th ree forward a n d one reverse speed a re provided
for each of the fo ur ra n ges. Th is p rovides a tota l
Jf 1 2 fo rward a n d 4 reverse s peeds.
C R EEPER R A N G E (ACCESSOR Y )
A creeper range accessory with a 6 . 6 3 : 1 ratio is
ava i la b l e w h i ch provides a n add i t i o n a l 1 2 forward
and 4 reverse speeds o r a tota l of 24 forward a n d
8 reverse speeds. The co ntrol i s l o ca ted o n the
top , left- hand fro n t of the rear-a x l e center hous­
i ng . F ul l d ownward movemen t of the l ever en ­
gages t h e creeper ra nge. Ful l upward m ovement
d isengages it.
F OU R -W H EEL D R I V E ( OPT I ON A L )
The sh ift l ever for t h e fo ur-whee l d ri ve i s l oca ted
on the to p r i g h t-hand fro n t of the rear-a x l e
cen ter h o us i n g , Fig ure 1 3 .
Fu l l d ownward o n the l ever d isengages the four­
wheel d rive ( O F F ) . Ful l upward engages the
four-wheel d ri ve ( O N ) .

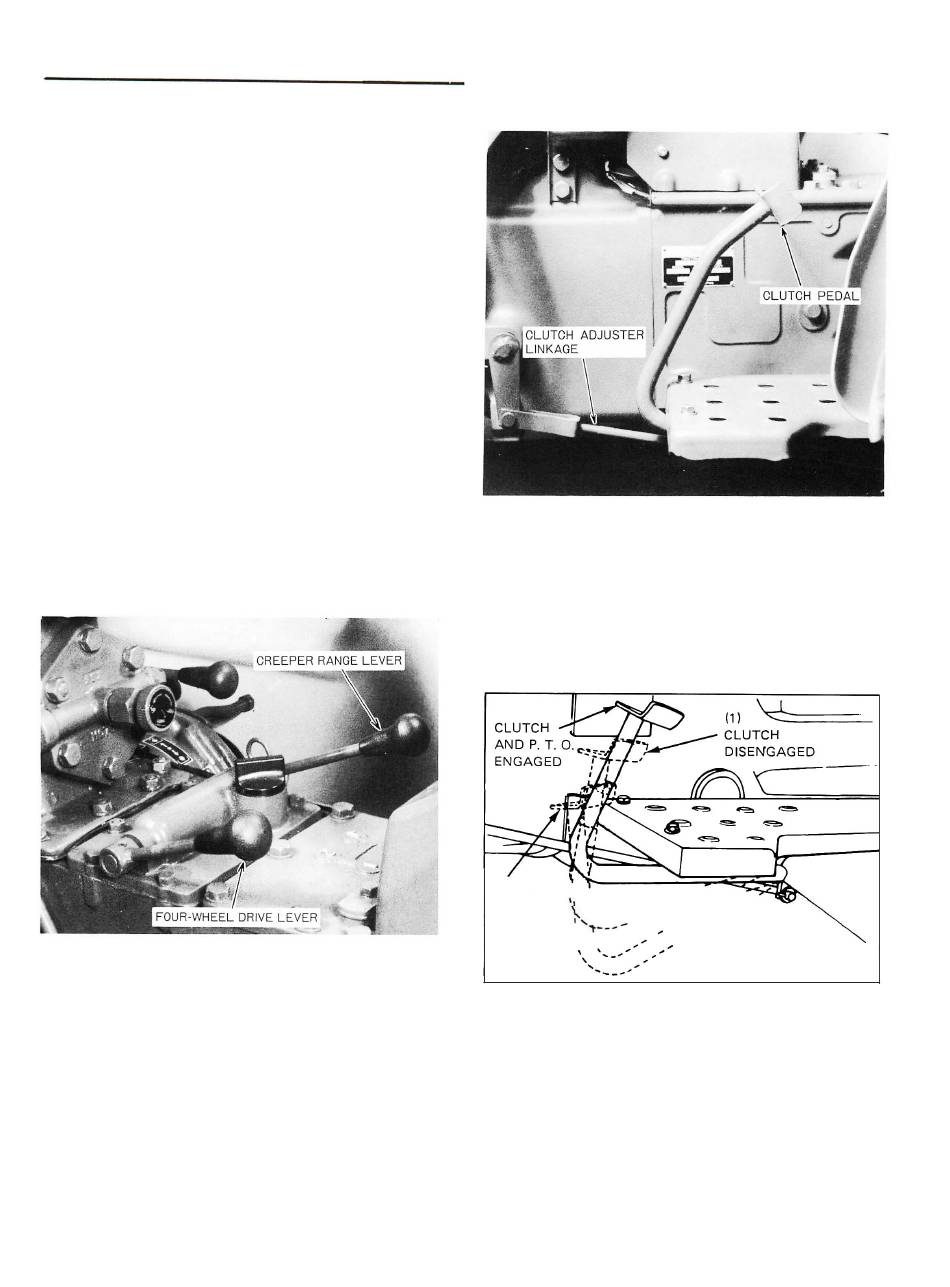

Figure 13
Four-Wheel Drive Lever (Optional)
-
C L UTCH PEDA L
The foot-o perated cl utch peda l , F i g ure 1 4 , m ust
be co m p l ete l y d e p ressed to star t the tracto r or to
sto p forward trave l and P .
Always ful ly depress the ped a l when cha n g i n g
gea r rat i os or engag i n g four-wheel d r i ve or creeper
range.
D U A L C L U T C H ( OPT I ON A L )
A d ua l cl utch option i s avai l a b l e w h i ch a l l ows
stopping tractor movement w h i l e the P. T. O .
shaft co n ti n ues rotation.
T.
O . shaft rotatio n .
CONTROL S AND INSTRUME NTS
Figure 14
Clutch Control
-
When the cl utch peda l is d ep ressed to pos i t i o n ( 1 ) ,
Figure 1 5, the tracto r m ovement sto ps w h i l e the
P. T. O . sh aft co n t i n ues ro tat i o n ( if the P. T. O . i s
engaged ) . I f the ped a l i s d epressed co m p l ete l y
( 2 ), b o t h tractor a nd P. T. O . motio n sto p .
(2)
::
_ - - - - -
CLUTCH
"
\
-
0.,
� ...
..
--
AND P. -
T.
DISENGAGED
I,
Figure 15
Dual Clutch (Optional)
-
T R ANSM I SS I ON P. T. O. C ON T R OL L EV ER
T he transm iss i o n P. T. O . con tro l l ever is sh own
in F i g ure 1 6 . The l ever en gages and d isen gages
P.
the
T. O. I f the tracto r engi n e is run n i n g ,
a l ways depress the cl utch ped a l ful l y before
movi n g the l ever. M ove the lever rearwa rd or up
to engage the P . T. O . a n d fo rward or d own to
d i sengage the P. T. O .
