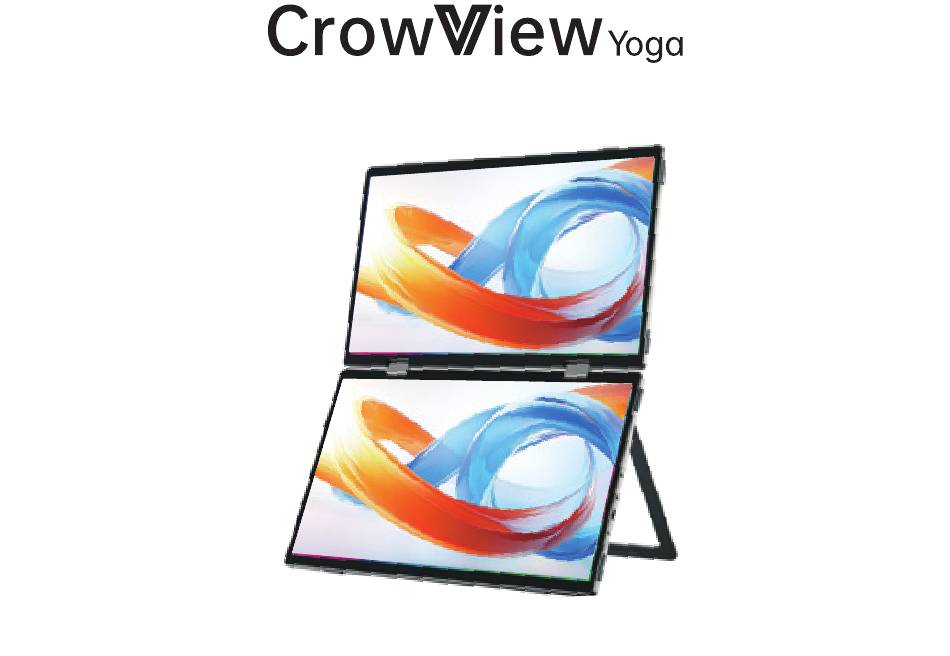

- Page 1 15.6" Foldable Dual Monitors User Manual...
-
Page 2: Product Brief
01 Product Brief CrowView Yoga offers a variety of display modes, including Clone, Alone, Link, and Presentation Mode, providing users with flexible solutions for an extended workspace and enhanced work efficiency. Equipped with 15.6 inch display Dual-screen portable design Compatible with multiple devices or game consoles... -
Page 3: Buttons And Interfaces
02 Buttons and Interfaces Mini HD1(This interface only supports activating LCD1) Mini HD2 Type-C(Full-featured) Headphone Jack Status LED(Green light: normal operating; Flashing red LCD1 light: power on, no signal input） Power Button : Press and hold for 3-5 seconds to power on or off Display Mode Button: LCD2 1.Short press the “... - Page 4 03 Connecting Compatible with devices with Type-C (full-featured) interface(USB 3.1) PC/laptop smart phone/tablet USB-C to USB-C 3.1 Gen2 Cable x1 USB-C to USB-C 2.0 Cable x1 Adapter Note: 1.Please use a cable that can support full-featured, such as USB 3.1 Gen 2 Type-C Cable. 2.If the monitor does not get enough power from a single USB Type-C port, it may cause splash screen or interruption.
- Page 5 04 Connecting Compatible with devices featuring an HD interface PC/Laptop/Game Console etc. HD to Mini HD Cable USB-C to USB-C 2.0 Cable Note: Power the monitor with AC adapter via USB-C to USB-C 2.0 cable. < 4 >...
- Page 6 04 PC and CrowView Yoga Settings WINDOWS Screen (start>settings>system>display) Rearrange displays Select one of the displays below to change its settings. Long Enter the display settings ( > > > press (or select) a monitor, and then rearrange it by dragging.
- Page 7 04 PC and CrowView Yoga Settings Open System Preferences. Select "Display" in the menu bar. Click the screen to drag to adjust the position. Click the screen to open the monitor settings. Select 'Main Display' to set the chosen screen as primary display and the other as extended display.
- Page 8 When the PC is set to Extended Mode, the display mode for CrowViewYoga is as follows: Extended Link mode Extended Clone Mode NOTE : Presentation mode requires no additional setup. In Clone Mode, simply flip the CrowView Yoga as shown in Figure 4, and the screen will switch automatically Extended Presentation Mode < 7 >...
- Page 9 04 PC and CrowView Yoga Settings Extended Alone mode Extended < 8 >...
- Page 10 04 PC and CrowView Yoga Settings When the PC is set to Copy Mode or Mirror Display the display mode for CrowViewYoga is as follows: Mirror Displays Link mode Mirror Display Clone Mirror Display Alone mode Mirror Display < 9 >...
-
Page 11: Menu Settings
05 Menu Settings BRIGHTNESS BACKLIGHT: Adjustable range: 0-100 BRIGHTNESS CONTRAST: Adjustable range: 0-100 BACKLIGHT CONTRAST ECO:STANDARD/RTS/FPS/MOVIE / GAME/TEXT STANDARD DCR: OFF/ON SHARPNESS SHARPNESS: Adjustable range: 0-4 HUE: Adjustable range: 0-100 SATURATION BRIGHTNESS SATURATION: Adjustable range: 0 -100 BRIGHTNESS: Adjustable range: 0-100 <... -
Page 12: Color Temp
05 Menu Settings COLOR TEMP COLORTEMP:SRGB/USER/WARM/COOL (RGB can only be adjusted in USER mode.) RED: Adjustable range: 0-100 GREEN: Adjustable range: 0-100 BLUE: Adjustable range: 0-100 OSD SETTING LANGUAGE: Available languages:English, French, German, Chinese, ltalian, Spanish, Portuguese,Turkish, ENGLISH Polish, Dutch, Japanese, Korean OSD H.POS: Adjustable range: 0-100 OSD V.POS: Adjustable range: 0-100 OSD TIMER: Adjustable range: 10-60... -
Page 13: Signal Source
OD : OFF/ON AUTO POWERDOWN : OFF/10/20/30/40/50/60/120/240 Note: Automatic powerdown in seconds, please press and hold the power button on the side of the display to turn Crowview Yoga on. CLONE: OFF/ON D3:HDMI SIGNAL SOURCE LOW BLUE LIGHT : 0-4... - Page 14 06 Devices with Type-C interface Smart Phone iPhone15 Pro, iPhone15 Pro Max ,iPhone16 Pro, iPhone16 Pro Max Apple Mate10, Mate10pro, Mate20, Mate20pro, Mate30, Mate30pro, Mate30RS, Mate40, Mate40pro, Mate40pro+ Huawei Mate40RS,Mate50,Mate50Pro,Mate50RS,P20,P20Pro,P20RS,P30,P30 Pro P40 ,P40 Pro,P50,P50 Pro Galaxy S8, Galaxy S8+, Galaxy S9, Galaxy S9+, Galaxy S10, GalaxyS10+, Galaxy S10e, Galaxy S20, Galaxy S20+ Samsung Galaxy S20 Ultra, Galaxy S21, Galaxy S21+, Galaxy S21 Ultra, Galaxy S22, Galaxy S22+, Galaxy S22 Ultra,Galaxy S23, Galaxy S23, Galaxy S23+, Galaxy S23 Ultra, Galaxy S24, Galaxy S24+, Galaxy S24 Ultra,Galaxy Note8, Galaxy Note9,...
- Page 15 07 Parameters Screen Size 15.6”*2 1920*1080 (FHD) Resolution Color Gamut 100% sRGB/72%NTSC Brightness 300cd/m² 16:9 Aspect Ratio 5V/3A, 9V/3A,12/2.5A, 20V/1.5A Power Supply Interface 2* Type-C (full-featured) 2* Mini HD 1* Headphone Jack Speaker 8Ω/2W 2*Speaker Size 359*221*20.7mm (Folded State) 1450g Weight <...
-
Page 16: Packing List
08 Packing List Thanks for purchasing CrowView Yoga. Please check that the following items are included when opening the box. CrowView Yoga×1 Power Adapter User Manual×1 USB-C to USB-C 2.0 Cable x1 USB-C to USB-C 3.1 Gen2 Cable x1 HD to Mini HD Cable×1 09 Customer Support If you have any questions, customer support is always stand by.
