Summary of Contents for El.Mo STRIXORF

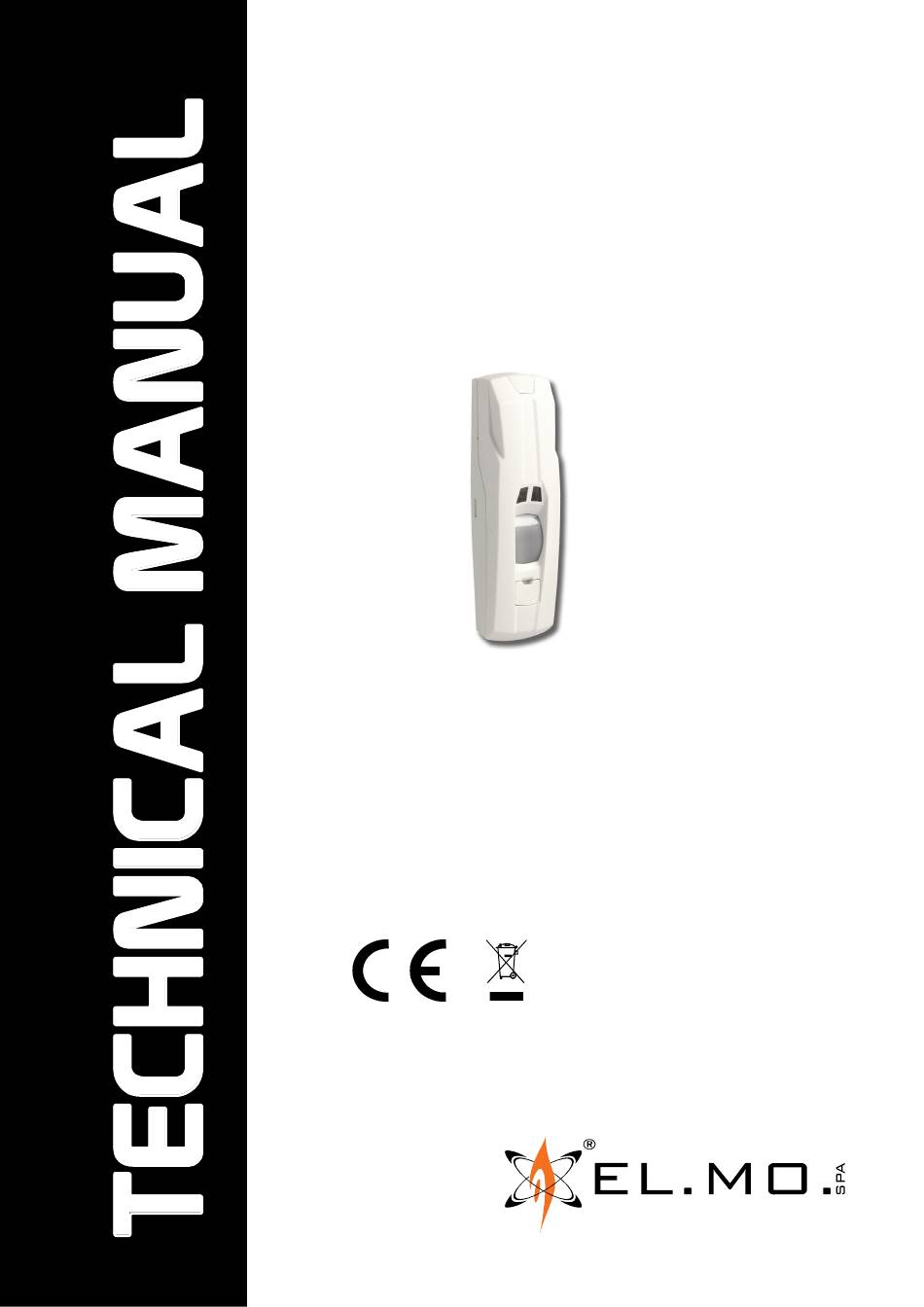

- Page 1 STRIXORF Indoor/outdoor advanced wireless double-technology detector with vertical curtain protection for intrusion detection systems 090010916 IT08020000001624...
- Page 2 EU DECLARATION OF CONFORMITY Hereby, EL.MO. S.p.A. declares that the STRIXORF radio equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: elmospa.com – registration is quick and easy.
-
Page 3: General Features
The STRIXORF detector allows achieving an efficient three-level wireless perimetral protection. Indeed, it has in- put terminals for connecting a rolling shutter detector and a magnetic contact. To make the installation process easier, STRIXORF features entry holes in its base and swivel mount, equipped with protection gaskets to prevent water penetration. -
Page 4: Technical Specifications
H 155 – L 39 – P 44 mm, 140 g with battery and no accessories. screws, rubber washers, dowels, technical manual, mod. 2ER14505 7.2 V battery, cable feed Parts supplied: gasket, rubber washers for the front screws. STRIXORF is compliant with the EN50131-5-3+A1 standard for grade 1 and environmental class III. info@elmospa.com elmospa.com... - Page 5 Mount as shown in the instructions. lation. Allows protection of the connection ca- bles. Fix to the lower part of the STRIXORF detector to allow the required tilt. Upper cap to conceal the cover mod. 2ER14505 7.2V lithi- Wall mount back cover, with closing screw.
-
Page 6: Installation
4.2 Effects of building and furniture materials The STRIXORF installation has to abide by some rules in order to avoid performance reductions caused by bad positioning. Indeed, it is very important to carefully analyse the operative area where the wireless receiver is in- stalled, the real area covered by the detectors and the proper installation position in relation to the materials used for the construction of the building. - Page 7 090010916 - STRIXORF - TECHNICAL MANUAL Some items that can modify or weaken the wireless range. 4.3 Opening, fixing and closing operations The electronic board can be damaged by electrostatic discharge. The installer shall free himself of electrostatic charges before opening the housing and he shall keep free from electrostatic charges during the whole installation or maintenance process.
- Page 8 090010916 - STRIXORF - TECHNICAL MANUAL 4.4 Installation for window protection and covering diagram 4.5 Installation for door protection and covering diagram info@elmospa.com elmospa.com...
- Page 9 STRIXORF with the (optional) swivel mount tilted at an angle of 45° as shown below (choose one according to the possible wiring). Inclinazione snodo 45° Top view of the IR covering of a STRIXORF used to protect a wall, using the optional swivel mount. info@elmospa.com elmospa.com...
- Page 10 090010916 - STRIXORF - TECHNICAL MANUAL Top view of the IR covering of a STRIXORF used to protect an outer wall, screwed to a nearby wall. This kind of installation can also be used for indoor walls, without the optional sunshield: Note: for protecting windows, the optimal height without the swivel mount is at around 1.5 m from the ground.
- Page 11 090010916 - STRIXORF - TECHNICAL MANUAL 5. WIRINGS Internal view of the board: Sequence for battery connection Have the battery cable aim outward as shown. Wedge the battery between the four lateral clips. info@elmospa.com elmospa.com...
-
Page 12: First Power-On
7.1 Setting the communication protocol STRIXORF is an accessory to wireless systems based on the HELIOS or Villeggio control units (or other expressly compatible models). The communication protocol has to be set properly in order to let the control unit understand which events are being transmitted. - Page 13 The protocol selection in made through the internal dip switch No. 2: Note: also use for Villeggio control units with firmware before version 5.0.0, and to acquire STRIXORF to a RIVERRF. Note: use for Villeggio control units with fw version 5.0.0 or higher and with expressly compatible devices.
-
Page 14: Operation
K. Exit the programming as usual. Note: if STRIXORF is programmed for the magnetic contact (Dip No.1 = ON), releasing the Tamper will send the same transmission code that will be used for the magnetic contact alarm. In this case, the rolling shutter sensor will use the same alarm transmission as the PIR sensor. -
Page 15: Visual Indications
10. HOW TO CHANGE AND DISPOSE THE BATTERY The STRIXORF detector uses a 2ER14505 2.4 Ah 7.2 V lithium battery. Replace it with a new, same model battery only. While replacing it, strictly follow the instructions below: 1. Remove the dead battery. - Page 16 The information and product features herein are not binding and may be changed without prior notice. EL.MO. SpA Via Pontarola, 70 - 35011 Campodarsego (PD) - Italy Tel. +390499203333 (R.A.) - Fax +390499200306 - Help desk +390499200426 - www.elmospa.com - info@elmospa.com...
