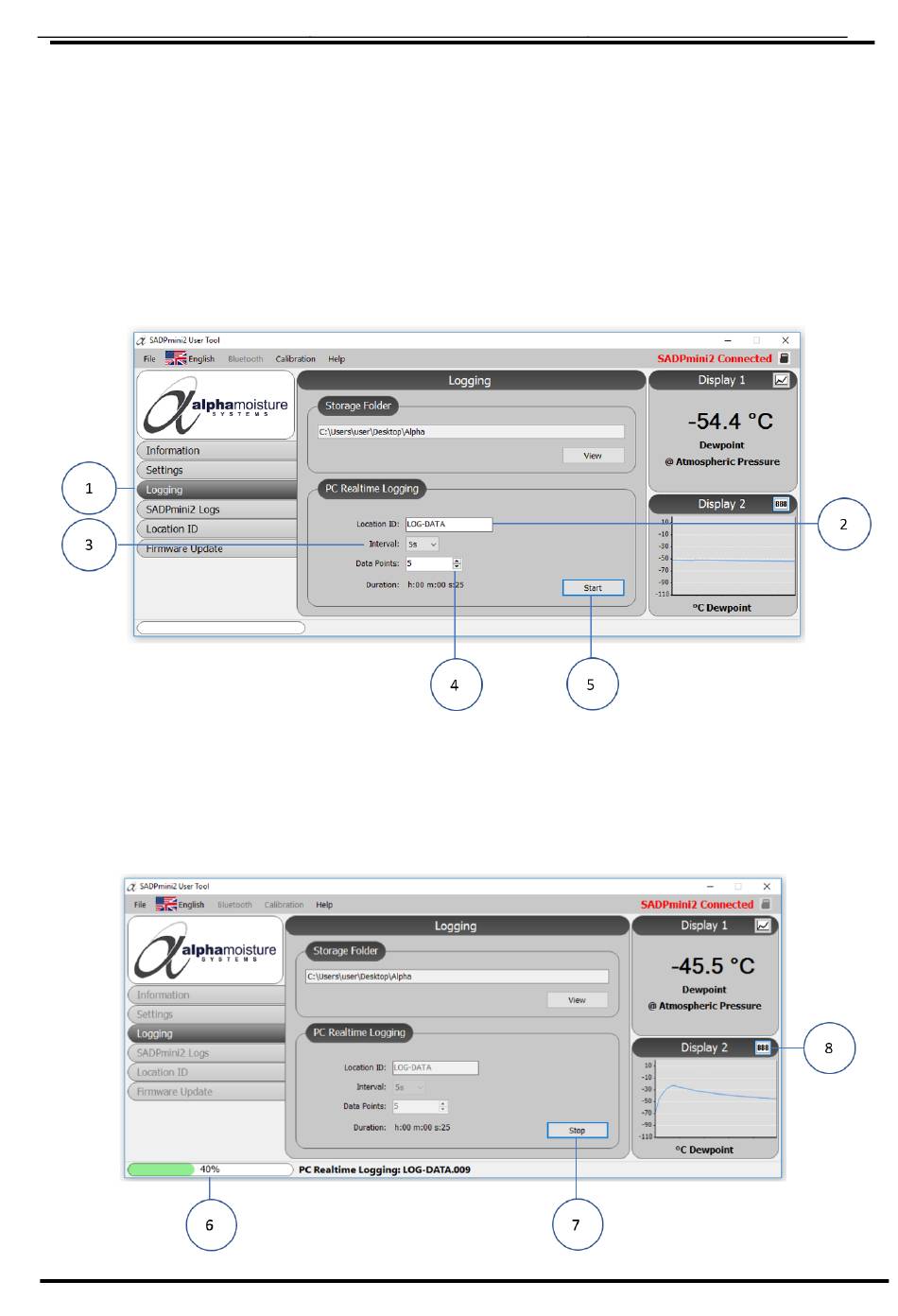

7.9 PC Realtime Logging

1. Select the Logging tab ①.
2. Enter the Location ID ② - The Location ID is the root of the name of the files which
will be saved in the PCLog_Data folder area on the PC for your instrument.
3. Enter the time Interval ③ from the drop-down menu (from 5 seconds to 1 hour)
4. Enter the number of Data Points ④ up to a maximum of 100,000 per file.
5. The logging duration time will be automatically calculated.
6. Select Start ⑤ to begin the Logging procedure. NOTE: The progress of the
procedure is displayed in the bottom left hand corner of the screen ⑥. The
procedure can be stopped at any time by selecting Stop ⑦. NOTE: Both the main
and secondary displays can be viewed either numerically or as a graph ⑧.
